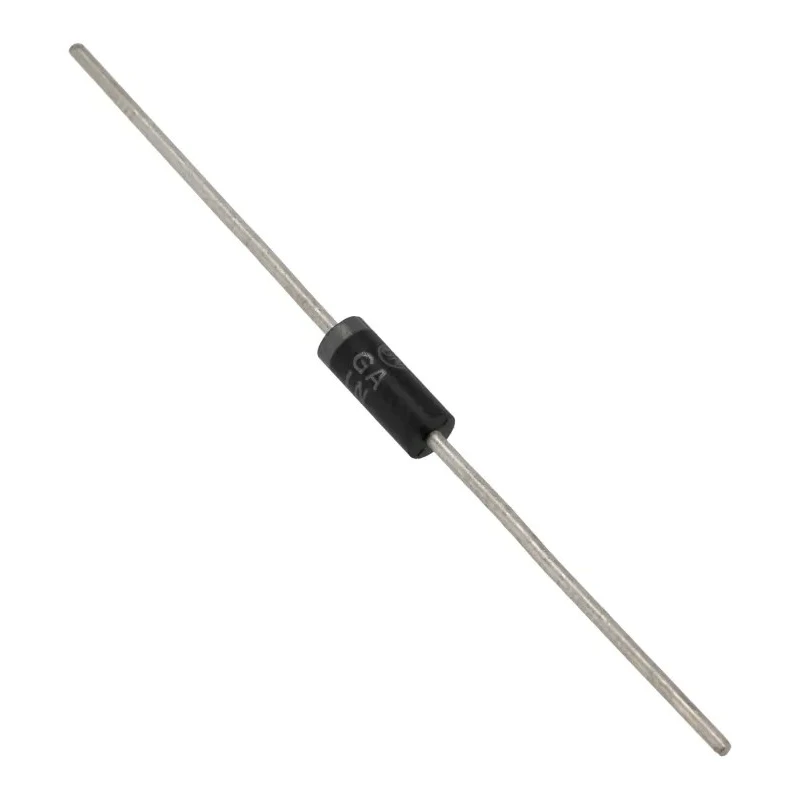

onsemi 5.1 V 5 Watt Through Hole Zener Diode Single 2-Pin DO-15 1N5338BG

Free Delivery in India | Lowest Global Shipping Charges

onsemi 5.1 V 5 Watt Through Hole Zener Diode Single 2-Pin DO-15 1N5338BG

Name: onsemi 5.1 V 5 Watt Through Hole Zener Diode Single 2-Pin DO-15 1N5338BG
Brand: onsemi
SKU: 138640
Price: 0.29 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	3.68mm
Length	8.89mm
Model	1N5338BG
Mount Type	Through Hole
Series	1N53
Maximum Operating Temperature	200°C
Package Type	DO-15
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	5W
Diode Configuration	Single
Test Current It	240mA
Maximum Reverse Leakage Current	1μA
Nominal Zener Voltage Vz	5.1V
Zener Type	Voltage Regulator
Maximum Zener Impedance	1.5Ω
onsemi 1, 5.1 V Zener Diode, Single 5 W 5 % Through Hole 2-Pin DO-15Brand	onsemi

Key Features

This single Zener diode features a 2-pin configuration suitable for through-hole mounting.
It has a nominal Zener voltage of 5.1 volts and a power dissipation of 5 watts.
The device operates with a test current of 240 mA ensuring tight voltage regulation.
Its voltage tolerance is ±5% with a maximum Zener impedance of 1.5 ohms.
The diode has a maximum reverse leakage current of 1 microampere.
Operating temperature ranges from -65°C to 200°C, suitable for harsh industrial environments.
The package dimensions are 3.68 mm in height and 8.89 mm in length for easy PCB installation.
The diode features a molded, void-free thermosetting plastic package providing corrosion resistance and electrical isolation.

Product Description

onsemi 1N5338BG is a high reliability Zener diode designed for voltage regulation applications with a nominal voltage of 5.1 V and a maximum power dissipation of 5 W delivered through a single 2-pin DO-15 through-hole package. This diode is constructed using Surmetic 40 axial-leaded technology featuring a molded, void-free transfer-molded thermosetting plastic package that ensures protection against common environmental conditions and electrical isolation.

The diode delivers superior operating characteristics due to its silicon-oxide passivated junction, featuring a tight voltage tolerance of ±5%, a maximum Zener impedance of 1.5 ohms, and minimal reverse leakage current of 1 μA. It is rated to operate over a temperature range of -65°C to 200°C, making it highly suitable for demanding industrial, commercial, and electronic circuit applications.

The device dimensions of 3.68 mm height and 8.89 mm length allow for easy integration within printed circuit boards and ensure mechanical stability during installation. The axial-leaded 2-pin configuration facilitates efficient through-hole mounting and soldering processes, supporting high production efficiency and reliability.

This single Zener diode is intended for voltage regulation and over-voltage protection in electronic circuits. The molded DO-15 package provides robust environmental protection and corrosion resistance. The diode is suitable for industrial electronic components, power management circuits, and precision voltage reference designs.

The device's electrical and mechanical stability cater to high reliability requirements in semiconductor applications. This Zener diode type belongs to the 1N53 series, recognized for its 5 W power rating and 5.1 V nominal voltage.

The onsemi 1N5338BG Zener diode is an ideal component for engineers seeking stable voltage regulation with compact packaging and durability in harsh operating environments. Browse the EnvMart Semiconductors category for more high-quality power and discrete semiconductor components from reputable manufacturers.
