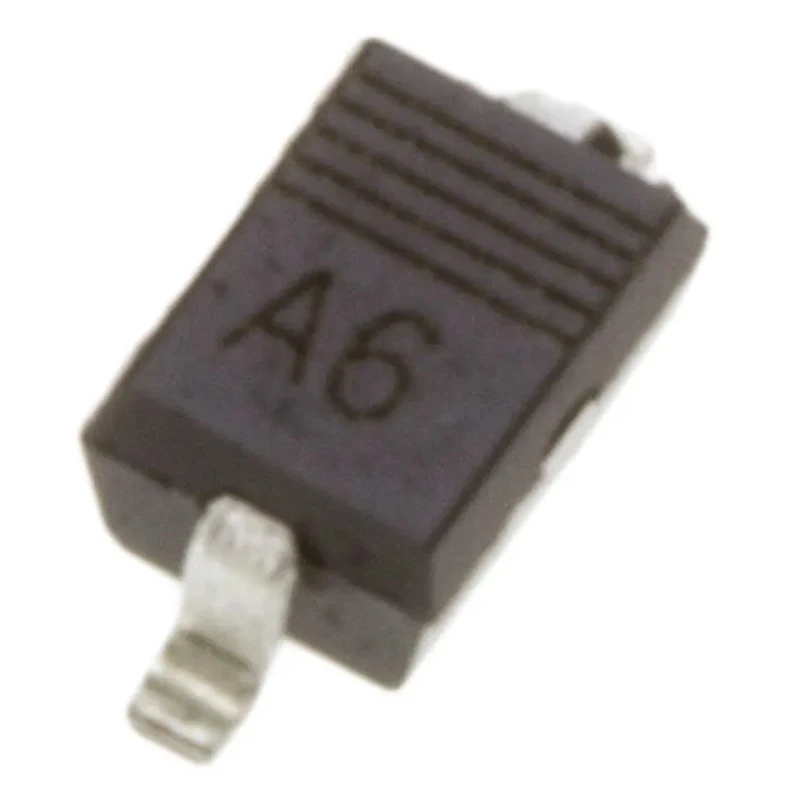

Nexperia Diode Switching Single 2-Pin SOD-323 100 V 250 mA BAS316

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Diode Switching Single 2-Pin SOD-323 100 V 250 mA BAS316

Name: Nexperia Diode Switching Single 2-Pin SOD-323 100 V 250 mA BAS316
Brand: Nexperia
SKU: 138416
Price: 0.02 USD
Availability: InStock



Category Semiconductors Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.1mm
Length	1.8mm
Model	BAS316
Width	1.35mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOD-323
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	250mA
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	50μA
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	4ns
onsemi Silicon Junction, Single, 200 mA, 2-Pin SOD-323 BAS16HT1GBrand	onsemi

Key Features

The diode provides low leakage current ideal for switching applications.
It features low capacitance and high switching speeds with peak reverse recovery time trr of 4 ns.
Designed with a maximum continuous forward current of 250 mA and peak reverse voltage of 100 V.
Its compact SOD-323 package measures 1.8mm length, 1.35mm width and 1.1mm height.
The BAS316 diode is AEC-Q101 qualified, making it suitable for automotive use.
Maximum forward voltage drop is 1.25 V with peak non-repetitive forward surge current of 4 A.
The device operates reliably up to 150°C maximum temperature.

Product Description

The Nexperia BAS316 is a high-speed switching single diode designed for general purpose electronic applications requiring fast switching performance. This diode is mounted in a compact surface-mount SOD-323 package featuring 2 pins, making it suitable for automated PCB assembly and space-constrained designs.

With a maximum continuous forward current rating of 250 mA and peak reverse voltage of 100 V, it provides robust performance in low power switching circuits.

Key features such as low leakage current, low capacitance and a fast peak reverse recovery time of up to 4 ns enhance switching efficiency, reducing losses and signal distortion in high-frequency operations.

BAS316 diodes are AEC-Q101 qualified, confirming their suitability for demanding automotive electronics environments with high reliability standards. Low leakage current optimizes energy efficiency. High switching speed (trr ≤ 4 ns) improves circuit response.

Compact SOD-323 package saves PCB board space. Rated for continuous forward current of 250 mA and peak reverse voltage of 100 V. Automotive grade with AEC-Q101 qualification for reliable use. Operates up to 150°C maximum temperature for harsh environments.

Peak non-repetitive forward surge current of 4 A ensures transient handling capability. This diode is ideal for use in industrial, automotive, communication, and consumer electronic switching applications where efficiency, size, and switching speed are critical.
