STMicroelectronics PNP Darlington Transistor 8A 100V TO-220 Package High Gain hFE750 BDX54C

Free Delivery in India | Lowest Global Shipping Charges

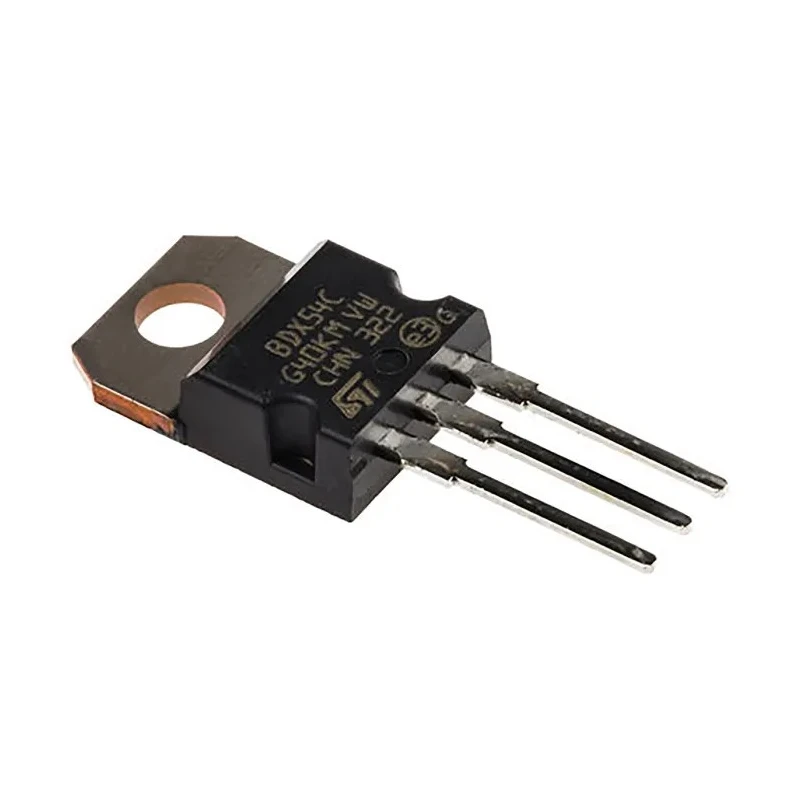

STMicroelectronics PNP Darlington Transistor 8A 100V TO-220 Package High Gain hFE750 BDX54C

Name: STMicroelectronics PNP Darlington Transistor 8A 100V TO-220 Package High Gain hFE750 BDX54C
Brand: STMicroelectronics
SKU: 138282
Price: 0.49 USD
Availability: InStock



Category Darlington Transistor Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	9.15mm
Length	10.4mm
Model	BDX54C
Mount Type	Through Hole
Series	BDX54C
Maximum Operating Temperature	150°C
Package Type	TO-220
Minimum Operating Temperature	-65°C
Pin Count	3
Maximum Continuous Collector Current Ic	8A
Maximum Collector Emitter Voltage Vceo	100V
Number of Elements per Chip	1
Minimum DC Current Gain hFE	750
Transistor Polarity	PNP
Maximum Emitter Base Voltage VEBO	5V
Maximum Collector Emitter Saturation Voltage VceSAT	2V
Maximum Collector Base Voltage VCBO	100V
Maximum Collector Cut-off Current	0.2mA
Maximum Power Dissipation Pd	60W
STMicroelectronics BDX54C PNP Darlington Transistor, 8 A 100 V HFE	750, 3-Pin TO-220Brand: STMicroelectronics

Key Features

Maximum continuous collector current of 8 amperes for robust current handling.
Collector-emitter voltage rating of 100 volts suitable for medium voltage applications.
High current gain hFE of 750 to ensure amplification efficiency.
Compact TO-220 package with through-hole mount and 3-pin configuration.
Maximum power dissipation of 60 watts supports substantial power loads.
Wide operating temperature range from -65°C to 150°C for reliability in harsh environments.
Low saturation voltage of 2 volts at collector-emitter for efficient switching.
Designed as PNP Darlington transistor for improved current gain.

Product Description

STMicroelectronics BDX54C is a PNP Darlington Transistor built for high current and voltage handling, featuring an 8A maximum continuous collector current and 100V maximum collector-emitter voltage, packaged in a TO-220 form factor for easy through-hole mounting.

This transistor delivers a minimum DC current gain (hFE) of 750, providing excellent amplification for power control and switching applications. It offers a maximum power dissipation of 60 watts, allowing it to endure substantial load conditions without deterioration.

The transistor operates efficiently within a wide temperature range from -65°C to +150°C, making it suitable for tough environments in industrial, automotive, and electronic equipment. Its pin count of three and compact dimensions (length 10.4 mm, height 9.15 mm) facilitate neat integration on printed circuit boards.

Maximum continuous collector current: 8 A. Collector-emitter voltage: 100 V. Minimum DC current gain (hFE): 750. Power dissipation: 60 W. Operating temperature range: -65°C to +150°C. Pin count: 3, TO-220 package. Polarity: PNP Darlington configuration.

This transistor is typically used in industrial and laboratory power amplifiers, motor control drivers, and electronic switching circuits. Its robust design and high gain feature make it an ideal component for demanding electrical and electronic engineering projects.

Explore a broad range of STMicroelectronics bipolar transistors and complementary discrete semiconductor components available on EnvMart for your industrial and laboratory solutions.
