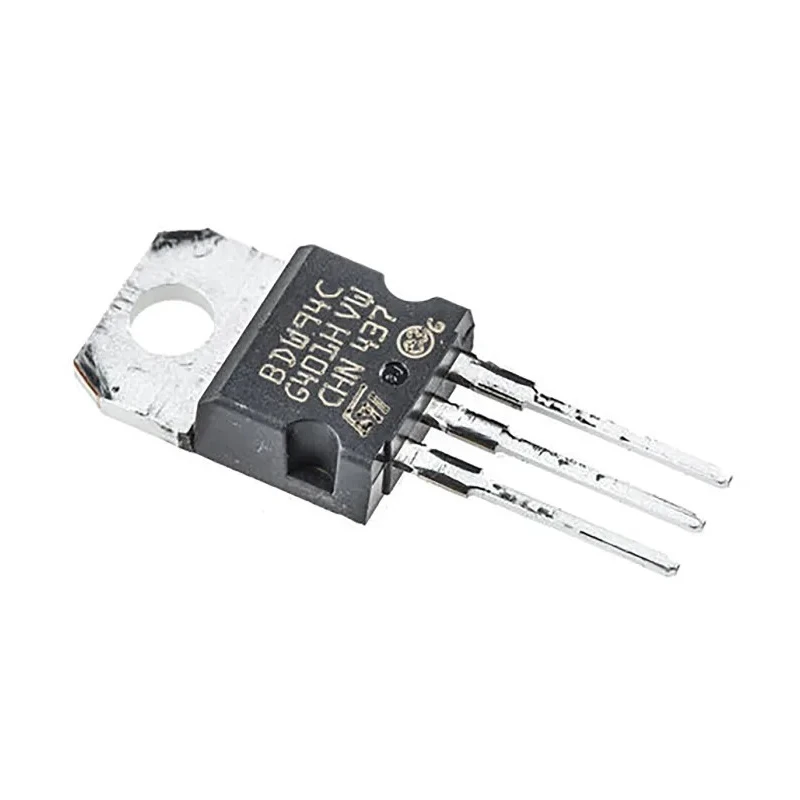

STMicroelectronics PNP Darlington Transistor 12 A 100 V 33 W TO-220 Package BDW94C

STMicroelectronics BDW94C is a PNP Darlington transistor housed in a TO-220 package, engineered for power switching and amplification tasks requiring high current and voltage ratings. With a maximum continuous collector current of 12 A and a voltage rating of 100 V between collector and emitter (Vceo), this transistor is suitable for various industrial and electronic applications.

The device offers a minimum DC current gain (hFE) of 100, ensuring strong amplification, and supports maximum power dissipation of 33 W, making it ideal for power control circuits. It is designed for through-hole mounting with a standard 3-pin configuration, enhancing ease of use in printed circuit boards.

The operating temperature range from -65°C to 150°C guarantees reliable performance under harsh environmental conditions. Additionally, the transistor maintains a low collector-emitter saturation voltage (VceSAT) of 2 V, contributing to efficient power usage during switching operations.

Typical applications include power management, voltage regulation, and switching circuits in industrial electronics, consumer devices, and power supplies. The compact physical size with a height of 9.15 mm and length of 10.4 mm enables integration in densely packed assemblies.

This transistor is not certified with automotive standards but is ideal for use in general electronics manufacturing, industrial power control, and laboratory equipment circuits. The product series BDW94C from STMicroelectronics is well-regarded for its robust performance and quality manufacturing.

Maximum continuous collector current of 12 amperes for high current handling capacity. Collector-emitter voltage rating up to 100 volts suitable for medium voltage circuits. TO-220 through-hole package with 3 pins for reliable mounting and connectivity.

Minimum DC current gain (hFE) of 100 ensures efficient amplification performance. Maximum power dissipation of 33 watts to handle significant power loads safely. Operating temperature range from -65°C to 150°C supports use in demanding environments.

PNP transistor polarity suited for specific circuit topologies. Maximum saturation voltage (VceSAT) of 2 volts ensures minimal conduction loss when switched on. Compact dimensions with height 9.15 mm and length 10.4 mm for space-efficient integration.

Designed without automotive standards, targeted for general industrial and electronic applications. Explore more Darlington Transistors and related semiconductor devices at EnvMart for industrial, electronic, and laboratory use.
