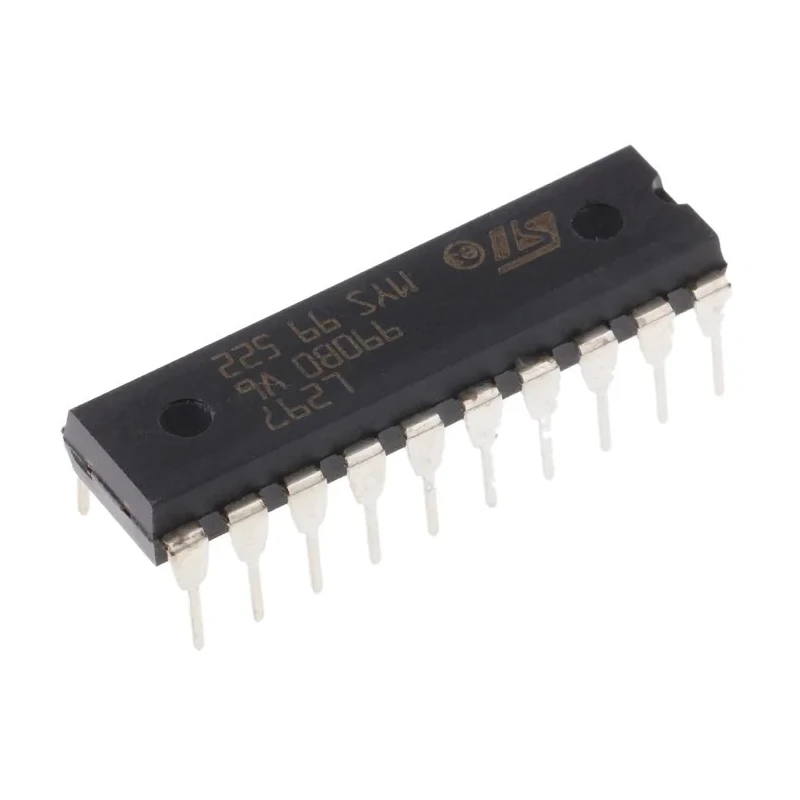

STMicroelectronics Stepper Motor Driver IC 10 V 20-Pin PDIP L297/1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 3.93mm |
| Length | 25.4mm |
| Model | L297/1 |
| Width | 7.1mm |
| Motor Type | Stepper |
| Mount Type | Through Hole |
| Series | L297 |
| Configuration | 4 Phase |
| Output Current | 2A |
| Maximum Operating Temperature | 150°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 20 |
| Maximum Collector Emitter Voltage Vceo | 10V |
| Maximum Supply Voltage | 7V |
| Minimum Supply Voltage | 4.75V |
| Supply Current | 100μA |
| Inverter Power Rating | 1W |
Key Features
- This motor driver IC supports a supply voltage range from 4.75 V to 7 V.
- It delivers an output current of up to 2 A, suitable for controlling various stepper motors.
- The IC package type is PDIP allowing easy through-hole mounting.
- Operating temperature ranges from -40°C to 150°C, ensuring reliable performance in diverse environments.
- The device features a low supply current of 100 μA for power efficiency.
- Its compact dimensions include a length of 25.4 mm, width of 7.1 mm, and height of 3.93 mm.
- The inverter power rating is 1 W, ensuring effective motor driving capability.
- The L297 series is designed specifically for stepper motor control applications.
Product Description
STMicroelectronics L297/1 is a high-performance stepper motor driver IC housed in a 20-pin PDIP package, designed for controlling 4 Phase stepper motors. Operating within a voltage range of 4.75 V to 7 V and capable of handling output currents of up to 2 A, this IC offers robust and precise motor control suitable for industrial, laboratory, HVAC, and robotics applications.
The device supports a maximum collector emitter voltage of 10 V and features a low supply current of 100 μA, contributing to energy efficient operation in embedded systems and motor control circuits. Its wide operating temperature range from -40°C to 150°C ensures dependable functionality under harsh conditions and fluctuating thermal environments.
The L297/1's PDIP form factor facilitates through-hole mounting, simplifying PCB assembly and prototyping. With compact dimensions measuring 25.4 mm in length, 7.1 mm in width, and 3.93 mm in height, it offers a space-efficient solution for motor driver circuitry.
This IC is suitable for use in industrial automation equipment, robotics, HVAC systems, and laboratory automation where precise stepper motor control is required. Its 4 Phase configuration enables smooth and accurate motor operation with reduced vibration and noise.
The inverter power rating of 1 W ensures reliable power delivery for driving stepper motors effectively. STMicroelectronics' L297 series is well known for its integration ease and robust design, making it a preferred choice in motor driver IC applications.
Set contains one piece of the STMicroelectronics L297/1 Stepper Motor Driver IC with PDIP packaging for through-hole installation. Explore the Motors & Pumps category on EnvMart for more motor drivers and related components to build or enhance your industrial and electronic control systems.
