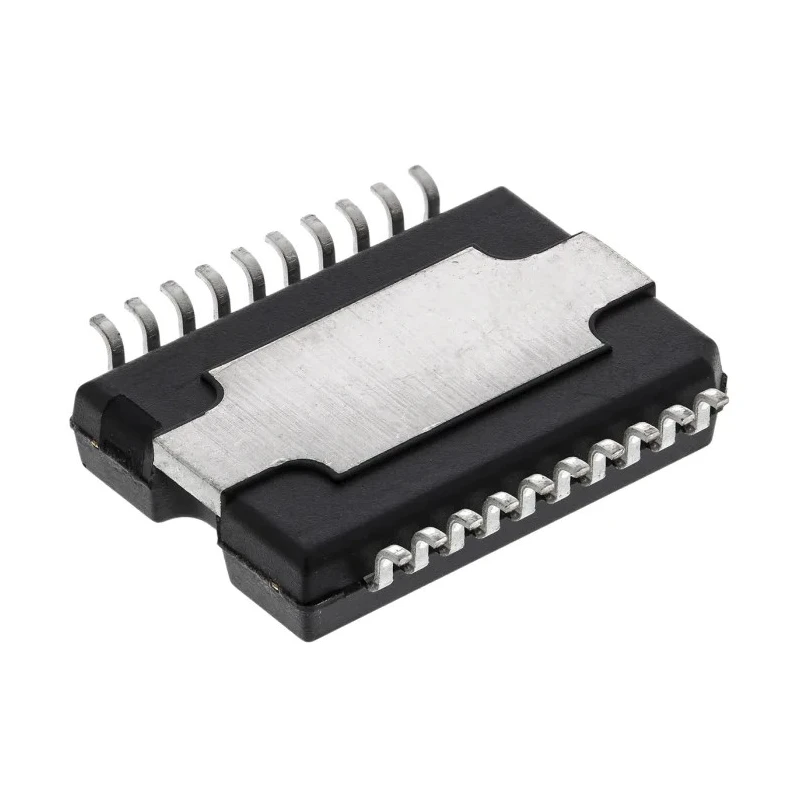

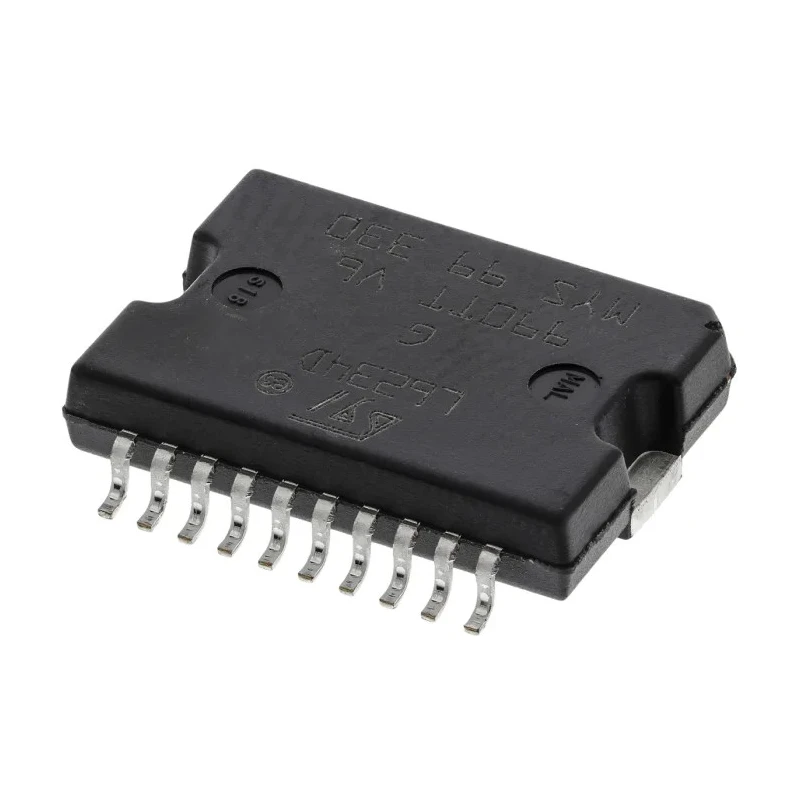

STMicroelectronics Brushless DC Motor Driver IC PowerSO Package 52 V, 4 A, 20-Pin L6234PD
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 3.3mm |
| Length | 16mm |
| Model | L6234PD |
| Width | 11.1mm |
| Motor Type | Brushless DC Motor |
| Mount Type | Surface |
| Series | L6234 |
| Configuration | Half Bridge |
| Output Current | 5A |
| Maximum Operating Temperature | 125°C |
| Package Type | PowerSO |
| Minimum Operating Temperature | -40°C |
| Pin Count | 20 |
| Maximum Collector Emitter Voltage Vceo | 52V |
| Maximum Supply Voltage | 52V |
| Minimum Supply Voltage | 7V |
| Supply Current | 6.5mA |
| Maximum IGBT Collector Current | 4A |
| Typical Switching Frequency | 150kHz |
| Inverter Power Rating | 2.3W |
Key Features
- The IC is designed for brushless DC motor control with half-bridge configuration.
- It supports a maximum IGBT collector current of 4 A and output current of 5 A.
- Operates within a supply voltage range of 7 V to 52 V to accommodate various motor requirements.
- Built in a PowerSO package with 20 pins, suitable for surface mounting.
- Typical switching frequency is 150 kHz ensuring efficient motor drive.
- Wide operating temperature range from -40°C to 125°C ensures robustness in industrial environments.
- Compact dimensions of 16 mm length, 11.1 mm width, and 3.3 mm height enable space-saving PCB designs.
- Low supply current of 6.5 mA reduces power consumption in applications.
Product Description
STMicroelectronics L6234PD is a brushless DC motor driver IC designed for efficient motor control in industrial and automation applications. It supports half-bridge configuration and delivers a maximum IGBT collector current of 4 A with an output current capability of 5 A. The IC operates over a wide supply voltage range from 7 V to 52 V, making it suitable for diverse motor control scenarios.
Featuring a compact PowerSO package with 20 pins, this motor driver is surface-mountable, allowing for efficient circuit board integration. Its typical switching frequency of 150 kHz balances performance with reduced power loss, enhancing overall system efficiency.
The device withstands a wide operating temperature range from -40°C to 125°C, suitable for harsh industrial environments. Dimensions of 16 mm length, 11.1 mm width, and 3.3 mm height enable compact and space-efficient PCB layouts. Its low supply current of 6.5 mA minimizes energy consumption during operation, and the inverter power rating of 2.3 W supports medium power motor applications.
This motor driver IC is ideal for use in industrial automation, motor control systems, robotics, HVAC equipment, and other commercial applications where precise brushless DC motor management is required. It is compatible with microcontroller, DSP, and FPGA inputs for flexible control system design.
The IC is designed for brushless DC motor control with half-bridge configuration. Supports 4 A maximum collector current and 5 A output current. Operates on supply voltages ranging from 7 V to 52 V. Packaged in a 20-pin PowerSO surface mount package.
Typical switching frequency of 150 kHz ensures efficient operation. Wide operating temperature range from -40°C to 125°C. Compact dimensions of 16×11.1×3.3 mm for PCB space optimization. Supply current of only 6.5 mA reduces system power consumption.
Inverter power rating of 2.3 W suitable for medium power motors. Designed for industrial, laboratory, manufacturing, and HVAC use cases requiring robust motor driving. Explore a wide range of Motor Driver ICs and power management solutions on EnvMart for your electronic component needs.
