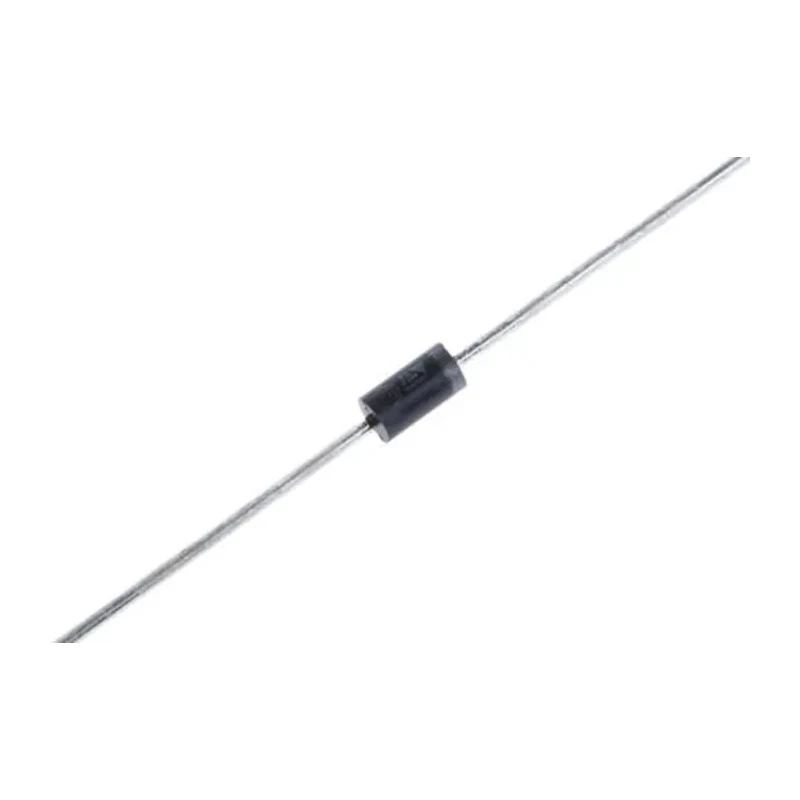

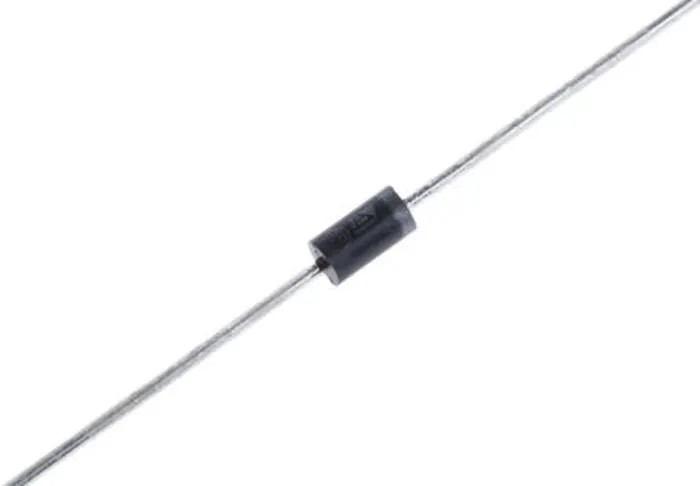

STMicroelectronics 150 V 1 A Surface Mount Schottky Diode DO-41 STPS1150
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.71mm |
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | STPS1150 |
| Width | 2.9mm |
| Mount Type | Surface Mount |
| Series | STPS1150 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 0.62V |
Key Features
- The diode supports a maximum continuous forward current of 1 ampere.
- It has a peak reverse repetitive voltage rating of 150 volts.
- The maximum forward voltage drop is typically 0.62 volts ensuring high efficiency.
- The diode is configured as a single Schottky rectifier with 2 pins.
- It operates reliably over a temperature range from -65°C to 175°C.
- The package dimensions include a length of 4.6 mm and diameter of 2.71 mm.
- The diode features a peak non-repetitive forward surge current rating of 75 amperes.
- It is not certified with automotive or other specific standards.
Product Description
STMicroelectronics STPS1150 is a surface mount Schottky diode packaged in a DO-41 form factor designed for efficient power rectification applications.
This diode offers a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 150 volts, making it suitable for power circuits requiring fast switching and low forward voltage drop.
It features a low maximum forward voltage of 0.62 volts which contributes to reduced power losses and enhanced efficiency in power supplies and converters.
The diode configuration is single with 2-pin connections, in a compact package measuring 4.6 mm in length, 2.9 mm in width, and 2.71 mm in diameter, ideal for surface mounting on printed circuit boards.
The device operates reliably in harsh industrial environments, with an operating temperature range from -65°C to 175°C and can withstand surge currents up to 75 amperes.
The STPS1150 diode is widely used in industrial electronic assemblies, laboratory equipment, power supply circuits, and automotive electronics where robust power diode performance is required without special automotive certification.
The diode supports 1 amp continuous forward current. The peak reverse repetitive voltage rating is 150 V. Low forward voltage drop of 0.62 V enhances efficiency. Compact DO-41 surface mount package with 2 pins. Wide operating temperature range from -65°C to 175°C.
Peak non-repetitive forward surge current rating of 75 A.
Choose STMicroelectronics Schottky diodes for reliable power rectification in industrial, electronics manufacturing, and power management applications. Browse our full range of semiconductor diodes and rectifiers on EnvMart for professional-grade components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 1 ampere.
The peak reverse repetitive voltage rating is 150 volts.
The maximum forward voltage drop is typically 0.62 volts, which enhances efficiency.
The package dimensions are 4.6 mm in length, 2.9 mm in width, and 2.71 mm in diameter.
It operates reliably over a temperature range from -65°C to 175°C.
The peak non-repetitive forward surge current rating is 75 amperes.
This diode is configured with 2 pins.
It is configured as a single Schottky rectifier.
This model is commonly used in industrial electronic assemblies, laboratory equipment, and power supply circuits.
The peak reverse current is rated at 1 milliampere.
The country of origin for this diode is India.
The height of the diode is 2.45 mm.
