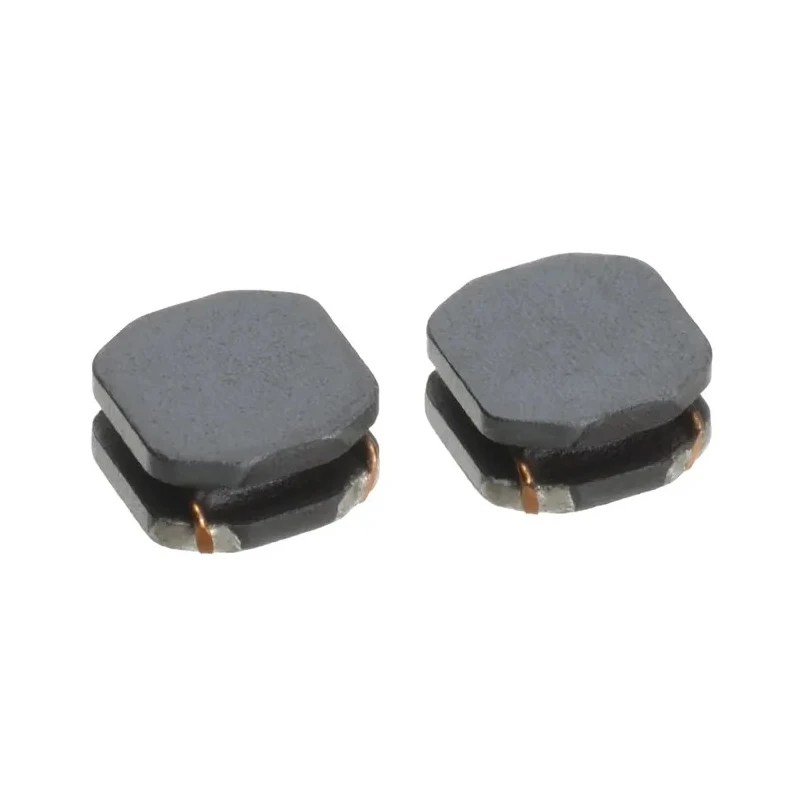

TDK Shielded Surface Mount Inductor with Ferrite Core 10 μH ±20 % 940 mA Idc VLS3015ET-100M
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 1.5mm |
| Length | 3mm |
| Model | VLS3015ET-100M |
| Depth | 3mm |
| Packaging | Tape & Reel |
| Series | VLS-E |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 3015 |
| Maximum DC Current | 940mA |
| Pin Count | 2 |
| Maximum DC Resistance | 288mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Inductor Construction | Shielded |
Key Features
- The inductor features a maximum DC current rating of 940 mA.
- Constructed with a high magnetic shield for compatibility with high-density mounting.
- Package/case size is 3015 with a length of 3 mm, height 1.5 mm, and depth 3 mm.
- Features low maximum DC resistance of 288 mΩ for efficient operation.
- Designed to operate between -40°C to 105°C operating temperature range.
- Termination style is soldered with a moulded shielded construction.
- Complies with RoHS standards ensuring environmental compliance.
- Ideal for smartphones, tablets, HDDs, SSDs, DVCs, DSCs, mobile displays, portable gaming devices, and compact power supply modules.
Product Description
TDK VLS3015ET-100M shielded surface mount inductor is designed for power circuit applications requiring efficient electromagnetic compatibility and high-density mounting solutions. This inductor utilizes a ferrite core and features a shielded construction that minimizes magnetic interference, enhancing performance in compact electronic devices.
With a precise inductance value of 10 μH and a tolerance of ±20%, the component supports a maximum DC current of 940 mA, making it suitable for various power supply and filter circuits. The compact 3015 package (3 mm length by 1.5 mm height and 3 mm depth) enables its integration into space-constrained PCB layouts.
The inductor is constructed with solder termination style and moulded design, ensuring mechanical stability and reliable electrical connection in manufacturing processes.
Operating temperature ranges from -40°C to 105°C, making it robust for automotive, consumer electronics, and industrial environments. The maximum DC resistance is 288 mΩ, maintaining power efficiency.
The inductor features a maximum DC current rating of 940 mA. Constructed with a high magnetic shield for compatibility with high-density mounting. Package/case size is 3015 with a length of 3 mm, height 1.5 mm, and depth 3 mm.
Features low maximum DC resistance of 288 mΩ for efficient operation. Designed to operate between -40°C to 105°C operating temperature range. Termination style is soldered with a moulded shielded construction. Complies with RoHS standards ensuring environmental compliance.
Ideal for smartphones, tablets, HDDs, SSDs, DVCs, DSCs, mobile displays, portable gaming devices, and compact power supply modules.
This inductor series from TDK is a professional-grade magnetic power choke suitable for applications in consumer electronics, telecommunications, and compact power supply modules. Its shielded design supports noise suppression and electromagnetic interference reduction, vital for maintaining signal integrity in modern electronics manufacturing.
Explore more Surface Mount Inductors and electronic components on EnvMart designed for industrial, laboratory, and manufacturing use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10 μH with a tolerance of ±20%.
It has a maximum DC current rating of 940 mA, suitable for various power supply applications.
This inductor has a package size of 3015, with dimensions of 3 mm in length, 1.5 mm in height, and 3 mm in depth.
The maximum DC resistance is 288 mΩ, which contributes to its efficient operation.
It is designed to operate within a temperature range of -40°C to 105°C.
The termination style of this model is soldered, ensuring a reliable electrical connection.
This inductor features a ferrite core and a shielded construction to minimize magnetic interference.
It is packaged in tape and reel format, facilitating automated assembly processes.
The inductor complies with RoHS standards, ensuring environmental compliance.
This model is ideal for use in smartphones, tablets, HDDs, SSDs, mobile displays, and compact power supply modules.
The VLS3015ET-100M has a pin count of 2, suitable for various circuit designs.
This inductor is part of the VLS-E series, designed for high-density mounting solutions.
