JST SDK 10 Way Push-Push SD MultiMedia Memory Card Connector Snap-In SDK-9BNS-K13-GS-TB(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

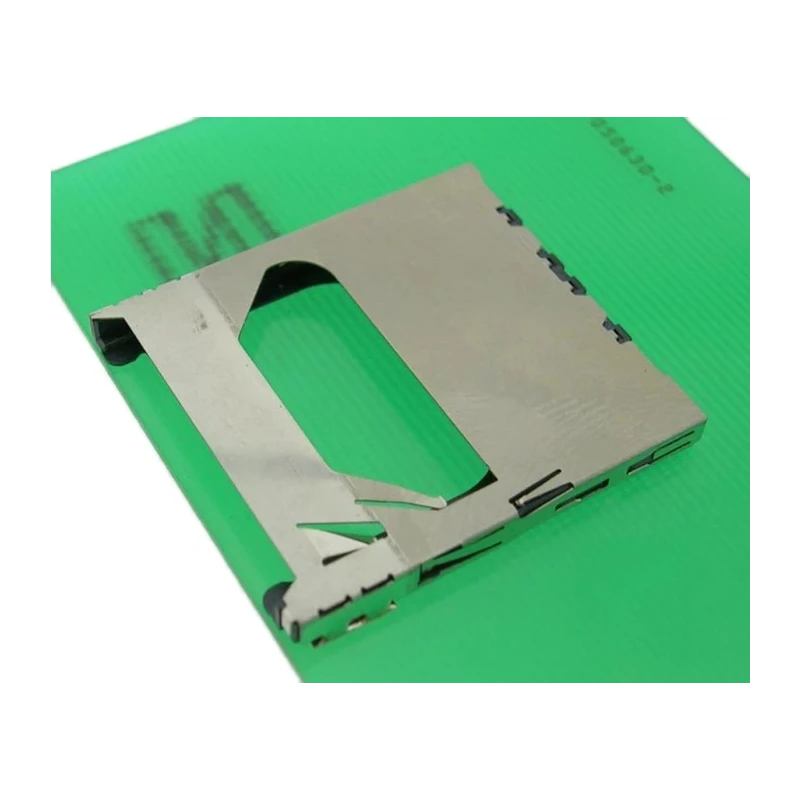

JST SDK 10 Way Push-Push SD MultiMedia Memory Card Connector Snap-In SDK-9BNS-K13-GS-TB(LF)(SN)



Category Memory Card Connector Brand JST Condition New

Specifications

Country of Origin	Indonesia
Brand	JST
Orientation	Straight
Model	SDK-9BNS-K13-GS-TB(LF)(SN)
Gender	Female
Mount Type	Surface
Housing Material	Resin
Contact Material	Copper Alloy
Series	SDK
Termination Type	Snap-In
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Gold over Nickel
Number of Contacts	10
Card Type	SD, MultiMedia
Insertion/Removal Method	Push-Push

Key Features

Features a straight orientation with a pitch of 2.5mm for precise connectivity.
Constructed with a resin housing and a copper alloy contact material plated with gold over nickel for durable performance.
Utilizes a snap-in termination type ensuring secure installation.
Supports operating temperatures ranging from -25°C to 85°C, suitable for varied environments.
Includes a push-push insertion and ejection mechanism for efficient card handling.
Incorporates a write protection switch and card detection feature for functional safety.
Designed to be robust and low profile, optimizing PCB space usage.
Manufactured in Indonesia adhering to the SDK series standards by JST.

Product Description

The JST SDK-9BNS-K13-GS-TB(LF)(SN) Memory Card Connector is a 10-way female connector specifically engineered for SD and MultiMedia cards. Designed by JST, this SDK series SMT SD card connector provides a low-profile, compact, and robust solution ideal for modern electronic devices requiring durable and precise memory card interfaces.

This connector features a push-push mechanism enabling smooth insertion and ejection of cards, enhancing user convenience and device reliability. The straight orientation with a 2.5mm pitch ensures accurate pin alignment, while the snap-in termination type supports secure mounting to PCB surfaces.

Constructed with a resin housing and copper alloy contacts plated with gold over nickel, the connector combines enhanced corrosion resistance with excellent conductivity. It reliably operates across a temperature range from -25°C to 85°C, suitable for diverse industrial, commercial, and consumer electronics environments.

The design integrates practical features like a write protection switch and card detection, providing functional advantages in controlling data write permissions and card presence monitoring.

As part of the SDK series, this memory card connector delivers a balance of space-saving, durability, and efficient card management. It is well-suited for applications in electronics manufacturing, computing, and embedded system projects requiring SD/MMC connectivity.

Features a straight orientation with a pitch of 2.5mm for precise connectivity. Constructed with a resin housing and a copper alloy contact material plated with gold over nickel for durable performance. Utilizes a snap-in termination type ensuring secure installation.

Supports operating temperatures ranging from -25°C to 85°C, suitable for varied environments. Includes a push-push insertion and ejection mechanism for efficient card handling. Incorporates a write protection switch and card detection feature for functional safety.

Designed to be robust and low profile, optimizing PCB space usage. Manufactured in Indonesia adhering to the SDK series standards by JST. Explore more components in the Memory Card Connector category on EnvMart to find compatible connectors and accessories from leading brands.
