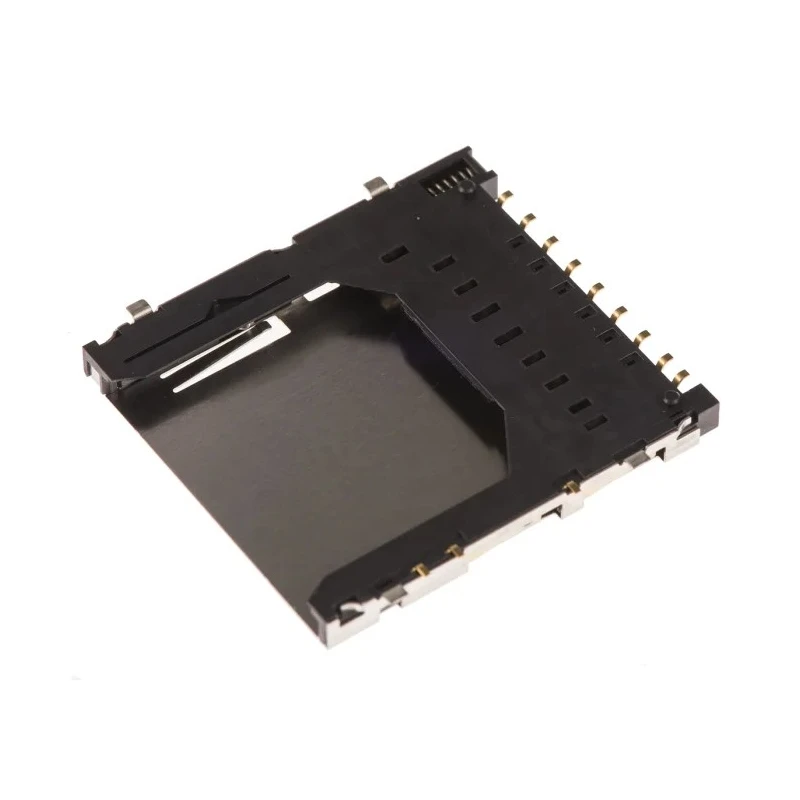

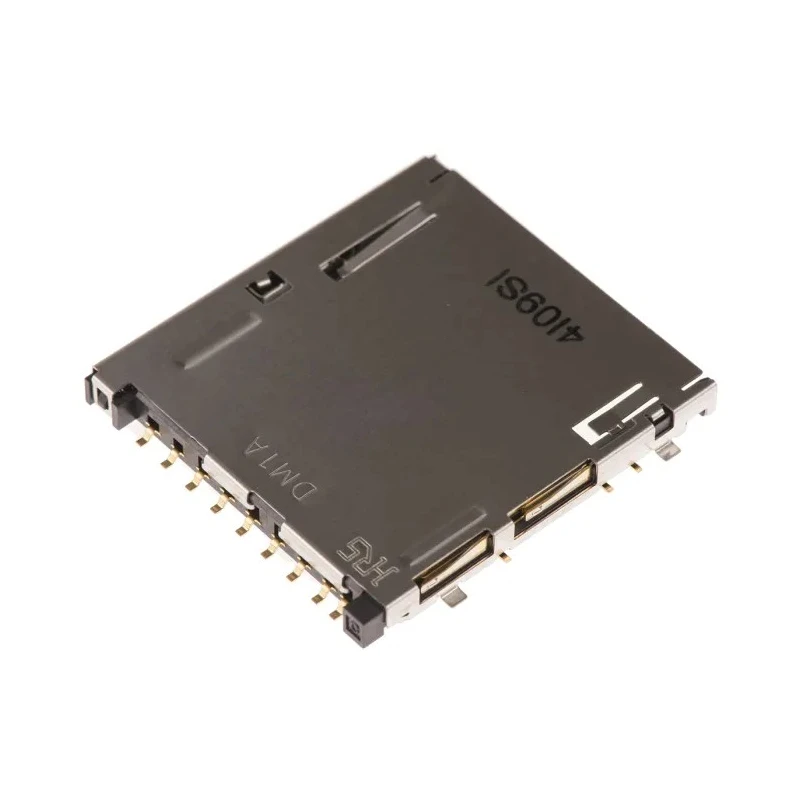

Hirose 9 Way Right Angle Push-Push SD Memory Card Connector Solder DM1AA-SF-PEJ(82)

Hirose DM1AA-SF-PEJ(82) is a 9 Way Right Angle Push-Push SD Memory Card Connector with solder termination designed for reliable and secure card insertion and removal in electronic devices.

This connector features a push in, push out ejection mechanism that ensures smooth card operation, along with a robust metal cover at the back to endure card insertion forces up to 400N, protecting it against physical impacts.

The moderate pull out force of 4N safeguards the connector from accidental card release damage. Its built-in lock function holds the card securely in place, while the integrated card detection and write protection switches provide essential data safety features.

Constructed with phosphor bronze contacts plated with gold, the connector offers excellent conductivity and corrosion resistance. The stainless steel housing adds mechanical strength and durability, suited for challenging environments.

It is designed for surface mount on PCBs with a right angle orientation and a pin pitch of 2.5mm, making it ideal for use in compact and high-density electronic assemblies. Operational temperature spans from -25°C to 85°C, ensuring reliable performance across a wide range of conditions.

Reliable push-push ejection mechanism for convenient card operation. High tolerance to card insertion force up to 400N. Protective moderate pull-out force of 4N avoids damage. Secure card hold with built-in locking mechanism.

Integrated card detection switch for presence sensing. Write protection switch prevents accidental data loss. Phosphor bronze contacts with gold plating for superior signal integrity. Robust stainless steel housing ensures mechanical durability.

Surface mount termination suitable for PCB soldering. Right angle orientation supporting space-saving PCB design.

This Memory Card Connector is suitable for Notebook PCs, digital cameras, PDAs, audio video equipment, and other devices utilizing SD I/O cards. It meets industrial and electronic component standards and is manufactured in Indonesia.
