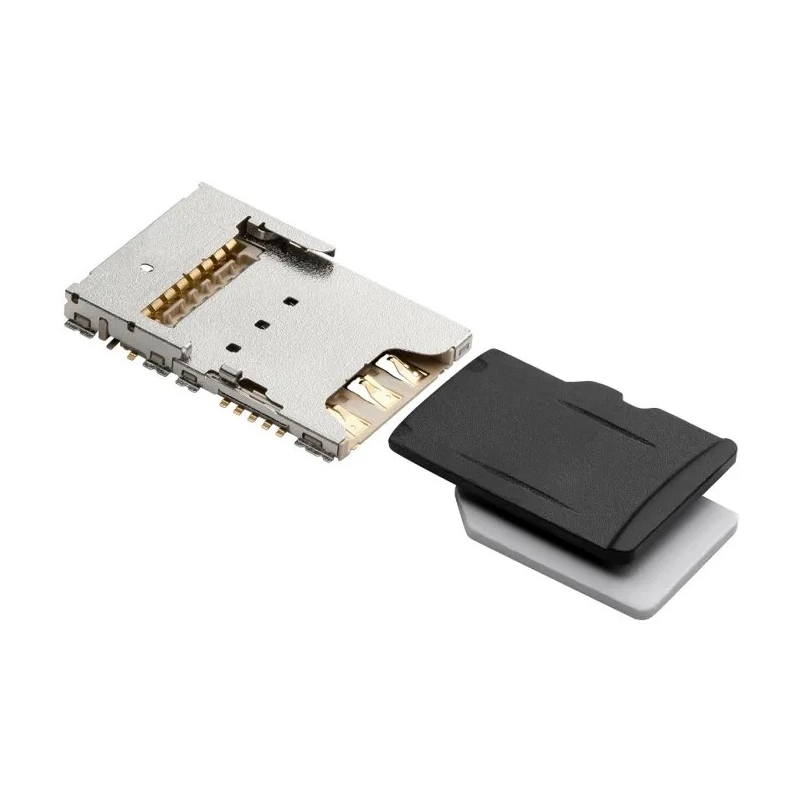

Molex 6 Way Push Pull Nano SIM MicroSD Memory Card Connector, Surface Mount, Solder Termination 104239-1430

Molex 104239-1430 is a 6 Way Push Pull Nano SIM and MicroSD Memory Card Connector designed for surface mounting on printed circuit boards. This connector features a space-saving stacked design that supports two card formats in a single compact unit measuring approximately 12.2 mm in length, 2.05 mm in width, and 17.9 mm in depth, optimizing PCB footprint where space is limited.

The connector utilizes a push-pull insertion and removal method facilitated by a pull-lever ejection mechanism, allowing cards to be inserted or removed without powering down the device. This feature helps maintain device uptime and improves user convenience.

Contacts are made from copper alloy with gold plating over nickel, ensuring excellent electrical conductivity and resistance to corrosion for long-term reliability. The housing is constructed from durable liquid crystal polymer, providing resistance to high temperatures and chemicals. The operating temperature range of -40°C to 85°C supports demanding industrial and commercial environments.

Additional features include polarised connector ports to prevent incorrect card insertion, anti-stubbing contacts for smooth card engagement, and hold-down posts that firmly secure the connector to the PCB. These design elements are critical for maintaining robust connections in mobile equipment and computing applications.

Molex's 104239-1430 memory card connector is suitable for a variety of industrial, commercial, and electronic applications where compact and reliable memory card interfacing is required. Its precise construction and high-performance materials ensure dependable operation in mobile devices, embedded systems, and other electronics requiring MicroSD and Nano SIM combo card support.

This connector combines two card formats in one unit, optimizing PCB design. The pull-lever system facilitates easy card removal without device shutdown. Copper alloy contacts with gold plating ensure reliable electrical performance.

Liquid crystal polymer housing withstands extreme temperatures and harsh chemicals. Polarization and anti-stubbing features prevent connector damage and misalignment. Secure surface mounting guaranteed by hold-down posts for rugged applications.
