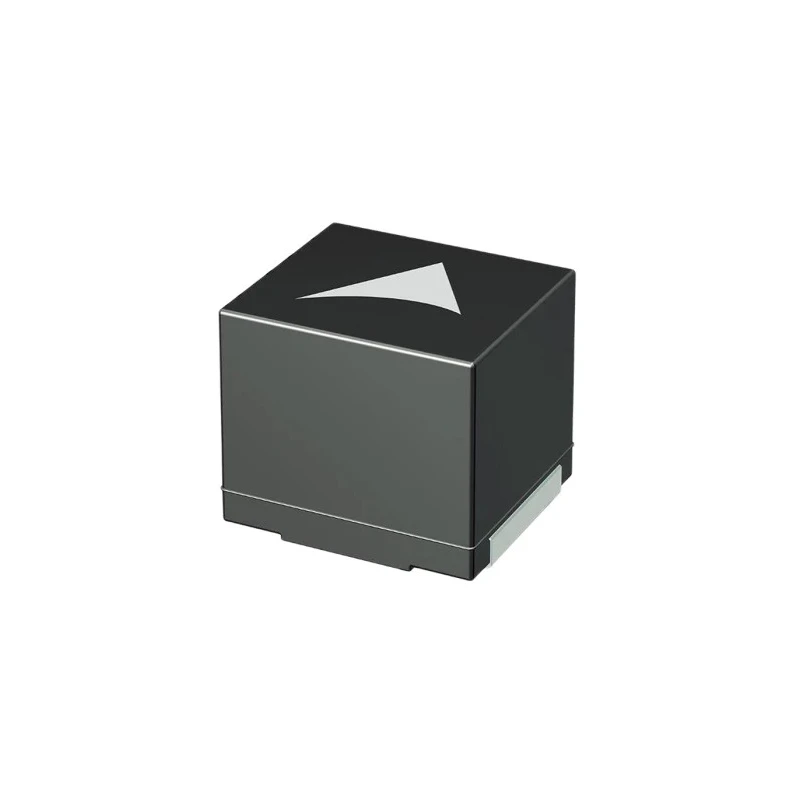

TDK SIMID 2220 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 10 mH ±10% 46 mA Idc Q:25 B82442T1106K050

TDK B82442T1106K050 SIMID 2220 Unshielded Wirewound Surface Mount Inductor is designed with a ferrite core to deliver a high inductance value of 10 mH with ±10% tolerance and a rated DC current of 46 mA. This surface mount inductor features a wirewound construction and is built to fit the 2220 package case dimensions, measuring 5.6 mm in length, 5 mm in height, and 5 mm in depth.

Manufactured to meet the stringent automotive standard AEC-Q200, it ensures high reliability under harsh environmental conditions. The inductor operates across a wide temperature range from -55°C to 150°C, making it suitable for automotive, telecommunications, consumer electronics, and industrial applications that require effective filtering, coupling, and decoupling of supply voltages.

The device offers a maximum DC resistance of 112 Ω and a high minimum quality factor of 25, with a maximum self-resonant frequency of 500 kHz to support a stable performance in SMPS and DC/DC converters. It uses solder termination style and is RoHS compliant as well as halogen-free, supporting environmentally friendly manufacturing.

B82442T SIMID series inductors have wirewound construction on a ferrite drum core with laser-welded winding and flame-retardant moulding. This product is supplied in tape and reel packaging format, ideal for automated surface mount technology (SMT) assembly processes.

Applications include filtering of supply voltages, coupling/decoupling in switch-mode power supplies, automotive electronics, telecommunications, and consumer and industrial electronics.

Wirewound construction delivers stable high inductance performance. Recommended for automotive-grade applications with AEC-Q200 qualification. Wide operating temperature range of -55°C to 150°C for versatility. RoHS and halogen-free compliance promotes environmentally safe usage.

Tape and reel packaging supports high-efficiency automated assembly. Ferrite core ensures magnetic efficiency and low DC resistance. Suitable for use in power supply filtering and signal conditioning. Quality factor of 25 helps maintain signal integrity at operating frequencies.

Compact 2220 package size compatible with surface mount designs. Meets industry requirements for reliability and performance in demanding environments. Discover more Surface Mount Inductors at EnvMart to support diverse electronics and power system needs.
