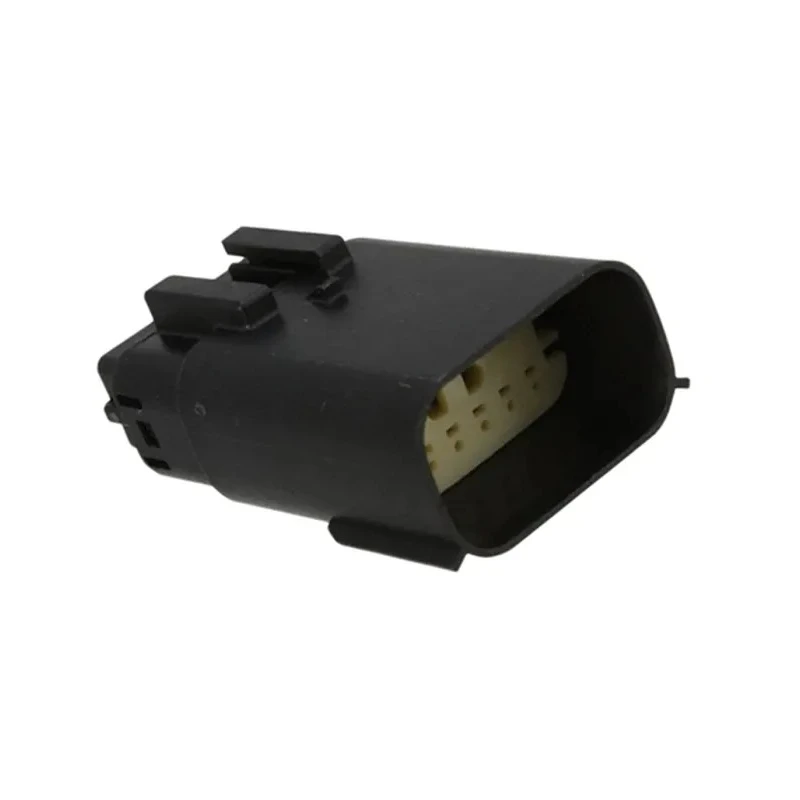

Molex MX150 Automotive Connector Male Black Cable 12 Way Crimp Termination 33482-1201

Name: Molex MX150 Automotive Connector Male Black Cable 12 Way Crimp Termination 33482-1201
Brand: Molex
SKU: 136086
Price: 1.91 USD
Availability: InStock



Category Automotive Connector Brand Molex Condition New

Specifications

Country of Origin	China
Brand	Molex
Colour	Black
Current	22A
Height	22.23mm
Depth	54.45mm
IP Rating	IP67
Width	29.54mm
Gender	Male
Mount Type	Cable
Housing Material	Modified Polystyrene Alloy
Contact Material	Copper Alloy
Series	MX150
Termination Type	Crimp
Maximum Operating Temperature	125°C
Sub Type	Automotive Connector Housing
Minimum Operating Temperature	-40°C
Number of Rows	2
Contact Plating	Tin
Number of Contacts	12
Meets IPx9K when the following configuration is used	With CPA, With Backshell, With Convoluted Conduit

Key Features

Compact two-row connector housing with 12 contacts ensures efficient space usage.
Supports a current rating of 22A suitable for mid power automotive applications.
Crimp termination type provides secure and durable cable connections.
Constructed with corrosion-resistant copper alloy contacts plated with tin.
Housing made of modified polystyrene alloy with IP67 rating for waterproof protection.
Operates reliably between -40°C and 125°C for extreme automotive environments.
Connector features a cable mount type and black color for easy integration.
Incorporates connector retention features to prevent loosening under vibration.

Product Description

Molex 33482-1201 MX150 automotive connector male black cable 12 way crimp termination is designed for robust wire connections in automotive and industrial environments. The compact 3.5 mm pitch, two-row housing with 12 contacts provides a reliable electrical interface for sensing components and wiring assembly under the bonnet.

The connector supports a current rating of 22A with crimp termination, ensuring durability and electrical performance. The copper alloy contacts with tin plating provide corrosion resistance suitable for moist or harsh conditions. The housing material is a modified polystyrene alloy that meets an IP67 ingress protection rating, offering waterproof and dust-tight sealing for protection in demanding applications.

Operating temperature ranges between -40°C and 125°C make it suitable for under-hood and on-engine use cases requiring stability in extreme temperatures. Its cable mount type and black color allow for seamless integration with existing automotive wiring harnesses. To improve handling and assembly, the connector features a grommet cap and retention mechanism to prevent loosening caused by vibration.

Popular applications include industrial machines, forklifts, and recreational vehicles where reliable power and signal connectivity are critical. This MX150 series connector meets high USCAR-2 Class 3 standards for sealed automotive receptacle and blade connectors, providing resistance against fluids and submersion. The connector seals achieve IEC IP6K7 and IP67K9K protection levels for waterproofing and strain relief at the wire interface.

Compact two-row 12 contact connector housing. Corrosion-resistant copper alloy contacts with tin plating. Operation from -40°C up to +125°C temperature range. IP67 rated sealed housing for waterproof performance. Crimp termination for secure cable connections.

Connector retention to withstand vibration and movement. Suitable for automotive, industrial, and recreational vehicle wiring. Meets USCAR-2 Class 3 requirements for sealed connectors.

This Molex MX150 Automotive Connector is a high-quality component compatible with mid-power electrical automotive systems. Its robust design, high ingress protection, and performance guarantees make it ideal for use in harsh, high-vibration environments. Browse more automotive electrical connectors in EnvMart’s electronics components category to find compatible parts and accessories for your wiring requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Molex MX150 automotive connector supports a current rating of 22A, making it suitable for mid-power automotive applications.

This connector operates reliably between -40°C and 125°C, suitable for extreme automotive environments.

It features a crimp termination type, providing secure and durable cable connections.

The housing of this connector has an IP67 rating, ensuring waterproof and dust-tight protection.

The contacts are made of corrosion-resistant copper alloy with tin plating, and the housing is constructed from modified polystyrene alloy.

This model features a compact two-row housing with 12 contacts.

The connector has a height of 22.23mm, a width of 29.54mm, and a depth of 54.45mm.

It is suitable for use in automotive, industrial machines, forklifts, and recreational vehicles where reliable power and signal connectivity are critical.

Yes, it incorporates connector retention features to prevent loosening under vibration.

Yes, it meets USCAR-2 Class 3 requirements for sealed automotive receptacle and blade connectors.

This model is a male connector, designed for cable mounting.

The Molex MX150 automotive connector is manufactured in China.
