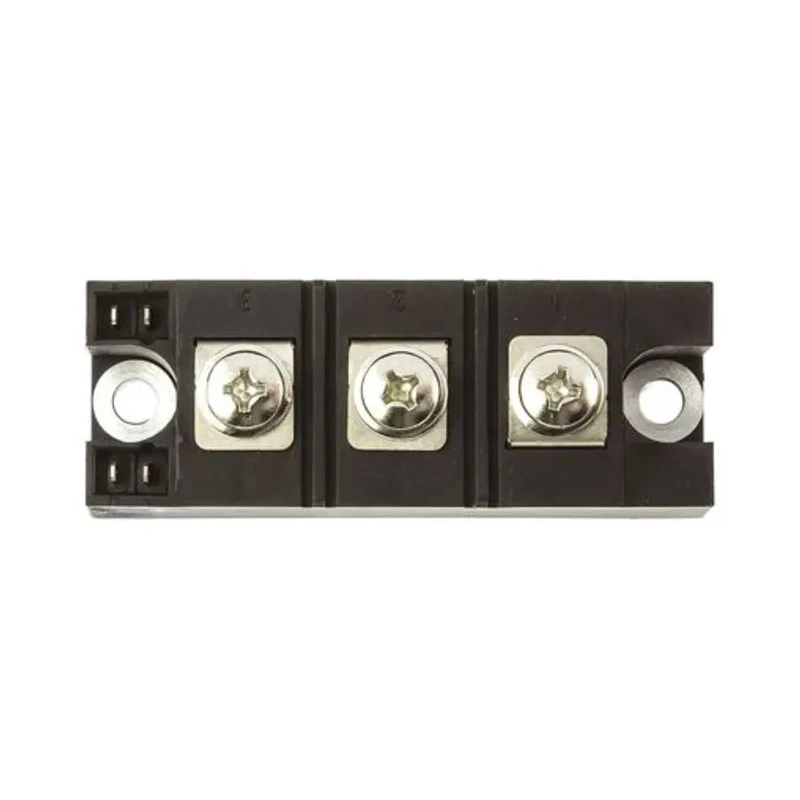

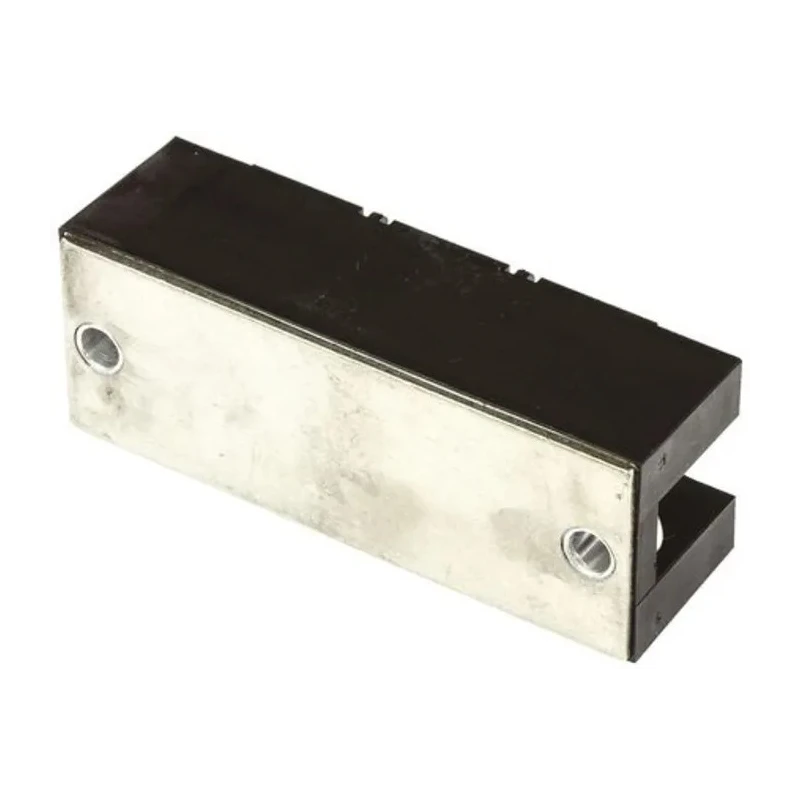

Vishay High Voltage Diode 1200 V 205 A Surface Mount INT-A-PAK 3-Pin VS-VSKDU162/12PbF

Vishay VS-VSKDU162/12PbF High Voltage Diode is a robust and reliable semiconductor designed for high voltage rectification in industrial and electronic applications. This diode is configured in series within the VSX series and housed in a surface mount INT-A-PAK package with three pins for efficient mounting and connectivity.

Rated for a maximum continuous forward current of 205 A and a peak reverse repetitive voltage of 1200 V, this diode is suitable for demanding power management tasks in industrial and electronic manufacturing sectors. The maximum forward voltage of 3.9 V and peak reverse recovery time of 200 nanoseconds underscore its efficiency and fast switching capabilities.

Engineered to operate in a broad temperature range from -40°C minimum to 150°C maximum operating temperature, it delivers reliable performance under varied environmental conditions. The diode’s compact form factor, measuring 94 mm in length, 35 mm in width, and 28 mm in height, facilitates integration into limited-space assemblies.

Key electrical parameters include a peak non-repetitive forward surge current of 800 A and a low peak reverse current of 30 mA, which together enhance the diode's resilience and efficiency in transient conditions. The product complies with industrial standards and is not certified under specific approvals but is manufactured with Vishay's quality assurance.

High voltage diode for rectification with 1200 V peak reverse voltage rating. Surface mount 3-pin INT-A-PAK package for efficient electronic assembly integration. Maximum continuous forward current of 205 A supporting heavy load scenarios.

Ultrafast recovery time of 200 ns suitable for high-frequency applications. Wide operating temperature range from -40°C to 150°C for versatile industrial use. Robust peak surge current handling at 800 A for transient protection.

Compact physical dimensions optimize space usage in circuit designs. Low peak reverse current minimizes leakage and power losses. Manufactured in India ensuring quality and reliability.

This diode is ideal for applications including power supplies, industrial rectifiers, and electronic manufacturing requiring high voltage, high current, and rapid switching capabilities. Industrial sectors such as power electronics, manufacturing, and testing instruments will find this Diode particularly valuable.
