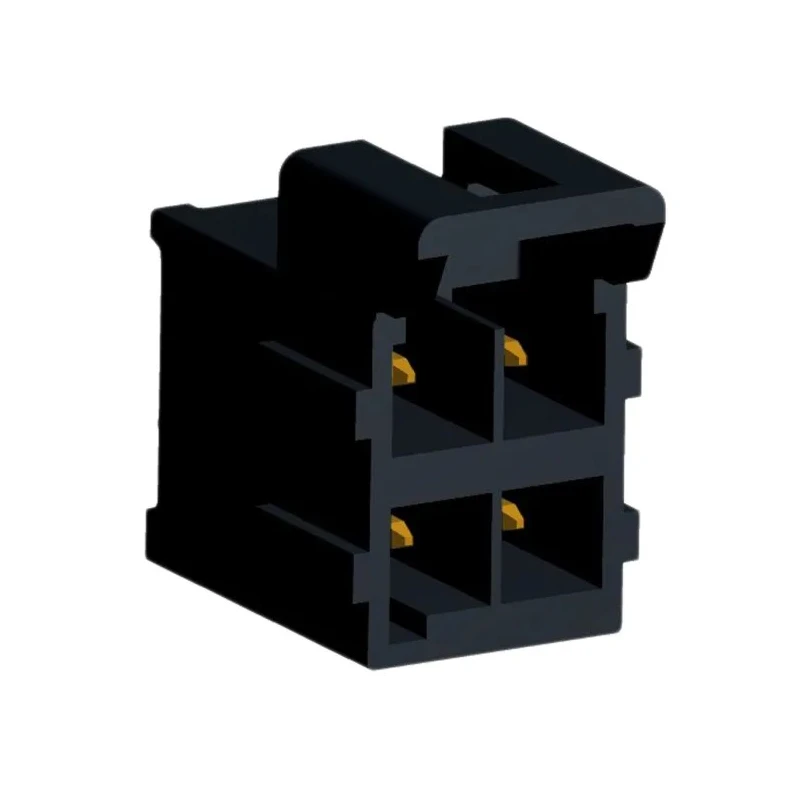

Molex Ultra-Fit Series Straight Through Hole PCB Header, 4 Contact(s), 3.5 mm Pitch, 2 Row, Shrouded 172298-1204
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 400V |
| Brand | Molex |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | Ultra-Fit |
| Termination Type | Solder |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
Key Features
- Features Ultra-Fit series for low mating force and high current density.
- Made with Liquid Crystal Polymer housing material for durability and flame resistance.
- Supports a current rating of 12A at 400V voltage.
- Gold-plated copper alloy contacts ensure optimal conductivity and corrosion resistance.
- Designed for through hole mounting with a straight orientation and shrouded connector system.
- Operates reliably from -40°C to 120°C temperature range.
- Tail pin length is 3.2 mm for secure solder termination.
- Polarized mating and mounting interface ensures accurate alignment and retention on PCB.
Product Description
Molex 172298-1204 Ultra-Fit Series Straight Through Hole PCB Header is engineered for efficient PCB space saving with a 3.5 mm pitch and 2-row configuration. This 4-contact male header features a shrouded design for extra protection and accurate alignment when mating, enhancing durability and reliability.
The housing is fabricated from Liquid Crystal Polymer (LCP) meeting UL94V-0 standards and is Glow Wire Compliant per IEC 60335-1, ensuring safety and high flame resistance. Gold-plated copper alloy contacts provide excellent conductivity and corrosion resistance, supporting a current of up to 12A at 400 volts.
Designed for through hole mounting, with a tail pin length of 3.2 mm, it offers secure solder termination for stable electrical and mechanical connections.
Operating temperature ranges from -40°C to 120°C, suitable for various industrial, commercial, and consumer electronics applications including home appliances, telecommunications hubs, transportation equipment, lighting ballasts, industrial food and beverage machinery, medical devices, and aerospace and defense sectors.
Ultra-Fit series for low mating force and current-dense streamlined design. Shrouded connector housing for protection and secure positioning. Wire-to-board connector system with polarized mating interface. Gold-plated copper alloy contacts for high reliability.
Compliance with UL94V-0 and Glow Wire IEC 60335-1 standards. Wide operating temperature range from -40°C to 120°C. Supports 12A current at 400V voltage rating. Through hole mounting and straight orientation for versatile PCB applications.
This product, manufactured in Mexico, aligns with high safety and performance standards expected in modern electronic assemblies. Explore more options in PCB Headers and connectors at EnvMart for your precise requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PCB header supports a maximum current rating of 12A at a voltage of 400V.
The housing is made from Liquid Crystal Polymer (LCP), which is known for its durability and flame resistance.
This model has a pitch size of 3.5 mm, designed for efficient PCB space utilization.
It operates reliably within a temperature range of -40°C to 120°C.
This header features 4 contacts arranged in a 2-row configuration.
It uses solder termination for secure electrical and mechanical connections.
This model is shrouded, providing extra protection and accurate alignment when mating.
It utilizes a wire-to-board connector system, ensuring reliable connections.
The tail pin length is 3.2 mm, allowing for stable solder connections.
It complies with UL94V-0 standards and is Glow Wire Compliant per IEC 60335-1.
This product is manufactured in Mexico, aligning with high safety and performance standards.
It is suitable for various applications including home appliances, telecommunications, and medical devices.
