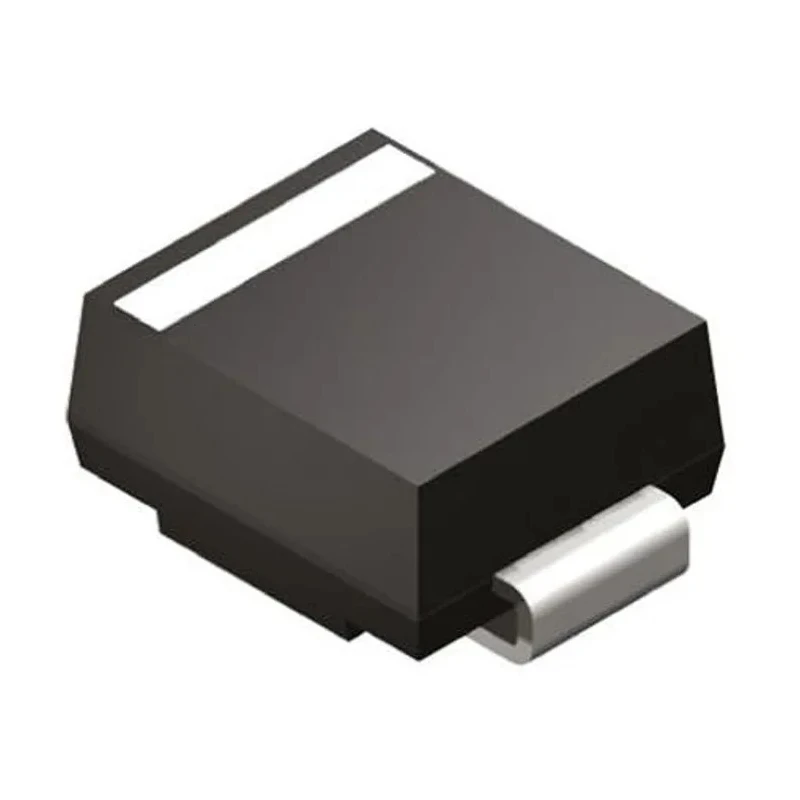

DiodesZetex 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ12CA-13-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 2.42mm |
| Length | 4.57mm |
| Model | SMBJ12CA-13-F |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | SMBJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 19.9V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 13.3V |
| Maximum Reverse Stand-off Voltage Vwm | 12V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 30.2A |
| Maximum Reverse Leakage Current | 5μA |
Key Features
- This diode offers bi-directional configuration for versatile protection.
- It has a minimum breakdown voltage of 13.3 V and a maximum reverse standoff voltage of 12 V.
- The clamping voltage is 19.9 V to prevent voltage spikes effectively.
- Designed for surface mount applications with a compact DO-214 package type.
- Operates reliably between -55°C and 150°C with a peak pulse current of 30.2 A.
- Suitable for transient voltage suppression in electronic circuits and semiconductor protection.
Product Description
DiodesZetex SMBJ12CA-13-F is a 1-element bi-directional Transient Voltage Suppressor (TVS) diode designed to provide robust transient voltage protection in electronic circuits. It supports a peak pulse power dissipation capability of 600 W and comes in a compact surface mount DO-214 package with two pins for easy PCB mounting.
This diode features a bi-directional configuration enabling protection against both positive and negative transient voltages. Its minimum breakdown voltage (Vbr) of 13.3 V and maximum reverse standoff voltage (Vwm) of 12 V ensure reliable clamping during voltage surges. With a clamping voltage of 19.9 V, it effectively limits voltage spikes to protect sensitive semiconductor devices.
The operating temperature range from -55°C to 150°C allows functionality in industrial and commercial electronics exposed to harsh environments. The device can handle a peak pulse current (Ippm) of 30.2 A, ensuring high-level transient voltage suppression capabilities during electrical surges.
Compact dimensions of 4.57 mm in length, 3.94 mm in width, and 2.42 mm in height facilitate space-saving designs on PCBs. This TVS diode is ideal for applications in semiconductor device protection, power line transient suppression, and electronic component safeguarding in a wide array of industrial, commercial, automotive, and manufacturing equipment.
The diode's surface mount DO-214 package type supports automated assembly for improved production efficiency. Its single-element construction and 2-pin configuration simplify integration into various circuit designs.
This diode offers bi-directional configuration for versatile protection. It has a minimum breakdown voltage of 13.3 V and a maximum reverse standoff voltage of 12 V. The clamping voltage is 19.9 V to prevent voltage spikes effectively.
Designed for surface mount applications with a compact DO-214 package type. Operates reliably between -55°C and 150°C with a peak pulse current of 30.2 A. Features compact size with dimensions of 4.57 mm x 3.94 mm x 2.42 mm.
Suitable for transient voltage suppression in electronic circuits and semiconductor protection. Explore similar semiconductor and TVS Diode products in our Electronics & Electricals category at EnvMart for industrial and laboratory requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the SMBJ12CA-13-F is 600 W.
The minimum breakdown voltage (Vbr) of this model is 13.3 V.
The clamping voltage (VC) for the SMBJ12CA-13-F is 19.9 V.
This diode operates reliably between -55°C and 150°C.
The maximum reverse standoff voltage (Vwm) is 12 V.
The dimensions of this diode are 4.57 mm in length, 3.94 mm in width, and 2.42 mm in height.
The maximum peak pulse current (Ippm) that this diode can handle is 30.2 A.
The SMBJ12CA-13-F comes in a compact DO-214 surface mount package.
This model features a 2-pin configuration.
This diode has a bi-directional configuration for versatile protection.
The maximum reverse leakage current is 5 μA.
This diode is suitable for transient voltage suppression in electronic circuits and semiconductor protection.
