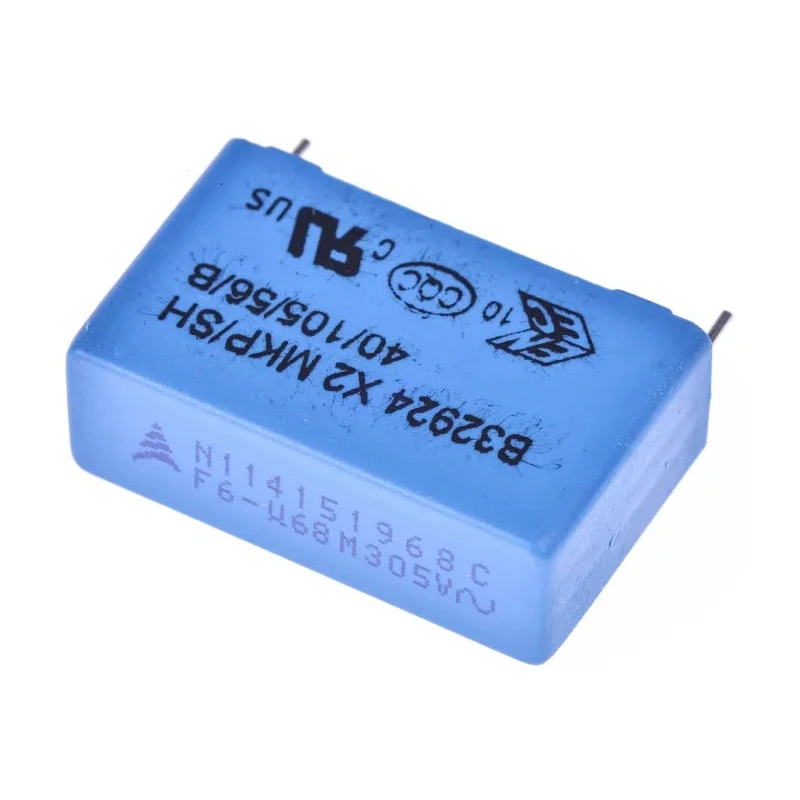

TDK Film Capacitor 680 nF 305V AC 630 V DC Through Hole 2 Pin B32924C3684M000

TDK B32924C3684M000 film capacitor is a precise electronic component designed for reliable performance in various electrical circuits requiring EMI suppression and stable capacitance. This capacitor offers a capacitance of 680 nF, rated at 305V AC and 630 V DC, suitable for a wide range of power and electronic applications. It is supplied in a through hole mount style with 2 pins and a lead pitch of 27.5 mm for easy integration into circuit boards.

The capacitor features a plastic case with epoxy resin sealing, ensuring durability and a UL 94 V-0 flammability rating. It has self-healing properties enhancing its lifespan and reliability in high voltage environments. Classified as an X2 suppression class capacitor, it is intended for across the line use but should not be positioned where failure would expose users to electric shock.

Operating reliably up to 110°C, the component has a compact form factor with dimensions of 31.5 mm in length, 11 mm width, and 19 mm height. Its leads have a diameter of 0.8 mm, supporting robust mechanical connections. The part is recognized for compliance with RoHS and UL standards, underlining its suitability for environmentally conscious and safe industrial, commercial, and electronic manufacturing uses.

This film capacitor is ideally utilized in industrial, manufacturing, commercial electronic assembly, and power supply systems requiring EMI noise reduction and stable AC/DC voltage performance.

This film capacitor has a capacitance of 680 nF. Rated for 305V AC and 630 V DC applications. Utilizes a through hole mount type with a lead pitch of 27.5 mm. Constructed with plastic case and epoxy resin sealing for high durability.

Features self-healing properties and meets X2 suppression class. Maximum operating temperature is 110°C. Compact dimensions: length 31.5 mm, width 11 mm, height 19 mm. Lead diameter measures 0.8 mm and pin count is 2. Complies with RoHS and UL standards.

Designed for EMI suppression and across the line applications. Explore more Film Capacitors and electronic components at EnvMart to find solutions for your electrical engineering and power distribution needs.
