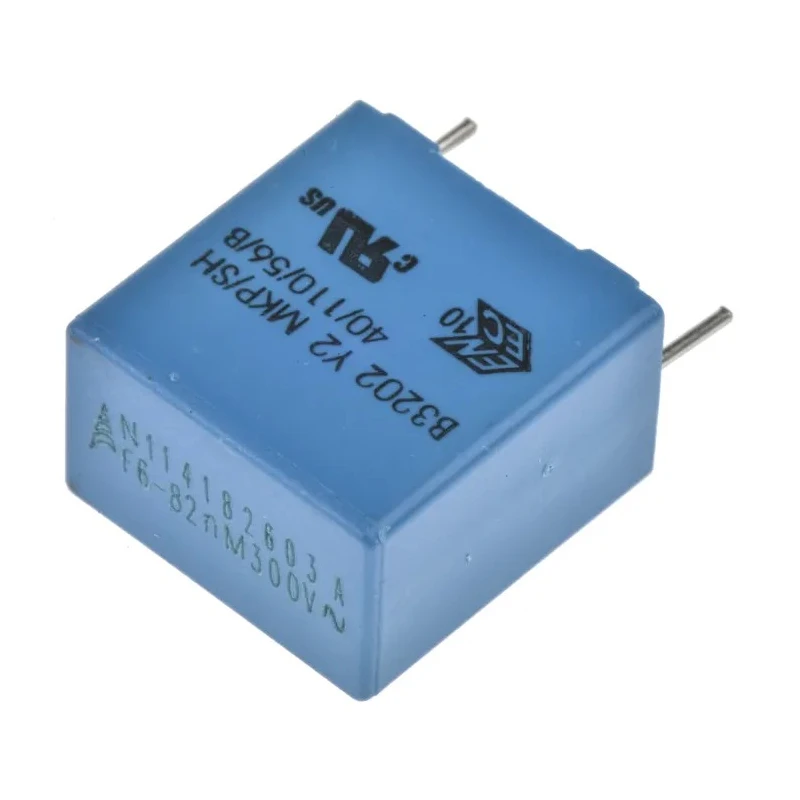

TDK Film Capacitor 82 nF 300V AC 1.5 kV DC Through Hole 2 Pins B32022A3823M000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor 82 nF 300V AC 1.5 kV DC Through Hole 2 Pins B32022A3823M000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Operating Temperature	-40 → 110 °C
Height	18.5mm
Length	18mm
Model	B32022A3823M000
Width	11mm
Mount Type	Through Hole
Series	B32021
Maximum Operating Temperature	110°C
Capacitance	82nF
Standards/Approvals	UL, CSA
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	1.5kV dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Suppression Class	Y2

Key Features

Constructed with polypropylene film and plastic case with epoxy resin sealing for durability.
Compact dimensions of 18mm length, 18.5mm height, and 11mm width enable space-efficient designs.
Rated for operating temperatures from -40 to 110 degrees Celsius.
Pin pitch of 15mm and lead diameter of 0.8mm for secure connection and mounting.
Designed for interference suppression applications such as Y2 class and line-to-ground connections.
Compliant with standards including UL and CSA for safety and reliability.
Offers good self-healing properties and high voltage capability.
Ideal for electronic devices requiring stable film capacitors with high insulation strength.

Product Description

TDK B32022A3823M000 is a high-quality film capacitor offering 82 nF capacitance with rated voltages of 300V AC and 1.5 kV DC. It features a through hole mount type with 2 pins spaced at a 15mm lead pitch, suitable for insertion in PCBs requiring stable and reliable capacitors.

Constructed using polypropylene film and enclosed in a plastic case with epoxy resin sealing, this capacitor provides excellent durability and self-healing characteristics, making it ideal for industrial and electronic applications.

With compact dimensions of 18mm length, 18.5mm height, and 11mm width, it fits well in space-constrained environments. The pin diameter is 0.8mm, ensuring secure mechanical and electrical connections.

The operating temperature range from -40 to 110 °C allows use in various environments, while compliance with UL and CSA standards confirms its safety and performance in demanding power and interference suppression applications.

This Y2 suppression class capacitor is commonly used for line to ground interference suppression, benefiting industries including electronics manufacturing, power supply design, and HVAC control systems.

Polypropylene construction with plastic case and epoxy resin sealing for durability and safety. Very small dimensions suitable for compact PCB layouts. High voltage capability and good self-healing properties for reliability.

Y2 class capacitor designed for interference suppression and line-to-ground applications. Rated for temperatures from -40 to 110 °C for versatile use. UL and CSA approved to industrial standards. Pin pitch 15mm with 0.8mm lead diameter ensures secure mounting.

This TDK film capacitor is an essential component for electronic circuit designers requiring high reliability, compact form factor, and compliance with international safety standards. Explore EnvMart’s extensive selection of Film Capacitors and electronic components for diverse industrial and commercial uses.
