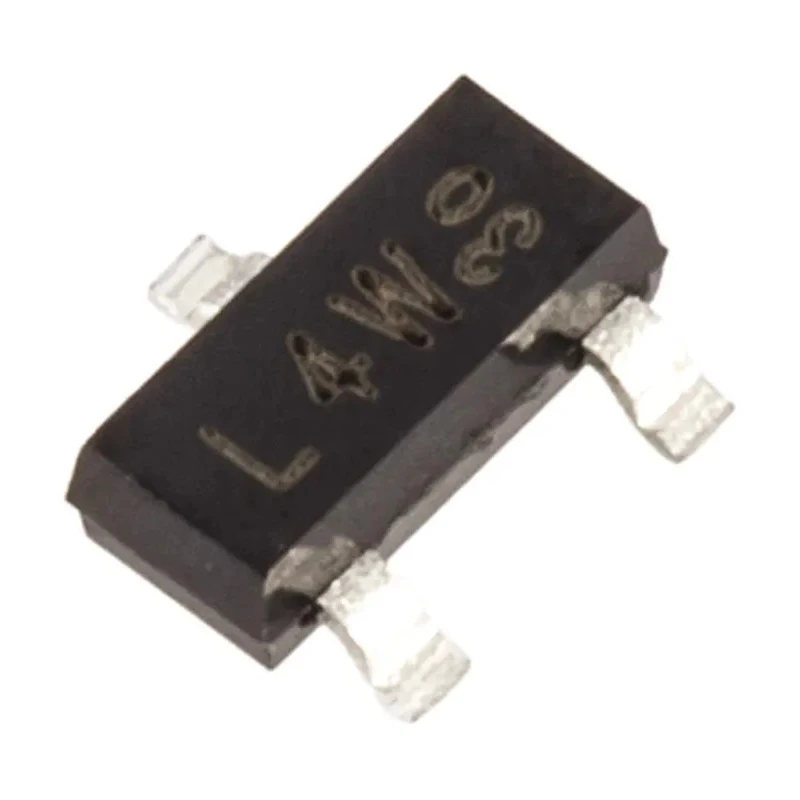

Nexperia 70 V 70 mA Schottky Diode 3-Pin SOT-23 Package BAS70-04,215

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 70 V 70 mA Schottky Diode 3-Pin SOT-23 Package BAS70-04,215

Name: Nexperia 70 V 70 mA Schottky Diode 3-Pin SOT-23 Package BAS70-04,215
Brand: Nexperia
SKU: 134917
Price: 0.06 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.1mm
Length	3mm
Model	BAS70-04,215
Width	1.4mm
Mount Type	Surface
Series	BAS70-04
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-65°C
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	70mA
Peak Reverse Repetitive Voltage Vrrm	70V
Diode Configuration	Series
Rectifier Type	Schottky
Peak Reverse Current Ir	100nA
Peak Non-Repetitive Forward Surge Current Ifsm	100mA
Maximum Forward Voltage Vf	750mV

Key Features

Maximum continuous forward current of 70 mA for reliable circuit operation.
Peak reverse repetitive voltage rating of 70 V ensuring robust blocking capability.
Compact SOT-23 package with dimensions of 3 mm length, 1.4 mm width, and 1.1 mm height.
Low forward voltage of 750 mV reduces power loss and enhances efficiency.
Low leakage current with peak reverse current of 100 nA at rated voltage.
Wide operating temperature range from -65°C to 150°C for harsh environments.
Designed to meet automotive standard AEC-Q101 for quality and reliability.

Product Description

Nexperia BAS70-04,215 is a high-efficiency 70 V, 70 mA Schottky diode featuring a compact 3-pin SOT-23 surface-mount package. It is optimized for applications requiring low forward voltage drop and high switching speed, such as power rectification, voltage clamping, and signal demodulation in automotive, industrial, and consumer electronics.

This diode supports a maximum continuous forward current of 70 mA and can withstand a peak reverse repetitive voltage of 70 V, providing robust performance under varied electrical stresses. The low forward voltage of 750 mV contributes to low power dissipation and efficient circuit operation. Peak reverse current is minimal at 100 nA, reducing leakage losses significantly.

The diode is qualified to automotive standard AEC-Q101, ensuring stringent quality and reliability for automotive electronics designs. It operates reliably in a wide temperature range from -65°C to +150°C, making it suitable for demanding industrial and automotive environments.

Its ultra-small and low-profile SOT-23 package measures 3 mm in length, 1.4 mm in width, and 1.1 mm in height, enabling compact PCB layouts and high-density designs. The diode configuration is series type, providing predictable electrical characteristics in diode bridge and rectifier circuits.

Typical applications include power supply circuits, switching mode power supplies, freewheeling diodes for inductive loads, and protection circuits against voltage spikes. The device’s low capacitance characteristics minimize switching losses, improving efficiency in high-frequency applications.

Maximum continuous forward current of 70 mA for reliable performance. Peak reverse repetitive voltage rating of 70 V for circuit protection. Low forward voltage drop of 750 mV reduces energy consumption. Automotive grade AEC-Q101 compliance ensures durability.

Wide operating temperature range from -65°C to 150°C. Compact SOT-23 package supports space-saving PCB design. Low leakage current minimizes power loss in standby modes. Explore the full range of semiconductor components and Schottky diodes for diverse applications on EnvMart, your industrial and electronics sourcing platform.

Explore more products in our Schottky Diodes & Rectifiers category.
