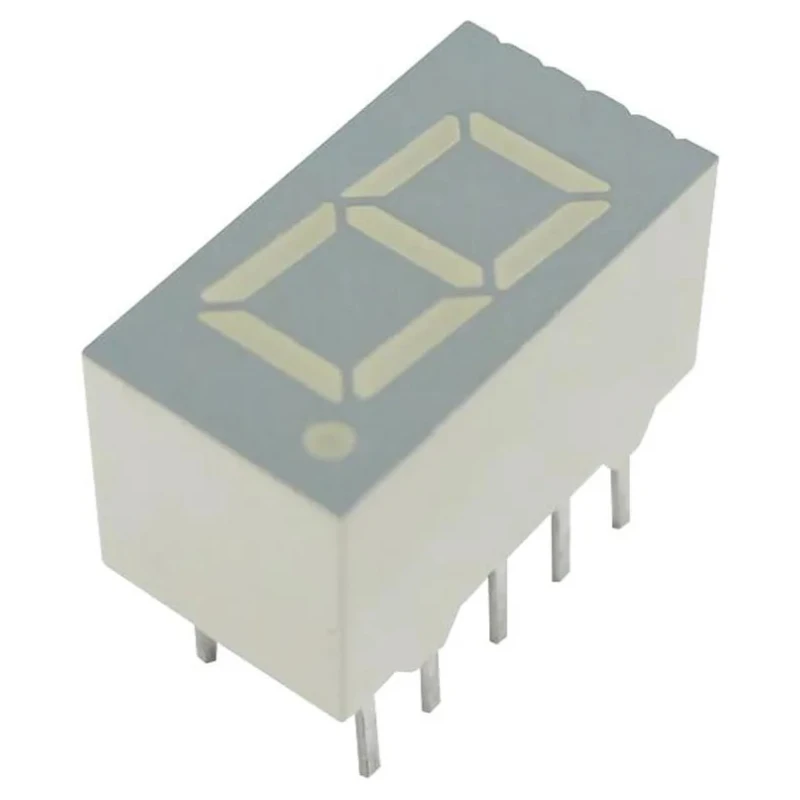

Kingbright 1-Digit 7 Segment Cathode Red LED Display 9.1mm Height SC36-11SURKWA
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | SC36-11SURKWA |
| Mount Type | Through Hole |
| Character height | 9.1mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 7.5mm |
| External Depth | 8.5mm |
| External Height | 14mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 28mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 4.8mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
Key Features
- Features a bright red LED colour with a luminous intensity of 28mcd.
- Constructed with a grey face and white segments for excellent character appearance.
- Designed for through-hole mounting on printed circuit boards or sockets.
- Operates with low current consumption and power dissipation of 75mW.
- Common cathode connection with decimal point oriented to the right side.
- Character width measures 4.8 mm and height 9.1 mm for clear legibility.
- Extends durable operation from -40°C to 85°C temperature range.
- Forward voltage is 2V with a forward current of 30mA.
Product Description
Kingbright SC36-11SURKWA is a high-quality single digit 7 segment LED display with cathode common connection and red LED colour, featuring a character height of 9.1 mm and a character width of 4.8 mm. This LED display offers a luminous intensity of 28 millicandela (mcd), providing excellent visibility with bright on/off contrast. The display is designed with a grey face and white segments, ensuring clear and distinct character presentation.
It is constructed for through-hole mounting, simplifying installation and PCB assembly. The display operates with low power, having a power dissipation of 75 mW and a forward voltage of 2V at 30 mA forward current, which contributes to energy efficiency and long operational lifespan.
The SC36-11SURKWA supports operation in wide temperature conditions ranging from -40°C to 85°C, making it suitable for industrial, instrumentation, electronic components, and display module applications. It is RoHS compliant, ensuring compliance with current environmental protection standards.
The decimal point is positioned on the right side, allowing tailored use in numeric display applications requiring this orientation. The external package dimensions are 14 mm height, 7.5 mm width, and 8.5 mm depth, contributing to its compact form factor and facilitating integration into various devices.
Bright red LED colour with 28 mcd luminous intensity. Grey face and white segments provide excellent character appearance. Through-hole mount for easy PCB installation. Low power consumption; 75 mW power dissipation. Common cathode configuration.
Decimal oriented on the right side for numeric clarity. Wide operating temperature from -40°C to 85°C. RoHS certified for environmental safety. Compact external dimensions enable versatile use. Suitable for industrial, laboratory, and commercial electronic displays.
Explore Kingbright products and related LED Display solutions at EnvMart to find reliable components for your electronic design and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of the Kingbright SC36-11SURKWA is 28 millicandela (mcd), providing bright visibility for clear character presentation.
The external dimensions of the SC36-11SURKWA are 14 mm in height, 7.5 mm in width, and 8.5 mm in depth, making it compact for various applications.
This model operates effectively within a temperature range of -40°C to 85°C, suitable for various environments.
The SC36-11SURKWA features a common cathode connection, which is standard for many LED display applications.
The forward voltage for this LED display is 2V, with a forward current of 30mA, ensuring efficient operation.
This unit is designed for through-hole mounting, facilitating easy installation on printed circuit boards.
The LED color is red, and the display features a grey face with white segments for enhanced character visibility.
Yes, the SC36-11SURKWA is RoHS compliant, ensuring it meets environmental protection standards.
The character height is 9.1 mm, and the character width is 4.8 mm, allowing for clear legibility in displays.
The power dissipation for the SC36-11SURKWA is 75 mW, contributing to its low power consumption.
This model has 7 segments, allowing it to display a single digit effectively.
The decimal point on the SC36-11SURKWA is oriented to the right side, suitable for numeric display applications.
