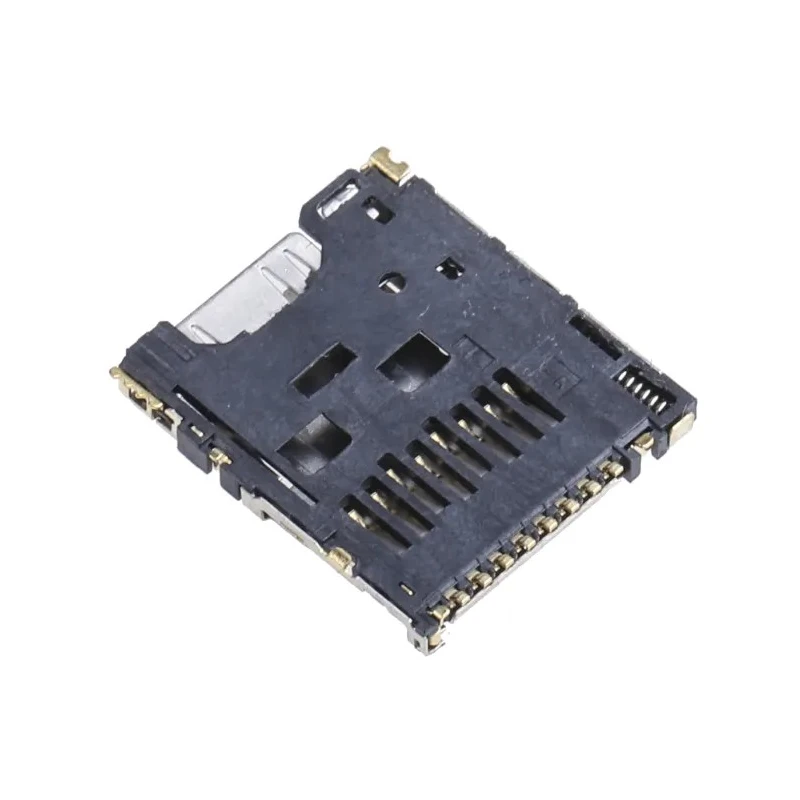

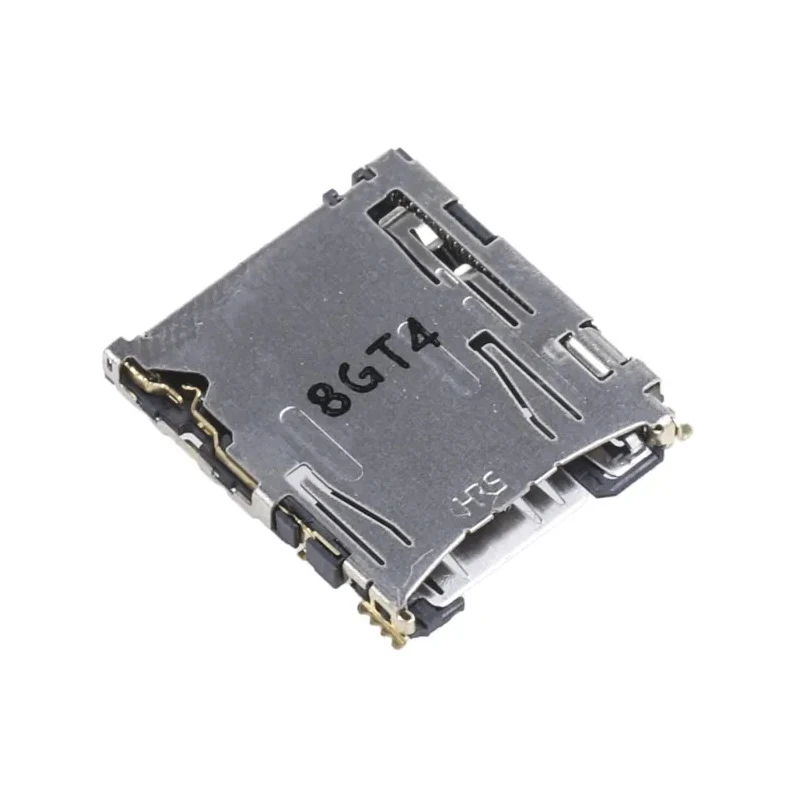

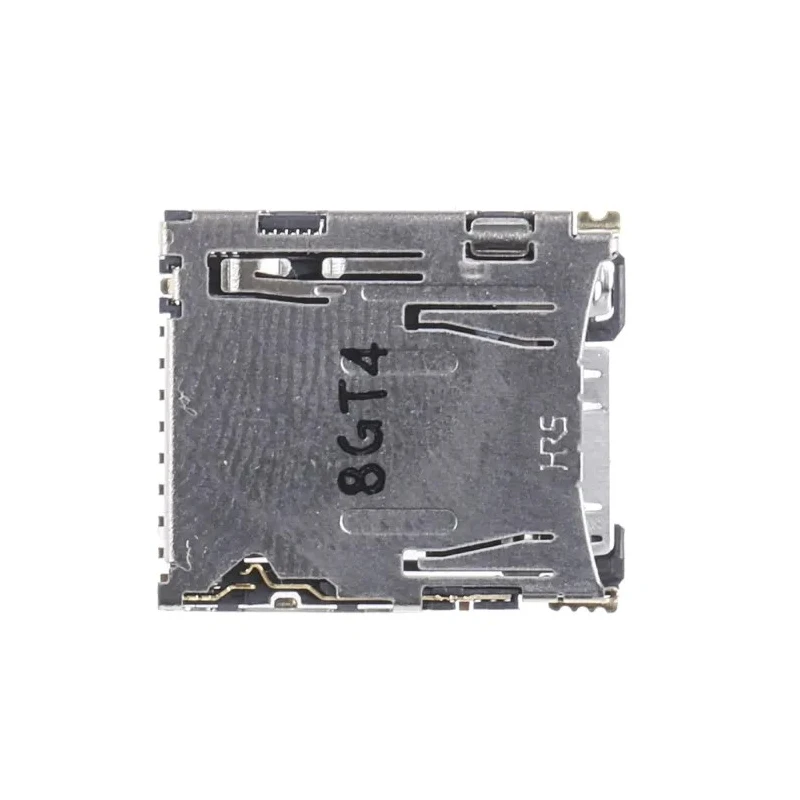

Hirose DM3 8 Way Right Angle Push-Push MicroSD Memory Card Connector, Solder DM3AT-SF-PEJM5

Hirose DM3AT-SF-PEJM5 is a high-quality 8 Way Right Angle Push-Push MicroSD Memory Card Connector designed for reliable and secure data connection in electronics and computing devices. Featuring a solder termination type and surface mount technology, this connector integrates easily onto PCBs in industrial, communications, and consumer electronic equipment.

Its compact design with a 1.1mm pitch and right angle orientation allows for efficient use of space and robust mechanical support. The connector utilizes copper alloy contacts with gold plating, ensuring excellent conductivity and resistance to wear and corrosion. The stainless steel housing offers strong mechanical protection and helps reduce EMI interference via four metal cover connection points to the PCB ground.

Key features include an ejection mechanism via push-push card insertion/removal, reverse card insertion protection to avoid damage, and a normally open card detection switch for system awareness. Designed to perform reliably over an operating temperature range of -25°C to 85°C, it is suitable for a wide range of environmental conditions.

Supports MicroSD card type with 8 contacts arranged in a single row. Push-Push method simplifies card ejection and insertion while securing stability. Gold-plated copper alloy contacts for long-lasting electrical performance.

Robust stainless steel housing enhances mechanical strength and EMI shielding. Right angle SMT mounting ensures compact and efficient PCB layout. Reverse card insertion protection prevents connector damage and card misalignment.

Normally open card detection switch enhances device integration and operation feedback. Suitable for electronics manufacturing, industrial automation, communication devices, and computing applications.

This connector is part of the DM3 series by Hirose, known for small external dimensions combined with strong and rigid construction. The product is made in China and complies with quality standards specific to connector components, though it carries no specific certifications.

EnvMart offers the Hirose DM3AT-SF-PEJM5 for professionals seeking dependable microSD card connectors for their advanced electronics and industrial designs. Explore the wide range of Hirose connectors and electronics components available through EnvMart to find optimal solutions for your projects.
