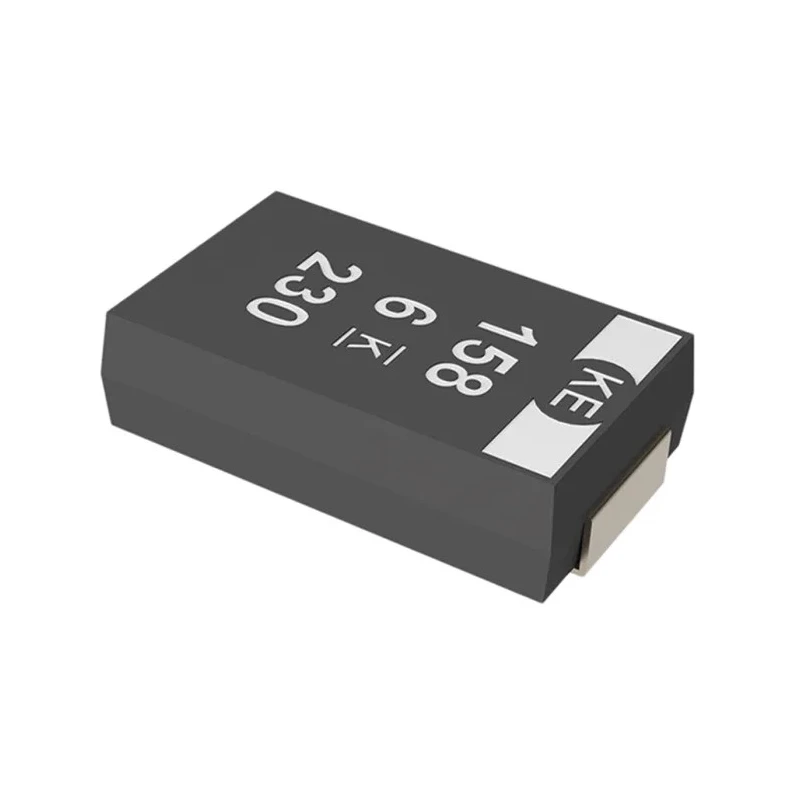

KEMET Polymer Capacitor Surface Mount 1.5mF 6.3V DC Solid Electrolyte T545 Series T545H158M006ATE035

KEMET T545H158M006ATE035 is a polymer capacitor designed for surface mount applications, featuring a capacitance of 1.5mF and a voltage rating of 6.3V DC. This device uses a solid polymer electrolyte replacing traditional MnO2 cathode plates, resulting in improved performance characteristics such as lower equivalent series resistance and higher ripple current capability.

The capacitor conforms to the T545 series specifications and is housed in a 7360-20 package case measuring 7.3 mm length, 6 mm depth, and 2 mm height, making it suitable for high-density PCB layouts. It operates reliably in temperatures ranging from -55°C to a maximum of 125°C.

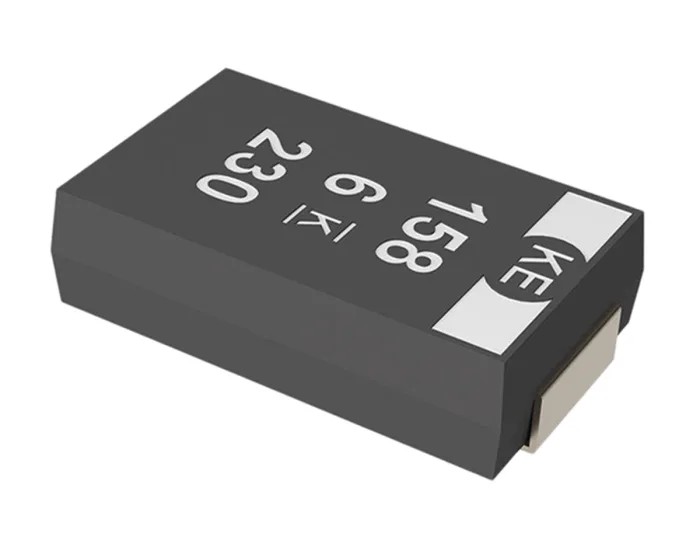

Designed with polarity awareness, the white band marks the positive terminal. Leakage current is limited to 945 microamps, and the device sustains a ripple current of 2.31A, supporting applications with demanding electrical requirements. The ±20% tolerance and 2000-hour lifetime ensure stable and consistent performance over time.

This capacitor is not certified for automotive standards but is optimized for industrial and commercial electronic circuit designs, including power supplies, filtering, and signal processing applications. Its precision moulded chip tantalum construction with symmetrical compliant terminations facilitates automated assembly processes.

This capacitor uses a conductive polymer electrolyte for enhanced electrical properties. Compact 7.3 x 6 x 2 mm package supports dense PCB integration. Wide operating temperature range from -55°C to 125°C. High ripple current capability of 2.31A supports demanding circuits.

Leakage current limited to 945 microamps for low power loss. Polarized device marked with a positive terminal band. 2000-hour expected lifetime for reliable long-term operation. Ideal for industrial electronics and power management systems.
