RS PRO Supercapacitor 1.5F Capacitance 5.5V DC Polar Through Hole 19mm Diameter 184-5068

Free Delivery in India | Lowest Global Shipping Charges

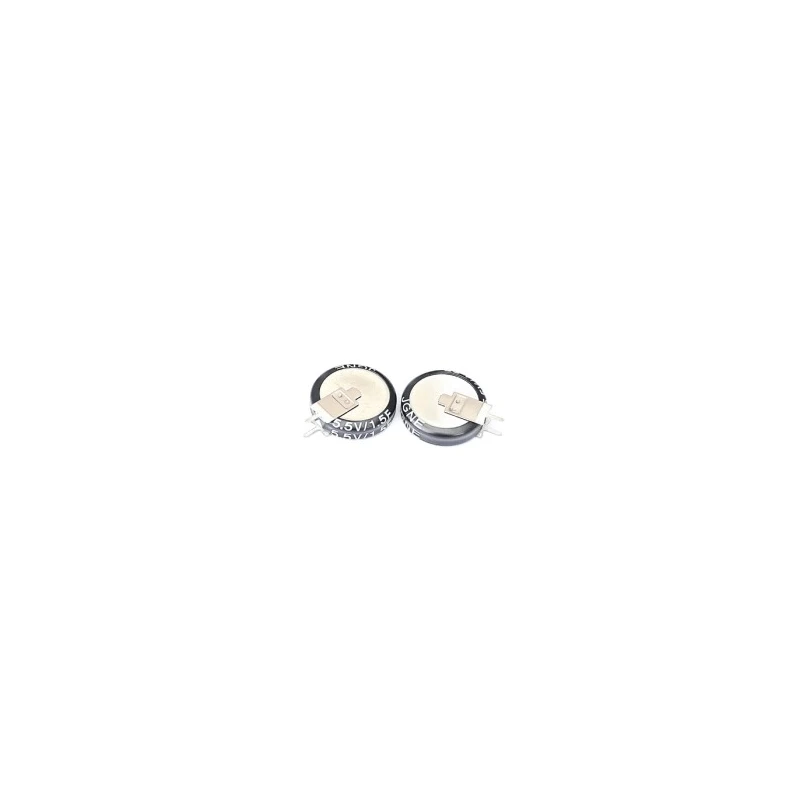

RS PRO Supercapacitor 1.5F Capacitance 5.5V DC Polar Through Hole 19mm Diameter 184-5068

Name: RS PRO Supercapacitor 1.5F Capacitance 5.5V DC Polar Through Hole 19mm Diameter 184-5068
Brand: RS PRO
SKU: 156595
Price: 1.22 USD
Availability: InStock



Category Supercapacitors Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	5.5V dc
Diameter	19mm
Brand	RS PRO
Height	23mm
Model	184-5068
Mount Type	Through Hole
Series	RS PRO
Maximum Operating Temperature	70°C
Tolerance	-20 to 80 %
Lifetime	200000 Cycles
Capacitance	1.5F
Minimum Operating Temperature	-40°C
Polarity	Polar
Terminal type	Solder
Leakage Current	20μA
Pin Count	2
Lead Pitch	4.5mm
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Equivalent Series Resistance ESR	30Ω
Capacitor Family	Electric Double Layer
Standards/ApprovalsBS EN 61340-5-1	2007, ANSI/ESD S20.20:2014

Key Features

This supercapacitor is rated at 1.5 Farads capacitance for energy storage.
The operating voltage is 5.5 volts DC suitable for low voltage applications.
Mount type is through hole with solder terminal for robust installation.
Tolerance of capacitance is between -20% and 80% ensuring flexible performance.
Operating temperature ranges from -40°C to 70°C for industrial environments.
Leakage current is minimal at 20 microamps, supporting energy efficiency.
Pin pitch measures 4.5 millimeters allowing compact circuit design.
Equivalent series resistance (ESR) is 30 ohms ensuring quality performance.

Product Description

RS PRO 184-5068 supercapacitor is a high-quality Electric Double Layer Capacitor (EDLC) with 1.5F capacitance and a voltage rating of 5.5V DC. It features a polar design with through hole mounting and solder terminals, making it suitable for industrial and electronic component applications requiring reliable energy storage with quick charge and discharge capabilities.

This supercapacitor has a capacitance tolerance range from -20% to +80%, enabling it to maintain adequate performance even under varied manufacturing conditions. It supports operating temperatures from -40°C to 70°C, making it ideal for harsh environments including industrial equipment, backup power supplies like UPS, solar battery circuits, motor drive quick charging applications, and electronic metering devices.

The device has a low leakage current of 20μA, which minimizes power loss during standby operation. Its equivalent series resistance (ESR) of 30Ω ensures stable operation with efficient energy transfer. The physical dimensions of 19mm diameter and 23mm height provide easy integration into compact electronic assemblies.

This supercapacitor complies with international standards BS EN 61340-5-1:2007 and ANSI/ESD S20.20:2014, affirming its suitability for ESD protection and industrial use cases. This product is particularly recommended for industrial, HVAC, solar energy systems, manufacturing, and backup power applications requiring rapid charge and discharge cycles.

Its polar and through hole construction allows straightforward PCB mounting and soldering. Provides exceptional lifetime rated at 200,000 cycles, offering long-term reliable performance. Incorporates electric double layer capacitor technology for high capacitance in a compact size.

Ideal for use in motor drives and electronic metering where stable power supply is needed. Explore more high-quality capacitors and electronic components within the RS PRO range on EnvMart for your industrial and laboratory needs.
