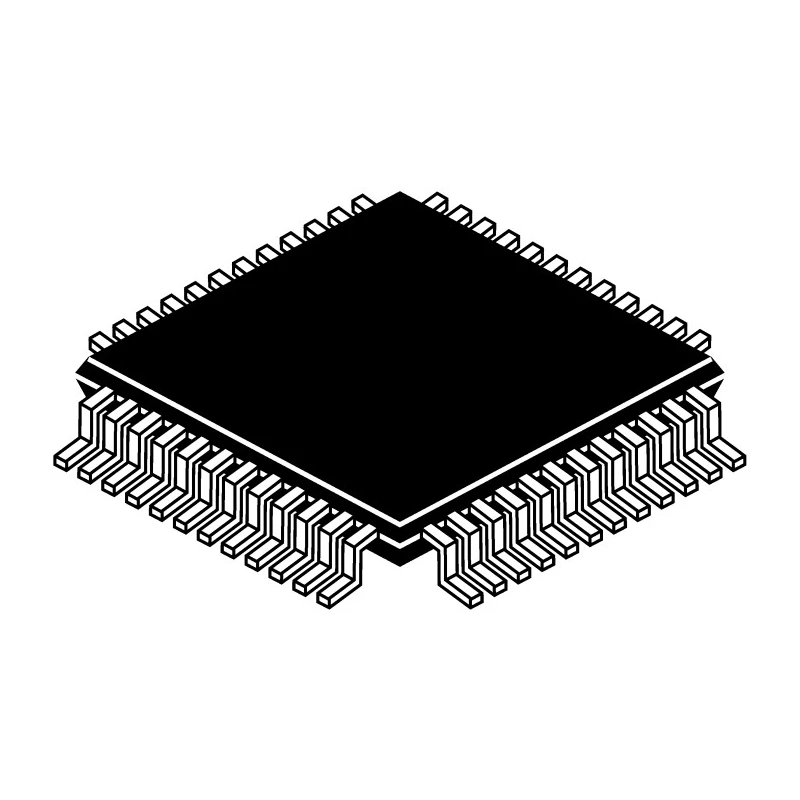

Lattice Semiconductor Complex Programmable Logic Device ispMACH EEPROM 32 Cells, 32 I/O, 7.5 ns Propagation LC4032ZE-7TN48C

Lattice Semiconductor LC4032ZE-7TN48C is a Complex Programmable Logic Device (CPLD) from the ispMACH family that features 32 macro cells and 32 user I/Os. Designed for fast, flexible programmable logic applications, this device uses EEPROM memory technology enabling reliable, reprogrammable logic circuits.

Its low maximum propagation delay time of 7.5 nanoseconds supports high-speed signal processing in electronic systems. Operating voltages range from 1.7 to 1.9 volts and it can run at frequencies up to 400 MHz, making it suitable for demanding industrial and automotive environments.

Packaged in a 48-pin TQFP surface mount format, this CPLD is compact with a 1 mm height and 7 mm length, ideal for circuit boards with limited space. The device includes two logic blocks allowing integration of moderate complexity logic functions. Individual output enable control enhances design versatility and precise system control.

This semiconductor device supports in-system programmability, enabling reprogramming post-installation without removal from the printed circuit board, facilitating rapid development cycles and firmware updates. Its operating temperature range from 0°C to 90°C, along with compliance to the AEC-Q100 automotive standard, ensures robust operation in harsh environments.

Common applications include embedded systems, digital signal processing, industrial automation, automotive electronics, and telecommunications. Its features support efficient circuit design, reduced component count, and improved signal timings.

This device features 32 macro cells and 32 user I/O pins for extensive logic implementation. The EEPROM memory technology ensures reliable re-programmability and non-volatile data retention. Maximum propagation delay time is low at 7.5 ns to support fast processing.

Operates with a supply voltage range from 1.7V to 1.9V and supports a maximum frequency of 400 MHz. Surface mount package in a 48-pin TQFP form factor allows integration into compact circuit boards. The device supports individual output enable control enhancing design flexibility.

Operational temperature ranges from 0°C to 90°C, with AEC-Q100 automotive standard compliance ensuring durability. Height of 1 mm and length of 7 mm make it suitable for space-constrained applications. Includes two logic blocks/elements for moderate complexity circuit designs.

In-system programmability allows reprogramming after installation without removal from the PCB.

For industry professionals and designers seeking a reliable and efficient CPLD, the LC4032ZE-7TN48C provides a proven solution with high-speed logic performance and robust operating parameters. EnvMart offers a broad selection of semiconductor devices including Programmable Logic ICs to support your industrial and commercial electronics projects.
