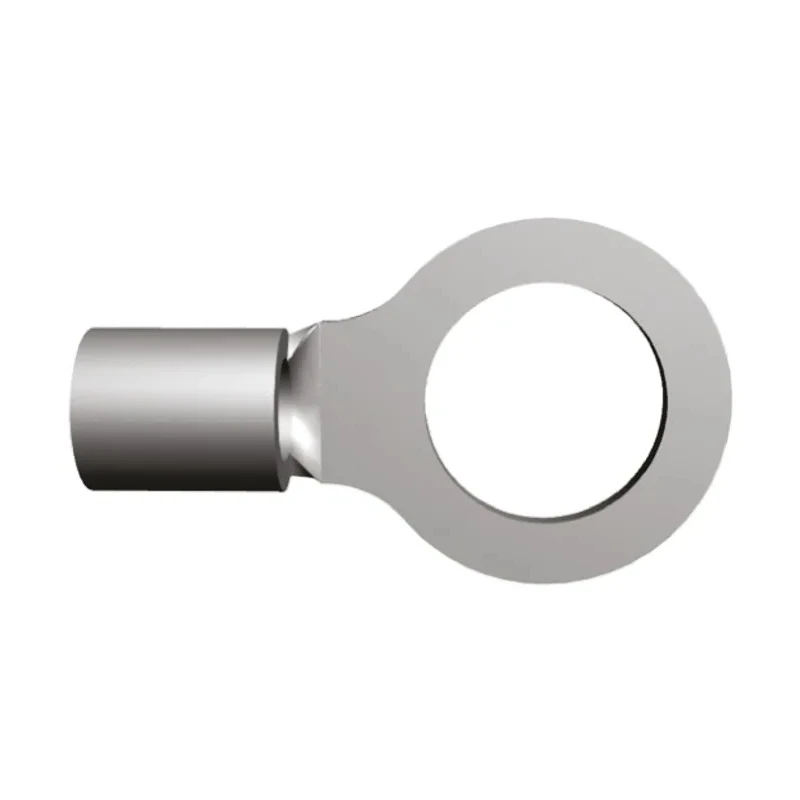

TE Connectivity Solistrand Uninsulated Ring Terminal M8 Stud Size 16 AWG to 14 AWG 170°C 35776
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 1.22mm |
| Model | 35776 |
| Insulation | Uninsulated |
| Overall Length | 21.97mm |
| Contact Material | Copper |
| Series | Solistrand |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | UL E13288, RoHS, CSA LR7189 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 12.7mm |
| Inner Ring Diameter | 8.33mm |
| Stud Size | M8 |
Key Features
- Constructed from fine grade high conductivity copper for optimal electrical performance.
- Electro tin plating ensures excellent corrosion resistance.
- Robust design suitable for harsh industrial environments.
- Brazed seams increase barrel strength and durability.
- Dimpled and serrated barrel enhances electrical contact and tensile strength.
- Bell-shaped mouth simplifies wire insertion and reduces installation time.
- Suitable for maximum operating temperature of 170°C.
- Ideal for use in motors, transformers, switchgear, telecommunications, appliances, and control panels.
Product Description
TE Connectivity 35776 Solistrand Uninsulated Ring Terminal is engineered for high performance and reliability in electrical applications. Designed for M8 stud size and compatible with wire sizes 16 AWG to 14 AWG, it supports a maximum operating temperature of 170°C, making it suitable for demanding industrial environments.
Constructed from fine grade high conductivity copper, these ring terminals provide optimal electrical performance. The electro tin plating enhances corrosion resistance, while the brazed seams provide increased metal strength around the barrel, ensuring durability against harsh conditions. The barrel’s inner surface features serrations to maximize tensile strength and broaden electrical contact after crimping. The innovative 'W' crimp design allows usage of a shorter barrel, improving cost-effectiveness without compromising performance.
The bell-shaped barrel entrance facilitates easier wire insertion, substantially reducing installation times. These Solistrand ring terminals are ideal for applications across materials handling equipment, motors, heavy machinery, pad and pole mount transformers, switchgear, telecommunications, appliances, panel boxes, power supplies, and various control instruments.
Features include:. High conductivity copper material for superior electrical conduction. Electro tin plating for resistance against corrosion and environmental degradation. Brazed barrel seams for enhanced mechanical strength and reliability.
Serrated barrel to ensure maximum tensile strength and electrical contact. Bell mouth entrance for simplified and fast wire insertion. Rated for continuous operation up to 170°C temperature.
This product meets UL E13288, RoHS, and CSA LR7189 standards, affirming its compliance with industrial and safety requirements. Designed for longevity and consistent performance, the TE Connectivity Solistrand Ring Terminal 35776 is a reliable choice for electrical assembly and maintenance.
Explore more in our Wire Terminals & Splices category for comprehensive solutions suited for your electrical and industrial terminal needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this ring terminal is 170°C.
This model is compatible with wire sizes ranging from 16 AWG to 14 AWG.
The stud size for this ring terminal is M8.
It is constructed from fine grade high conductivity copper, and features electro tin plating for corrosion resistance.
This product meets UL E13288, RoHS, and CSA LR7189 standards.
The overall length of this ring terminal is 21.97 mm.
The barrel features brazed seams for increased strength and serrations to maximize tensile strength and electrical contact after crimping.
The outer ring diameter of the terminal is 12.7 mm.
The inner ring diameter of this terminal is 8.33 mm.
The bell-shaped mouth of the barrel simplifies wire insertion and reduces installation time.
The thickness of this terminal is 1.22 mm.
This product is manufactured in India.
