Vishay Zener Diode 10 V 500 mW Through Hole 2-Pin SOD-27 TZX10D-TR

Free Delivery in India | Lowest Global Shipping Charges

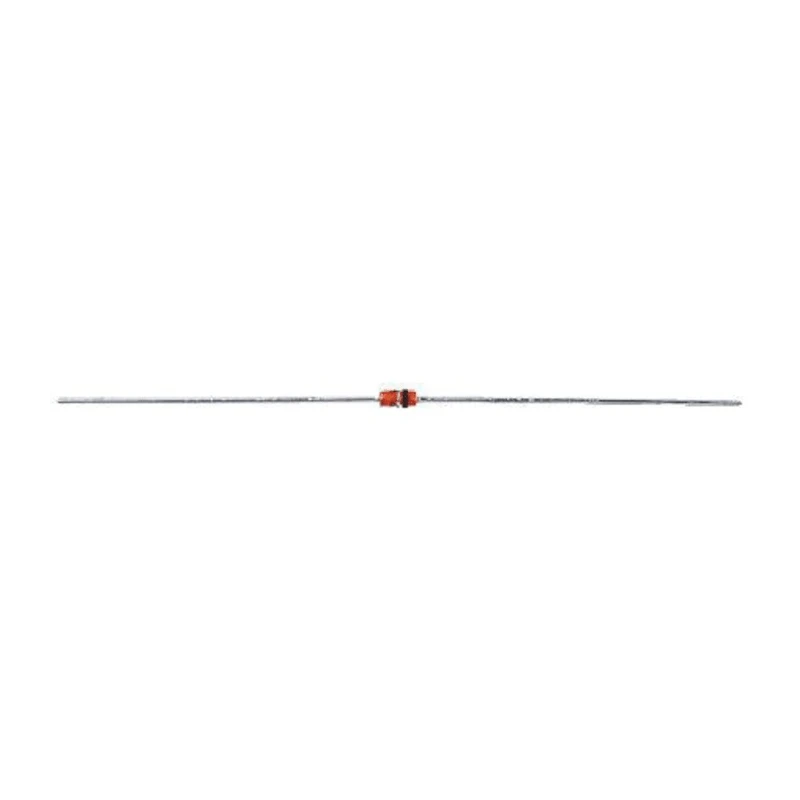

Vishay Zener Diode 10 V 500 mW Through Hole 2-Pin SOD-27 TZX10D-TR

Name: Vishay Zener Diode 10 V 500 mW Through Hole 2-Pin SOD-27 TZX10D-TR
Brand: Vishay
SKU: 133303
Price: 0.04 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Length	3.9mm
Model	TZX10D-TR
Mount Type	Through Hole
Series	TZX
Maximum Operating Temperature	175°C
Package Type	SOD-27
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	1μA
Nominal Zener Voltage Vz	10V
Zener Type	Voltage Regulator
Maximum Zener Impedance	25Ω

Key Features

This single-element diode features a voltage regulator Zener type with ±2% voltage tolerance.
The diode supports a maximum power dissipation of 500 mW, suitable for small signal stabilization.
It has a test current of 5 mA and a maximum Zener impedance of 25 Ω, ensuring precise voltage regulation.
The diode operates within a temperature range of -65°C to 175°C, supporting reliable operation in harsh environments.
Its maximum reverse leakage current is limited to 1 μA to reduce leakage losses.
The device is RoHS compliant and meets the automotive standard AEC-Q101 for quality assurance.
Small form factor with a length of 3.9 mm allows easy integration in compact circuits.

Product Description

Vishay TZX10D-TR is a high-stability 10 V Zener diode rated for 500 mW power dissipation, housed in a compact 2-pin SOD-27 through hole package. Designed for reliable voltage regulation applications, this diode provides excellent reverse characteristic sharpness and low noise performance, making it ideal for sensitive electronic circuits.

The device is built to maintain stable Zener voltage with ±2% tolerance and a test current of 5 mA, ensuring consistent operation. Its low maximum reverse leakage current of 1 μA minimizes current losses and heats dissipation in low-power applications.

This diode supports a broad operating temperature range from -65°C to 175°C, suitable for automotive and industrial environments. Certified to the AEC-Q101 automotive standard and RoHS compliant, it guarantees quality and environmental safety.

The TZX series from Vishay Semiconductor is known for long-term stability and reliability in voltage regulation tasks, ideal for power supplies and protection circuits in electronic, automotive, and industrial equipment.

This single-element Zener diode provides precise voltage regulation with 10 V nominal voltage. Its 500 mW maximum power dissipation supports small signal applications. Chosen for low noise and sharp reverse characteristic performance.

Operates safely within -65°C to 175°C temperature range. AEC-Q101 and RoHS certifications ensure automotive-grade quality and eco-friendly standards. Compact 3.9 mm package length enables ease of design integration. Explore more semiconductor components and discrete Zener Diodes at EnvMart for your industrial, electronic, and automotive manufacturing needs.
