Nexperia Bilateral Switch 2 CMOS Dual SPST Multiplexer 8-Pin VSSOP 74LVC2G66DC,125

Name: Nexperia Bilateral Switch 2 CMOS Dual SPST Multiplexer 8-Pin VSSOP 74LVC2G66DC,125
Brand: Nexperia
SKU: 133211
Price: 0.36 USD
Availability: InStock



Category Multiplexer & Demultiplexer ICs Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	850μm
Length	2.4mm
Model	74LVC2G66DC,125
Width	2.1mm
Mount Type	Surface
Compatibility	Input LVTTL/TTL, Output LVCMOS
Output type	CMOS/TTL
Series	74LVC2G66
Configuration	Dual SPST
Maximum Operating Temperature	125°C
Package Type	VSSOP
Minimum Operating Temperature	-40°C
Operating Voltage	1.65 to 5.5 V
Pin Count	8
Number of Elements per Chip	2
Maximum Supply Voltage	5.5V
Logic Family	CMOS
Minimum Supply Voltage	1.65V
Multiplexer/Demultiplexer	Multiplexer
Maximum On State Resistance	195Ω

Key Features

Operates within a supply voltage range of 1.65V to 5.5V.
Compact 8-pin VSSOP surface mount package for space-saving PCB designs.
Includes 2 independent switches with a dual SPST configuration.
Maximum on-state resistance of 195 ohms ensuring minimal signal loss.
Wide operating temperature range from -40°C to 125°C for diverse environments.
CMOS logic family compatible with input LVTTL/TTL and output LVCMOS.
Ideal for multiplexer and demultiplexer IC applications in electronic circuits.
Non-automotive standard device suitable for general electronic applications.

Product Description

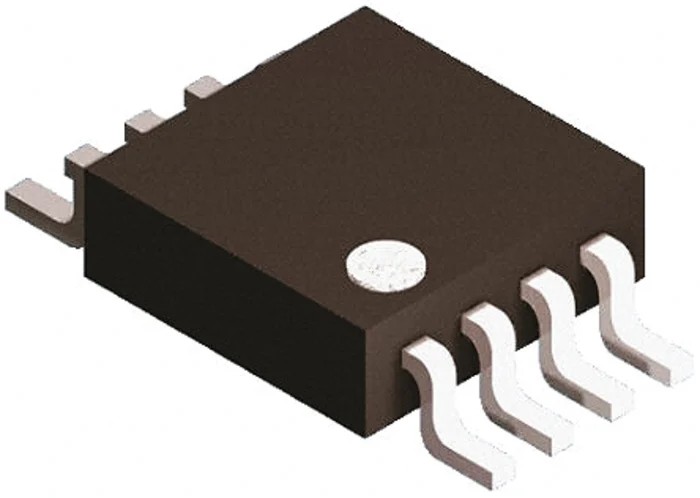

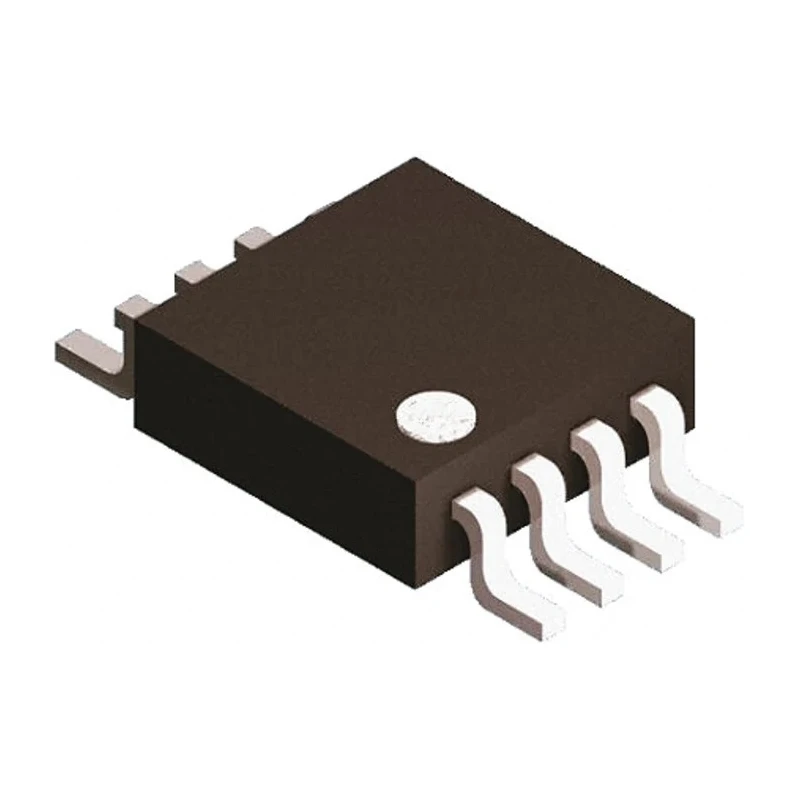

Nexperia 74LVC2G66DC,125 bilateral switch is a dual SPST analogue switch integrated circuit housed in a compact 8-pin VSSOP surface mount package. It belongs to the 74LVC family of low-voltage CMOS logic devices and operates efficiently between 1.65V and 5.5V supply voltages.

This device features two independent switches with maximum on-state resistance of 195 ohms, making it suitable for low-voltage signal multiplexing and demultiplexing applications where signal integrity is critical.

The bilateral switch supports compatibility with input LVTTL/TTL logic levels and offers CMOS/TTL output type performance, enabling seamless integration with various digital circuit designs.

It is engineered to function reliably over a broad temperature range from -40°C up to 125°C, ideal for industrial, consumer electronics, and laboratory applications requiring durable semiconductor components.

Physical dimensions include a height of 850 μm, length of 2.4 mm, and width of 2.1 mm, fitting compact printed circuit boards. The surface mount type package facilitates automated assembly processes improving manufacturing efficiency.

This bilateral switch is designed for a wide array of electronic projects, including signal routing, switch matrix design, and digital signal processing modules, enhancing versatile multiplexer/demultiplexer capabilities.

Operates on low supply voltages ranging from 1.65V to 5.5V. Dual SPST configuration with 2 switches per chip for flexible circuit design. Surface mount 8-pin VSSOP package for compact layouts. Maximum on-state resistance of 195 ohms for low signal degradation.

Wide temperature tolerance from -40°C to 125°C for industrial use. CMOS compatibility with LVTTL/TTL inputs and LVCMOS outputs. Compact dimensions: 2.4 mm length, 2.1 mm width, 850 μm height. Non-automotive standard device suitable for general purpose.

Reliable and new condition device from Nexperia's 74LVC family. Explore more high-quality semiconductors and logic ICs in the EnvMart Electronics & Electricals category for advanced industrial and laboratory solutions.
