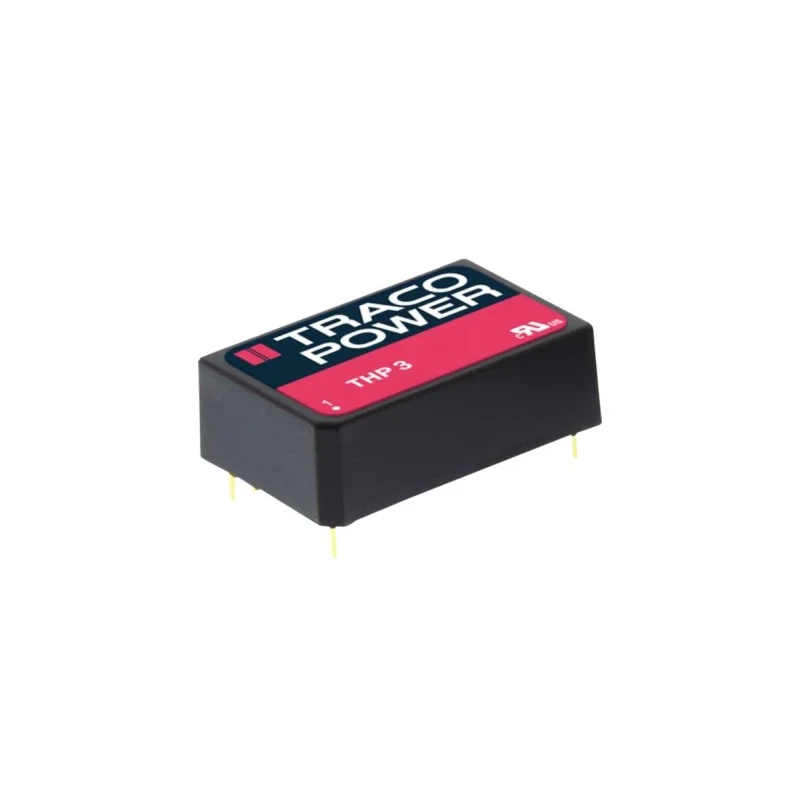

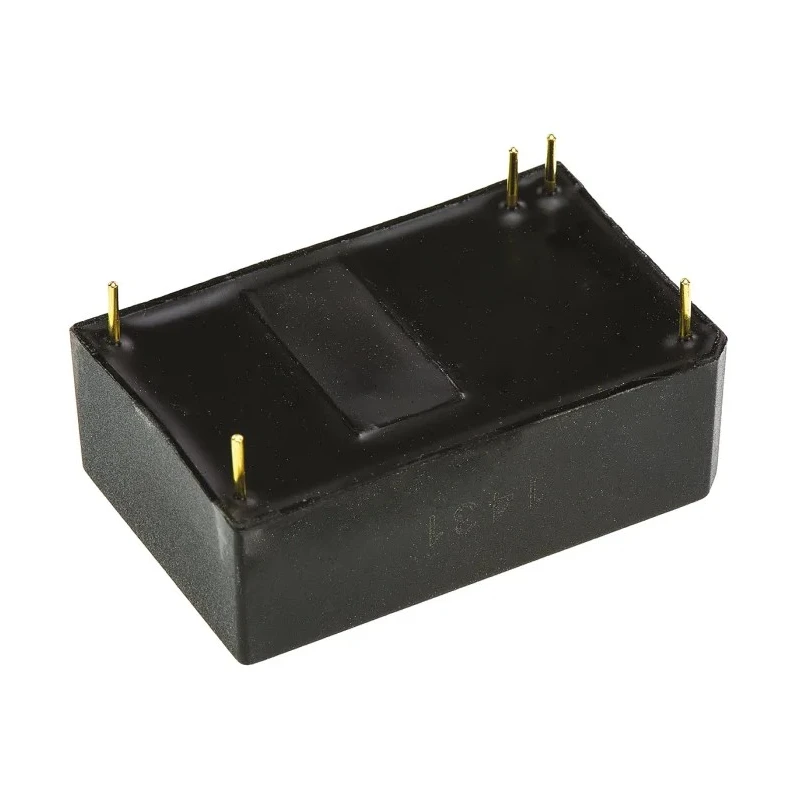

TRACOPOWER DC/DC Converter THP 3-7211, 5V DC Output, 600mA, 160V DC Max Input, 3W Power, PCB Mount, 85°C Max Temperature

TRACOPOWER THP 3-7211 DC/DC Converter is a high-performance 3W power supply module designed for regulated and isolated DC voltage conversion. This single output, PCB mounted module features a compact DIL-24 package with a standard pinout. It operates efficiently over a wide input range from 36V DC to 160V DC and provides a stable 5V DC output capable of 600mA current.

This converter offers superior isolation of up to 4kV DC, making it suitable for safety-critical applications including railway systems, medical devices, and industrial instrumentation. The unit meets stringent safety standards such as UL 60601-1 for medical equipment and IEC/EN 60950-1 for industrial power supplies.

The converter is engineered for harsh environments with an operating temperature range from -40°C to 85°C, ensuring stable performance over temperature extremes. The high MTBF of over one million hours underscores its reliability for continuous operation.

Its full SMD design and exclusive use of ceramic capacitors contribute to long product life and compliance with RoHS environmental directives. The converter features continuous short circuit protection and meets EN55022A EMI standards without external components.

The THP 3 series is ideal for applications demanding reinforced and supplementary insulation and delivers efficient power conversion with up to 78% efficiency. Supports maximum input voltage of 160V DC and minimum input voltage of 36V DC.

Provides regulated 5V DC output voltage with 600mA current. Compact DIL package suitable for PCB mounting with 7 pins. Maximum output power rating of 3W ensures efficient energy conversion. High isolation voltage of 4kV DC for enhanced safety and noise immunity.

Operating temperature range from -40°C to 85°C for reliable performance in harsh environments. MTBF rated at 1,000,000 hours ensuring long-lasting operation. Industrial-grade converter designed for transportation, medical, and instrumentation applications.

RoHS compliant and lead-free design for environmental safety. Efficiency of 78% supports effective power management.

This DC/DC Converter is a robust choice for designers requiring a reliable isolated power supply in electronic systems across industrial, medical, transportation, and instrumentation sectors. Explore EnvMart's extensive TRACOPOWER range for compatible components and accessories.
