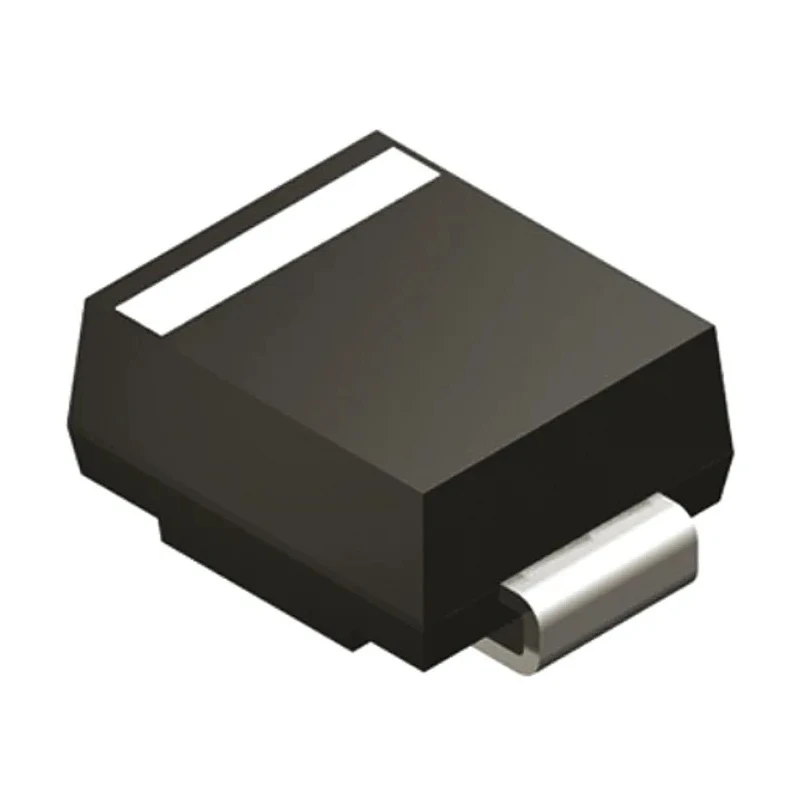

Vishay 1-Element Bi-Directional TVS Diode 600 W Peak Pulse Power, 2-Pin DO-214 Package P6SMB16CA-E3/52
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | P6SMB16CA-E3/52 |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | P6SMB |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 22.5V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 15.2V |
| Maximum Reverse Stand-off Voltage Vwm | 13.6V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 26.7A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single diode configuration designed for bi-directional transient voltage suppression.
- Surface mount package type DO-214 ensures easy PCB integration.
- Minimum breakdown voltage of 15.2 V and maximum reverse stand-off voltage of 13.6 V.
- Clamping voltage at 22.5 V with a peak pulse current rating of 26.7 A.
- Operates over wide temperature range from -65°C to 150°C.
- Low maximum reverse leakage current of 1 μA for efficient operation.
- Designed with AEC-Q101 automotive standard for enhanced reliability.
- Provides electrostatic discharge (ESD) protection for sensitive electronic components.
Product Description
Vishay P6SMB16CA-E3/52 is a 1-element bi-directional Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage spikes and transient surges up to 600 W of peak pulse power dissipation. It comes in a low profile surface mount DO-214 package with 2 pins, enabling efficient PCB mounting in compact circuit designs.
This diode configuration features a minimum breakdown voltage of 15.2 V and a maximum reverse stand-off voltage of 13.6 V, suitable for clamping voltage spikes at a maximum of 22.5 V, ensuring sensitive components are safeguarded. The device supports a maximum peak pulse current of 26.7 A and maintains low leakage current of 1 μA for minimal power loss.
Operating temperature range from -65°C to 150°C enables robust performance under extreme environmental conditions found in industrial, automotive, and consumer electronic applications. Additionally, the diode complies with the automotive AEC-Q101 standard, emphasizing reliability and quality for vehicle electronics protection.
The compact physical size with length 4.57 mm, width 3.94 mm, and height 2.24 mm allows its use in space-constrained designs. The ESD protection capability further adds value for safeguarding sensitive devices against electrostatic discharge in manufacturing and operational environments.
The Vishay P6SMB series is a proven line of transient voltage suppressors widely used in industrial, automotive, and telecommunications sectors to ensure electronic component longevity and stable operation.
Single diode configuration designed for bi-directional transient voltage suppression. Surface mount package type DO-214 ensures easy PCB integration. Minimum breakdown voltage of 15.2 V and maximum reverse stand-off voltage of 13.6 V.
Clamping voltage at 22.5 V with a peak pulse current rating of 26.7 A. Operates over wide temperature range from -65°C to 150°C. Low maximum reverse leakage current of 1 μA for efficient operation. Designed with AEC-Q101 automotive standard for enhanced reliability.
Compact dimensions: length 4.57 mm, width 3.94 mm, height 2.24 mm. Provides electrostatic discharge (ESD) protection for sensitive electronic components. Manufactured in China under Vishay Semiconductor series P6SMB. Explore more Vishay TVS Diodes and protect your electronic circuits effectively by browsing the Semiconductor category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay P6SMB16CA-E3/52 has a peak pulse power dissipation of 600 W.
It features a minimum breakdown voltage of 15.2 V.
The maximum reverse stand-off voltage is 13.6 V.
The clamping voltage is rated at 22.5 V.
This model supports a maximum peak pulse current rating of 26.7 A.
It operates over a wide temperature range from -65°C to 150°C.
The dimensions are 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height.
The maximum reverse leakage current is 1 μA.
Yes, it is designed with the AEC-Q101 automotive standard for enhanced reliability.
It comes in a surface mount DO-214 package type.
This diode configuration is a single element design.
It provides electrostatic discharge (ESD) protection for sensitive electronic components.
