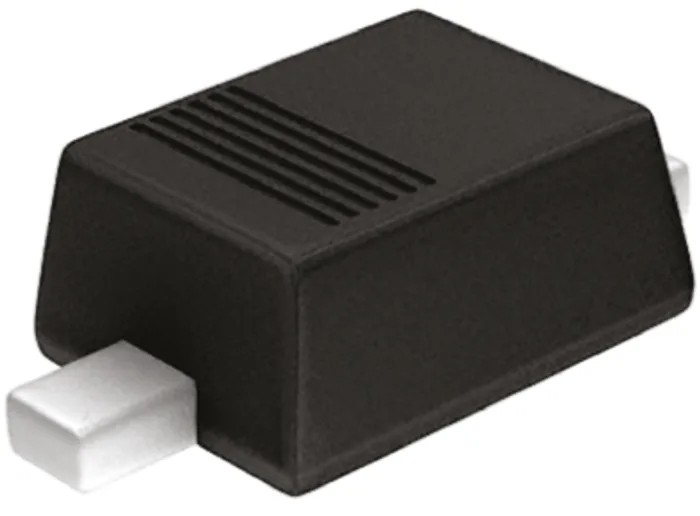

onsemi 3.3 V 200 mW Single Element Surface Mount Zener Diode 2-Pin SOD-323F MM3Z3V3B

Free Delivery in India | Lowest Global Shipping Charges

onsemi 3.3 V 200 mW Single Element Surface Mount Zener Diode 2-Pin SOD-323F MM3Z3V3B

Name: onsemi 3.3 V 200 mW Single Element Surface Mount Zener Diode 2-Pin SOD-323F MM3Z3V3B
Brand: onsemi
SKU: 132596
Price: 0.06 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1mm
Length	2.7mm
Model	MM3Z3V3B
Mount Type	Surface
Series	MM3
Maximum Operating Temperature	150°C
Package Type	SOD-323F
Minimum Operating Temperature	65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	200mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	4.5μA
Nominal Zener Voltage Vz	3.3V
Maximum Zener Impedance	89Ω
Surface Mount case	SOD-323F

Key Features

This Zener diode features a 2-pin design suitable for surface mount applications.
The device offers a Zener voltage tolerance of ±2% for precise voltage regulation.
Maximum power dissipation is rated at 200 mW ensuring reliable operation under load.
The package height and length are 1 mm and 2.7 mm respectively, enabling space saving on circuit boards.
It operates within temperature limits from −65°C up to 150°C for industrial environments.
The diode's maximum reverse leakage current is 4.5μA, ensuring minimal leakage in circuits.
The maximum Zener impedance is 89 ohms, contributing to stable voltage characteristics.
Test current is standardized at 5 mA for performance verification.

Product Description

onsemi MM3Z3V3B is a single element Zener diode designed for surface mount applications, featuring a nominal Zener voltage of 3.3 V and a maximum power dissipation of 200 mW. Packaged in the compact SOD-323F case, this 2-pin diode is ideal for voltage regulation and protection in electronic circuits.

Its precise voltage tolerance of ±2% ensures reliable reference voltage performance, making it suitable for a wide range of industrial, commercial, and consumer electronics. The device is capable of operating at temperatures from −65°C to 150°C, supporting durability in harsh environments.

The diode exhibits a maximum reverse leakage current of 4.5μA and a Zener impedance of 89 ohms, which helps maintain stable voltage regulation with limited power loss. The typical test current for this device is 5 mA, aligning with standard testing procedures.

The SOD-323F surface mount case supports efficient automated placement on printed circuit boards, reducing assembly costs and saving space. With dimensions of 1 mm in height and 2.7 mm in length, it is suitable for compact electronic designs.

This Zener diode offers precise voltage regulation with ±2% tolerance. 200 mW maximum power dissipation assures operation at moderate power levels. Compact 2-pin SOD-323F surface mount package reduces board space requirements.

Wide operating temperature range from −65°C to 150°C for reliability. Low maximum reverse leakage current of 4.5μA minimizes power loss. Stable Zener impedance of 89 ohms supports consistent voltage output. Test current of 5 mA validates device performance.

Ideal for industrial, commercial, and general electronic circuit applications. Non-automotive standard without specific certifications.

This MM3Z3V3B zener diode is commonly used in power regulation, voltage reference circuits, and protection devices within semiconductor assemblies in electronics manufacturing and design.
