| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.91mm |
| Length | 4.56mm |
| Model | 1N5235BTR |
| Mount Type | Through Hole |
| Series | 1N52 |
| Maximum Operating Temperature | 200°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 20mA |
| Maximum Reverse Leakage Current | 3μA |
| Nominal Zener Voltage Vz | 6.8V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 750Ω |

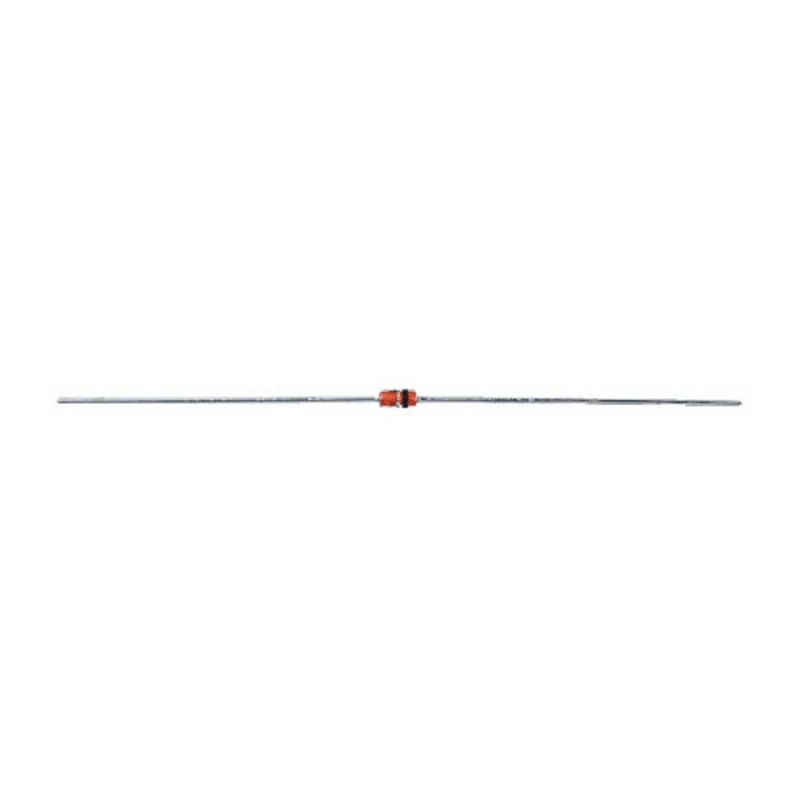

onsemi 1N5235BTR is a high-quality 6.8 V general purpose Zener diode designed for discrete semiconductor applications requiring reliable voltage regulation. This single-element diode is housed in a Through Hole 2-Pin SOD-27 package, making it easy to mount on printed circuit boards with space-saving considerations.
With a maximum power dissipation of 500 mW, this diode is suitable for handling moderate power levels in electronic circuits. The device operates efficiently in temperature ranges from -65°C to 200°C, making it robust for various industrial and commercial applications including power supplies, voltage reference circuits, and stabilization circuits.
The 1N5235BTR Zener diode features a nominal voltage of 6.8 V with a tolerance of ±5%, ensuring consistent voltage regulation. Its impedance of up to 750 Ω and very low reverse leakage current of 3 μA contribute to reliable and stable performance. The diode is tested at a current of 20 mA to meet standard electrical parameters.
This onsemi Zener diode finds applications in electronic components assemblies, semiconductor devices, power electronics, and laboratory setups. It is designed to meet the demands of robust electric devices where precision and durability are required.
Single diode configuration suitable for voltage regulation. Nominal Zener voltage of 6.8 V with ±5% tolerance. Maximum power dissipation of 500 mW. Through Hole mount type in compact SOD-27 package. Operating temperature range from -65°C to 200°C.
Low reverse leakage current of 3 μA. Zener impedance up to 750 Ω for general purpose use. 2-pin configuration for standard connection. Test current rating 20 mA. Series 1N52 for consistent performance.
This product is ideal for industrial, electronic manufacturing, laboratory testing, and electronic assembly uses. Explore more semiconductor and Zener diode options on EnvMart for your design and production needs.
Explore more products in our Zener Diodes category.
