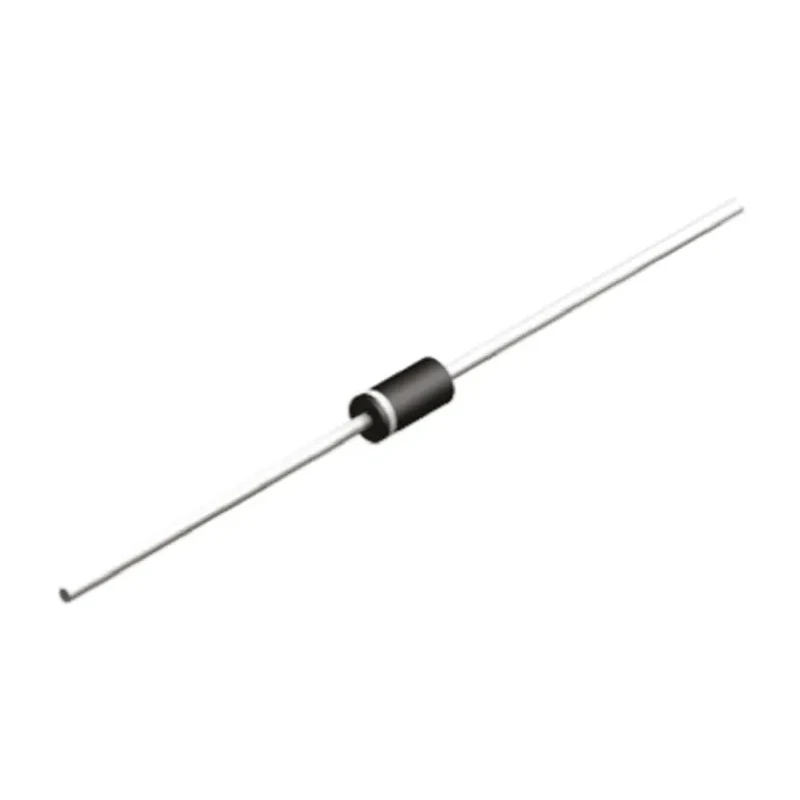

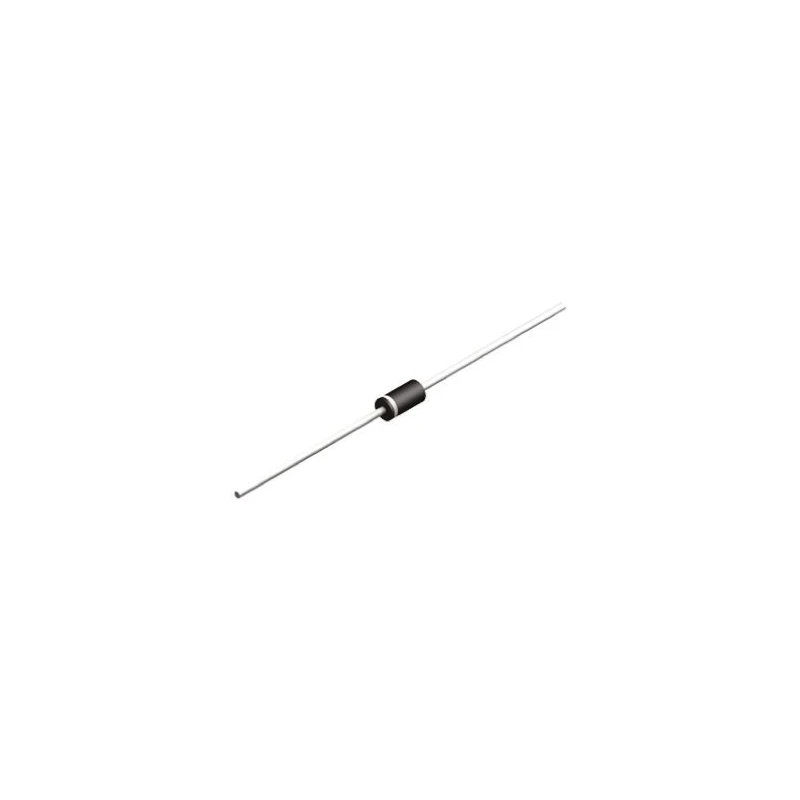

onsemi 1 W 30 V General Purpose Zener Diode, Single Through Hole 2-Pin DO-41 1N4751ATR

Free Delivery in India | Lowest Global Shipping Charges

onsemi 1 W 30 V General Purpose Zener Diode, Single Through Hole 2-Pin DO-41 1N4751ATR

Name: onsemi 1 W 30 V General Purpose Zener Diode, Single Through Hole 2-Pin DO-41 1N4751ATR
Brand: onsemi
SKU: 132535
Price: 0.07 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	2.72mm
Length	5.2mm
Model	1N4751ATR
Mount Type	Through Hole
Series	1N47
Maximum Operating Temperature	200°C
Package Type	DO-41
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	1W
Diode Configuration	Single
Test Current It	8.5mA
Maximum Reverse Leakage Current	5μA
Nominal Zener Voltage Vz	30V
Zener Type	General Purpose
Maximum Zener Impedance	40Ω

Key Features

The diode features a single element per chip configuration.
It supports a maximum power dissipation of 1 watt.
The test current for the diode is 8.5 mA, ensuring effective voltage regulation.
The Zener impedance is 40 ohms maximum, offering stable voltage characteristics.
The maximum reverse leakage current is limited to 5 microamperes.
The operating temperature range spans from -65°C to 200°C for reliable performance.
It is designed as a through hole component with a compact DO-41 package type.
The diode height is 2.72 mm and length is 5.2 mm, suitable for standard PCB layouts.

Product Description

onsemi model 1N4751ATR is a high-reliability, general purpose Zener diode rated for 1 watt power dissipation and a nominal Zener voltage of 30 volts with a tolerance of ±5%. Packaged in a DO-41 2-pin through hole format, it is suitable for various electronic circuit applications.

This single element diode provides stable voltage regulation by maintaining its voltage across a range of currents, with a maximum impedance of 40 ohms and a test current of 8.5 mA. It features a maximum reverse leakage current of 5 microamperes, ensuring minimal power loss during operation.

The operational temperature range of -65°C to +200°C allows the device to perform reliably in demanding industrial, commercial, and laboratory environments. Its compact dimensions of 2.72 mm height and 5.2 mm length facilitate easy integration into through hole PCBs.

Typical applications include voltage reference, voltage regulation, and transient voltage suppression in power supplies, amplifiers, and control circuits. The diode features a single element chip configuration ensuring precise voltage control.

Its maximum power dissipation capacity of 1 watt supports moderate power applications. Test current rating of 8.5 mA provides standardized measurement conditions. Maximum Zener impedance of 40 ohms enhances voltage stability.

Reverse leakage current limited to 5μA reduces unintended current flow. Wide operating temperature range from -65°C to 200°C ensures versatility. DO-41 through hole package type offers easy handling and soldering. Compact size with 2.72 mm height and 5.2 mm length is suitable for multiple PCB designs.

This onsemi 1N4751ATR Zener diode is well-suited for electronic design and maintenance professionals seeking durable and accurate voltage regulation components. Explore our comprehensive range of semiconductor components at EnvMart for your industrial, laboratory, and commercial electronic needs.

Explore more products in our Zener Diodes category.
