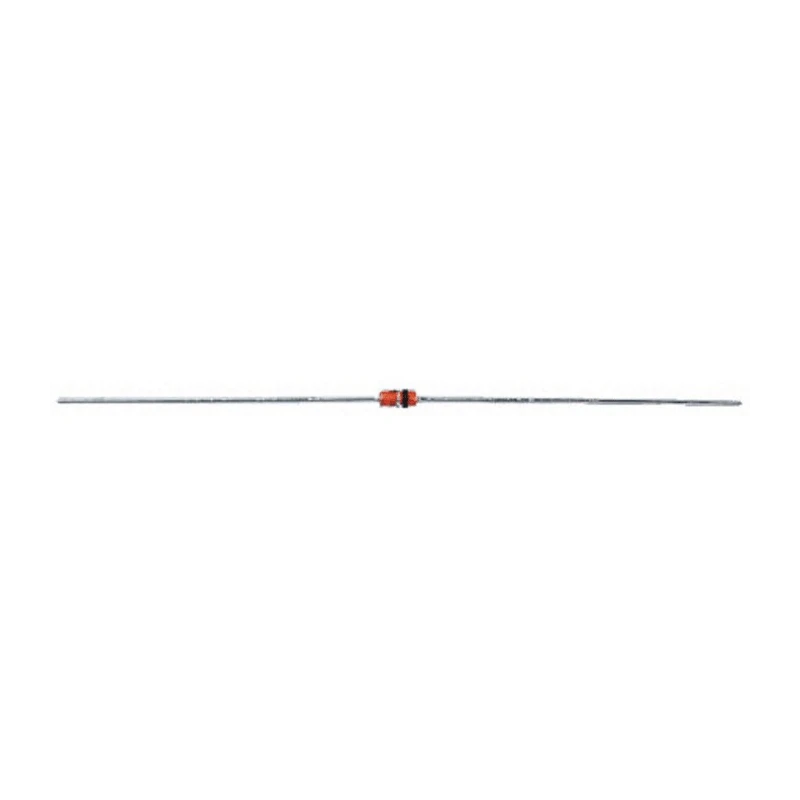

onsemi 3.3 V General Purpose Zener Diode 500 mW Through Hole 2-Pin SOD-27 1N5226BTR

The onsemi 1N5226BTR Zener Diode is a general purpose semiconductor device designed to provide voltage regulation at a nominal Zener voltage of 3.3 V with 5% tolerance. It has a power dissipation rating of 500 mW and is packaged in a through hole 2-pin SOD-27 format suitable for straightforward PCB mounting and integration.

This Zener diode operates reliably within a wide temperature range from -65°C up to 200°C, making it suitable for various industrial and electronic equipment applications that require robust thermal resilience.

The diode exhibits a low maximum reverse leakage current of 25 μA and a maximum Zener impedance of 28 ohms, ensuring stable voltage regulation characteristics at the specified test current of 20 mA. It features a single element chip configuration optimized for consistent performance in voltage stabilization roles.

The physical dimensions, including a length of 4.56 mm and height of 1.91 mm, allow for compact circuit designs without compromising functional reliability. This product is ideal for electronic circuits requiring precise voltage reference and protection, including power supply regulation, voltage clamping, and signal conditioning applications.

This diode features a 2-pin through hole SOD-27 package designed for easy PCB mounting. Nominal Zener voltage is 3.3 V with ±5% tolerance ensuring voltage regulation capability. Maximum power dissipation of 500 mW allows stable operation in low-power circuits.

Operating temperature ranges from -65°C to 200°C making it suitable for industrial conditions. The device has a maximum reverse leakage current of 25 μA at rated voltage. Maximum Zener impedance is 28 Ω, providing stable voltage characteristics.

Test current is specified at 20 mA for standard conditions. Single diode configuration with 1 element per chip for reliable performance. No automotive standard approvals, intended for general electronic applications. Physical dimensions are 4.56 mm length and 1.91 mm height for compact assembly.

This onsemi Zener diode supports electronic manufacturing, prototyping, and repair activities requiring robust and reliable voltage reference components. It is suited for use in industrial control systems, power supply circuits, signal conditioning, and other semiconductor-based applications.
