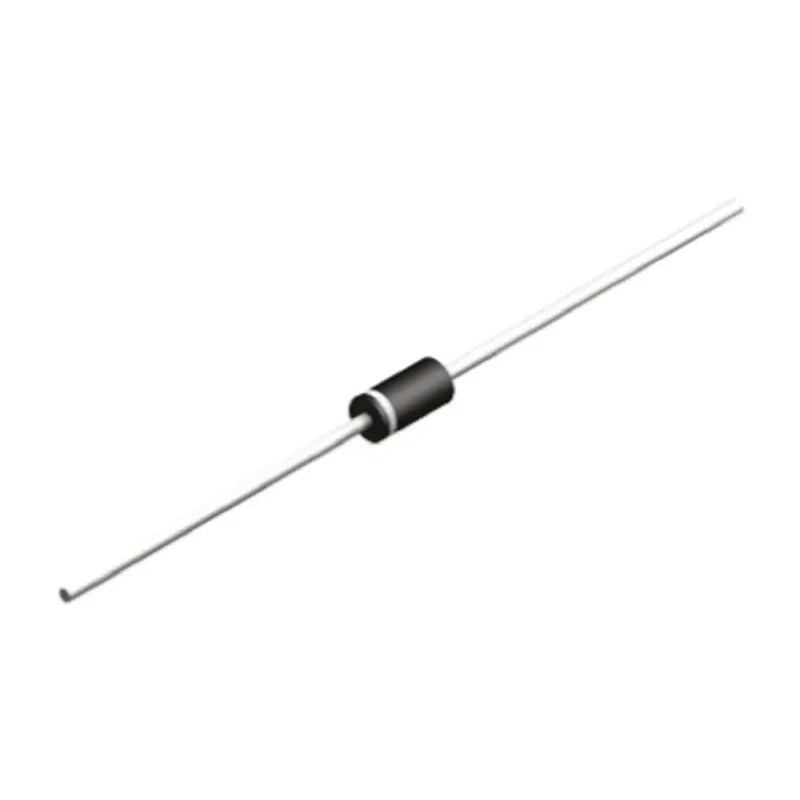

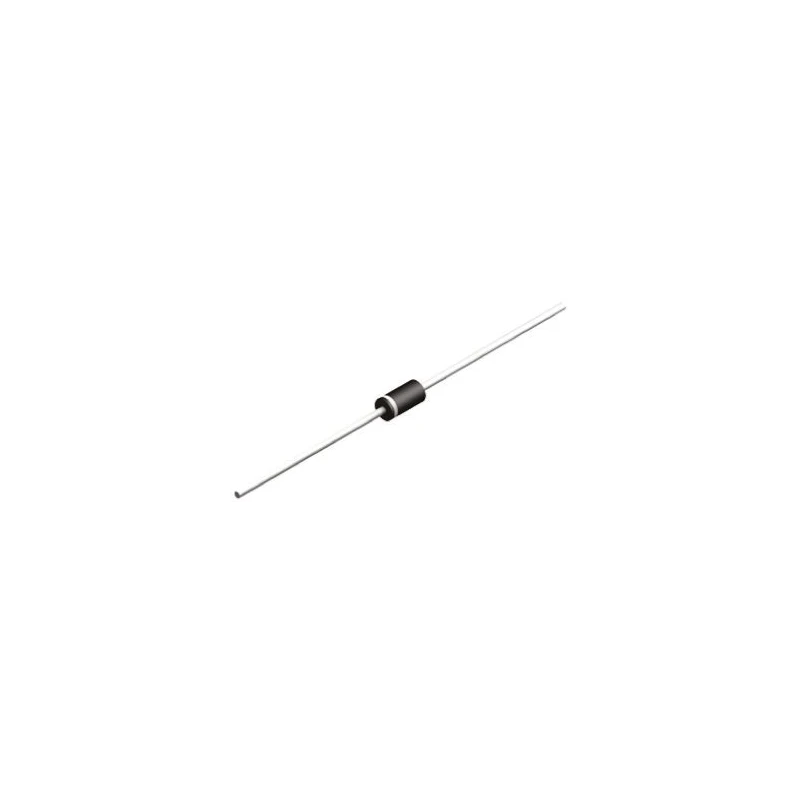

onsemi 6.8 V 1 W General Purpose Zener Diode Through Hole 2-Pin DO-41 1N4736ATR

Free Delivery in India | Lowest Global Shipping Charges

onsemi 6.8 V 1 W General Purpose Zener Diode Through Hole 2-Pin DO-41 1N4736ATR

Name: onsemi 6.8 V 1 W General Purpose Zener Diode Through Hole 2-Pin DO-41 1N4736ATR
Brand: onsemi
SKU: 132532
Price: 0.07 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	2.72mm
Length	5.2mm
Model	1N4736ATR
Mount Type	Through Hole
Series	1N4736A
Maximum Operating Temperature	200°C
Package Type	DO-41
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	1W
Diode Configuration	Single
Test Current It	37mA
Maximum Reverse Leakage Current	10μA
Nominal Zener Voltage Vz	6.8V
Zener Type	General Purpose
Maximum Zener Impedance	3.5Ω

Key Features

Nominal Zener voltage is 6.8 volts with ±5% tolerance.
Maximum power dissipation of 1 watt suitable for various industrial applications.
Designed as a single diode configuration with 2 pins for through hole mounting.
Maximum reverse leakage current of 10 microamperes ensures high efficiency.
Test current specified at 37 milliamps for accurate regulation performance.
Maximum operating temperature rated at 200°C enhances durability.
Compact dimensions with length 5.2 mm and height 2.72 mm for easy PCB integration.
Zener impedance at maximum 3.5 ohms supports stable voltage regulation.

Product Description

onsemi 1N4736ATR is a general purpose Zener diode designed for stable voltage regulation in electronic circuits. Featuring a nominal Zener voltage of 6.8 V and power dissipation of 1 W, this diode fits a 2-pin DO-41 through hole package enabling easy mounting on printed circuit boards.

The device has a single diode configuration and offers reliable performance with a tolerance of 5% on the Zener voltage. Its maximum operating temperature is 200°C, ensuring robust operation in industrial and laboratory environments.

Technical highlights include a test current of 37 mA and maximum reverse leakage current of 10 µA, contributing to its precision in voltage regulation applications. The compact size, with a length of 5.2 mm and height of 2.72 mm, allows seamless integration into compact electronic assemblies.

This Zener diode sees wide use in power supply designs, voltage reference circuits, surge protectors, and other semiconductor applications that require consistent voltage stability.

Nominal Zener voltage 6.8 V with ±5% tolerance. Maximum power dissipation 1 W. Through hole 2-pin DO-41 package. Maximum reverse leakage current 10 µA. Test current 37 mA. Maximum operating temperature 200 °C. Compact dimensions 5.2 mm length × 2.72 mm height.

General purpose Zener diode for electronic circuit stability.

This product is ideal for industrial, laboratory, and manufacturing applications requiring reliable voltage regulation components. Explore more industrial semiconductor components in the Electronics & Electricals category at EnvMart.

Explore more products in our Zener Diodes category.
