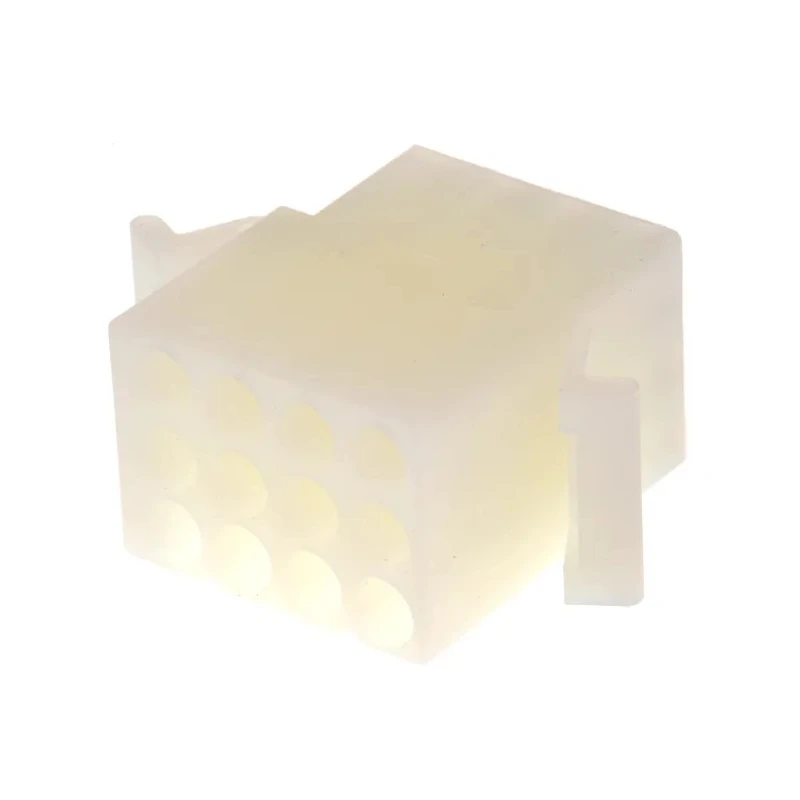

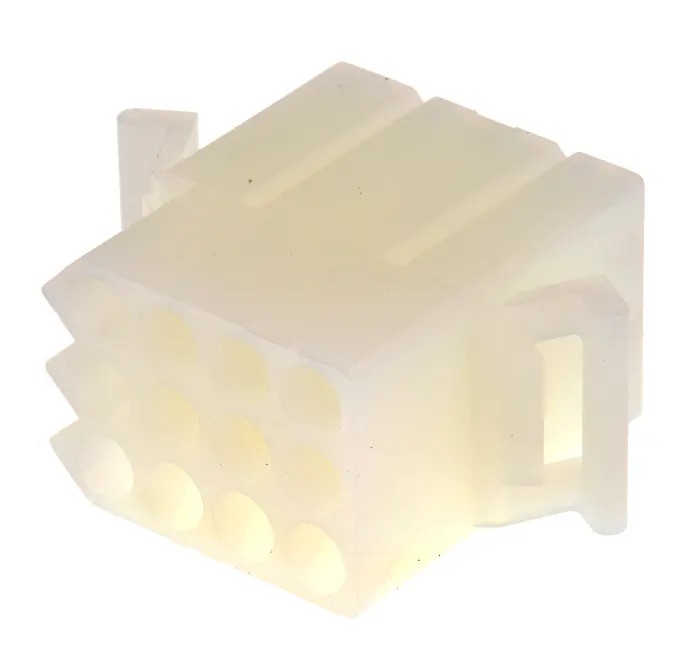

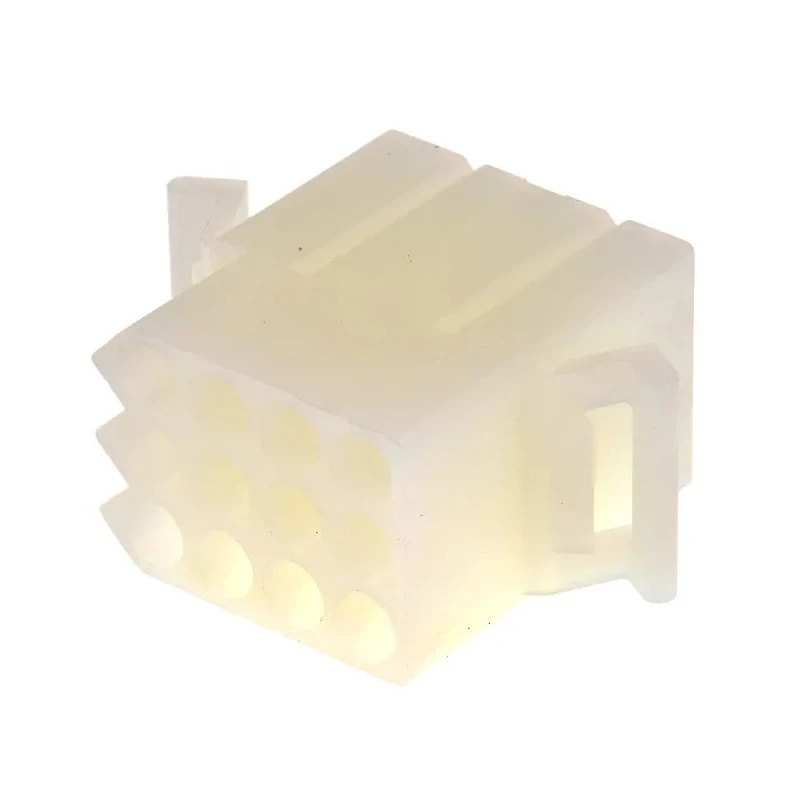

Molex Standard .093" Female Connector Housing, 5.03 mm Pitch, 12 Way, 3 Row Straight 03-09-1121
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 22.1mm |
| Width | 18.8mm |
| Mount Type | Panel |
| Housing Material | Nylon |
| Series | Standard .093" |
| Number of Rows | 3 |
| Pitch | 5.03mm |
| Number of Contacts | 12 |
| Connector Gender | Female |
Key Features
- Offers 12 contact positions arranged in 3 rows for reliable connections.
- Features a straight orientation and panel mount type for stable installation.
- Constructed with durable nylon housing material for strength and insulation.
- Designed to interface with multiple crimp terminal types for versatile use.
- Has precise 5.03 mm pitch to ensure compatibility with .093" diameter terminals.
- Compact dimensions include 22.1 mm length and 18.8 mm width for space-efficient design.
- Manufactured in the United States ensuring high-quality standards.
- Suitable for electronic and power connector applications requiring robust housing.
Product Description
Molex 03-09-1121 Standard .093" Female Connector Housing is a high-quality electronic connector housing designed with 12 contacts arranged in 3 rows with a 5.03 mm pitch. It is made from robust nylon housing material, ensuring durability and electrical insulation for reliable performance in demanding industrial and electronic environments.
This connector housing supports a straight orientation and features a panel mount type, facilitating secure attachment in various assemblies. It is compatible with a range of crimp terminals including Crimp Terminal 1189, 1190, 1433, 1973, Female Crimp Terminal 1381, Female PC Tail Terminal 1377, Male Crimp Terminals 1380, 1434, and Male PC Tail Terminal 1376, making it flexible for multiple wiring configurations.
The precise 5.03 mm pitch and compact size with dimensions of 22.1 mm length and 18.8 mm width provide space efficiency while maintaining high connection integrity. This product is manufactured in the United States, adhering to strict quality control standards.
This connector housing is widely used in electronics, power connectors, and panel wiring applications within industrial, manufacturing, and electronic assembly sectors. Its design ensures stable connections for reliable signal and power transmission.
Offers 12 contact positions arranged in 3 rows for reliable connections. Features a straight orientation and panel mount type for stable installation. Constructed with durable nylon housing material for strength and insulation.
Designed to interface with multiple crimp terminal types for versatile use. Has precise 5.03 mm pitch to ensure compatibility with .093" diameter terminals. Compact dimensions include 22.1 mm length and 18.8 mm width for space-efficient design.
Manufactured in the United States ensuring high-quality standards. Suitable for electronic and power connector applications requiring robust housing. Explore the full range of Connector Housings and components at EnvMart to optimize your electronic system assemblies efficiently.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 5.03 mm, ensuring compatibility with .093" diameter terminals.
It offers 12 contact positions arranged in 3 rows for reliable connections.
The compact dimensions include a length of 22.1 mm and a width of 18.8 mm.
The housing is constructed from durable nylon material, providing strength and electrical insulation.
It features a panel mount type, facilitating secure attachment in various assemblies.
This model has a straight orientation, which aids in installation and connection.
It is designed to interface with multiple crimp terminal types, including Crimp Terminal 1189, 1190, 1433, and others.
It is manufactured in the United States, adhering to high-quality standards.
This connector housing is suitable for electronic and power connector applications within industrial, manufacturing, and electronic assembly sectors.
This model features 3 rows for contact positions, enhancing its connection capabilities.
The connector gender of this housing is female, designed to accommodate compatible terminals.
It belongs to the Standard .093" series, which is characterized by its specific pitch and contact arrangement.
