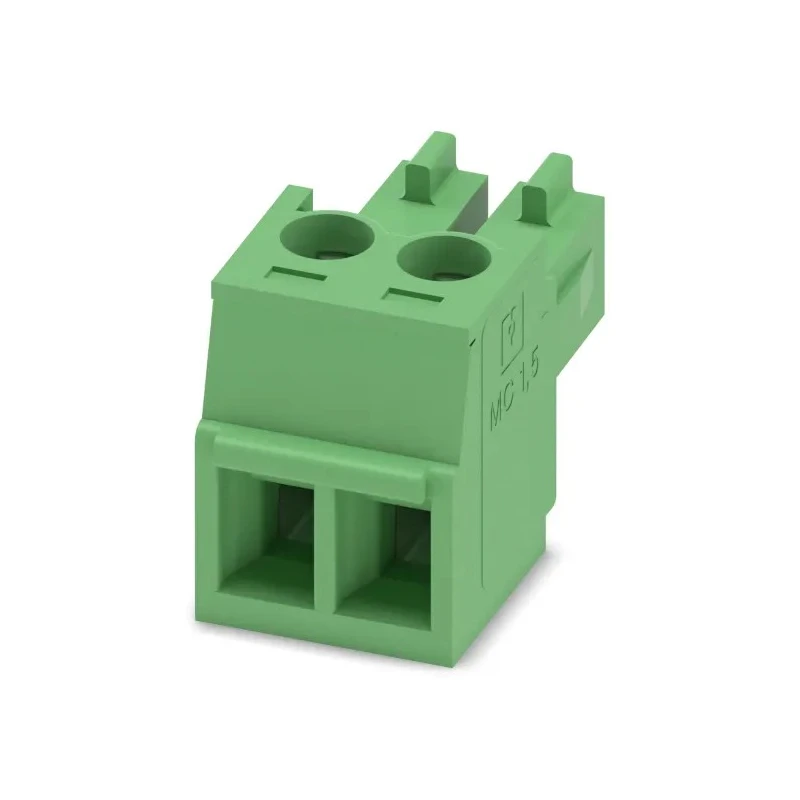

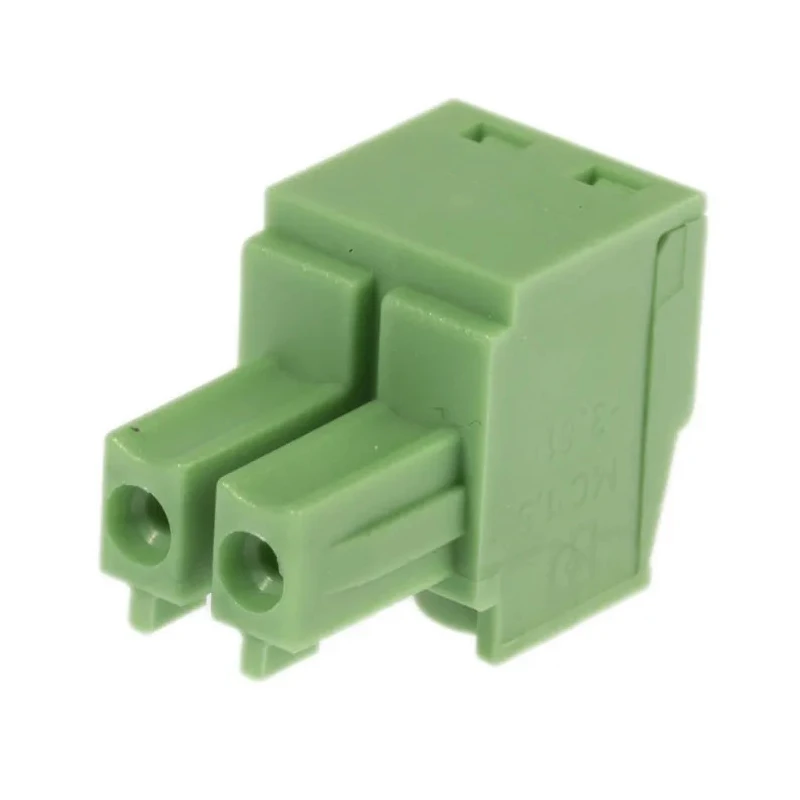

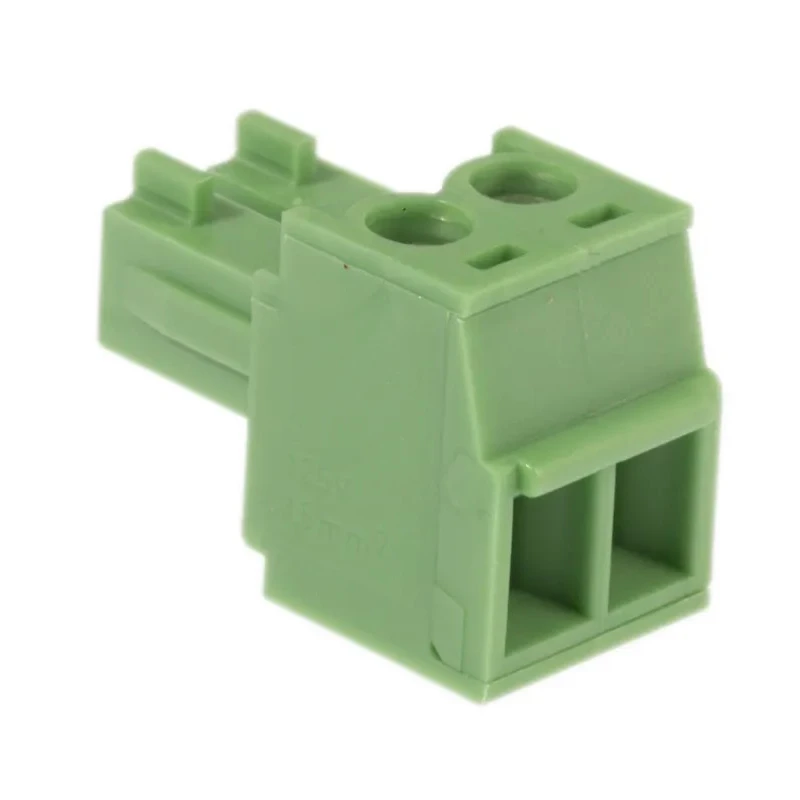

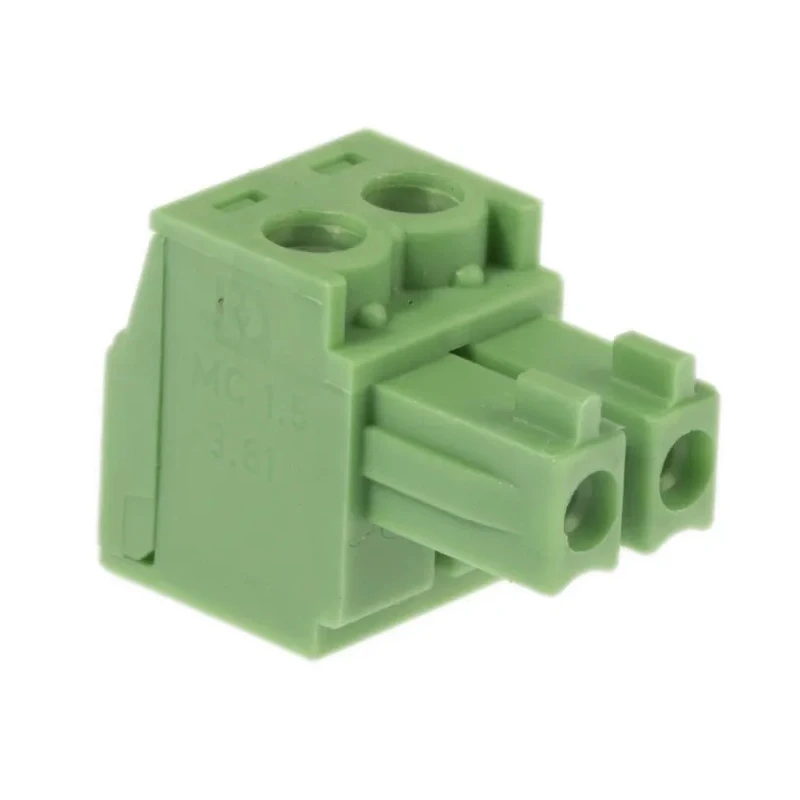

Phoenix Contact MC 1.5/2-ST-3.81 Series Pluggable Terminal Block, 2-Contact, 3.81 mm Pitch, 1 Row, 8A Current, 320V 1803578
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 8A |
| Length | 16.1mm |
| Model | 1803578 |
| Depth | 11.1mm |
| Width | 8.41mm |
| Housing Material | Polyamide |
| Series | MC 1.5/2-ST-3.81 |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Number of Contacts | 2 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Screw |
Key Features
- Features a compact size with dimensions of 8.41 mm width, 11.1 mm depth, and 16.1 mm length.
- Constructed with robust polyamide housing ensuring durability and electrical insulation.
- Supports 8A current rating and a supply voltage of 320V for low-power industrial setups.
- Screw connection method allows secure and vibration-resistant wiring.
- Compatible with wire sizes ranging from 28 AWG (0.14 mm²) to 16 AWG (1.5 mm²).
- Designed with a single row and straight orientation for easy installation on PCBs.
- Green colored terminal block with tin-plated contacts to prevent corrosion.
- Operates reliably in harsh industrial conditions with an operating temperature range of -40°C to +70°C.
Product Description
Phoenix Contact 1803578 is a high-quality Pluggable Terminal Block featuring 2 contacts with a precise 3.81 mm pitch, tailored for reliable signal and power distribution in industrial applications. This PCB connector is engineered to support up to 8 amps of current at a rated voltage of 320V, making it ideal for low-power industrial circuits requiring dependable electrical connections.
The terminal block's robust polyamide housing provides excellent resistance against mechanical stress and abrasion while ensuring electrical insulation to protect against accidental shocks. Its tin-plated contacts are corrosion-resistant, guaranteeing long-term stable conductivity.
The product supports wire connections ranging from 28 AWG (0.14 mm²) to 16 AWG (1.5 mm²) through a screw termination method, which secures wiring against vibration and loosening in demanding environments. The single straight row design simplifies installation on printed circuit boards.
With compact dimensions (8.41 mm width, 11.1 mm depth, 16.1 mm length) and a green coloration, this terminal block also meets IP20 standards for finger-safe operation and is UL 94-V0 rated for flame retardance, enhancing safety in electrical assembly.
Compact size saves space on control panels and PCBs. Durable polyamide body withstands harsh environmental conditions. Supports a wide operating temperature range from -40°C to +70°C. Ensures safe and efficient electrical connections with screw terminals.
Resistant to corrosion through tin-plated contact surfaces. Precise pitch of 3.81 mm facilitates standardized wiring layouts. Meets industrial safety standards for flame retardance and touch protection.
This Phoenix Contact series is widely used across industrial manufacturing, automation systems, power supplies, control cabinets, and electrical engineering projects. Its reliable performance under vibration and mechanical stress makes it suitable for demanding industrial environments.
Explore the Phoenix Contact category for a comprehensive range of terminal blocks and connectors engineered for professional industrial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a current rating of 8A.
It can handle a maximum voltage of 320V.
It is compatible with wire sizes ranging from 28 AWG (0.14 mm²) to 16 AWG (1.5 mm²).
The dimensions are 8.41 mm in width, 11.1 mm in depth, and 16.1 mm in length.
The housing is constructed from robust polyamide, providing electrical insulation and mechanical strength.
The pitch of the contacts is 3.81 mm.
Wiring is secured using a screw connection method, which is designed to be vibration-resistant.
This model features a straight orientation, which simplifies installation on PCBs.
It operates reliably within a temperature range of -40°C to +70°C.
The terminal block is colored green.
Yes, it features tin-plated contacts that help prevent corrosion and ensure stable conductivity.
The country of origin for this terminal block is Germany.
