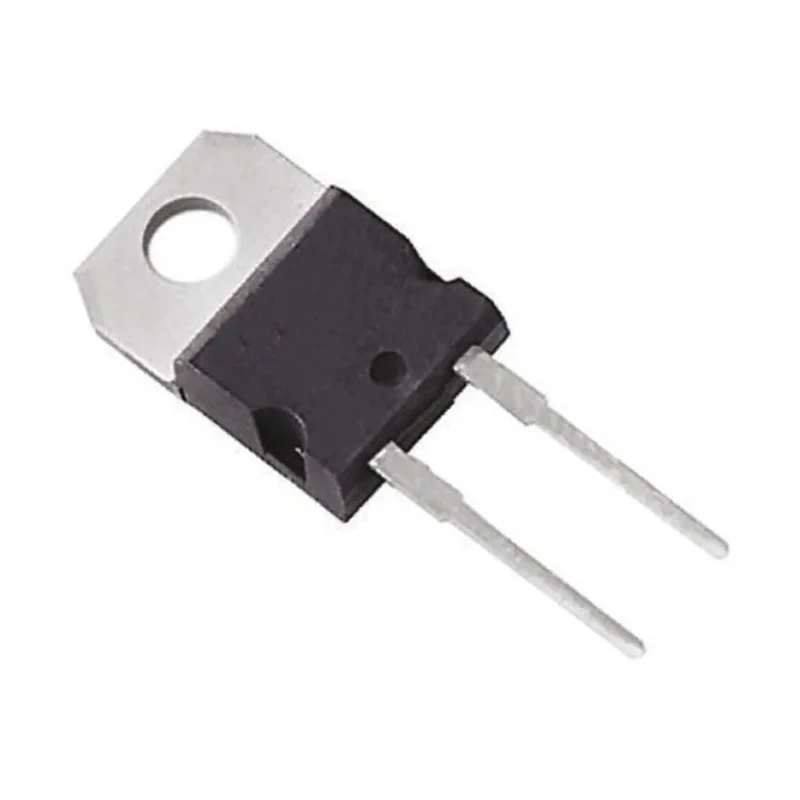

STMicroelectronics Fast Recovery Diode 1 kV 8 A 2-Pin TO-220AC STTH810D
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 3mm |
| Brand | STMicroelectronics |
| Height | 9.35mm |
| Length | 10.4mm |
| Model | STTH810D |
| Width | 4.6mm |
| Mount Type | Surface |
| Series | STTH810 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A |
| Maximum Forward Voltage Vf | 2V |
| Peak Reverse Recovery Time trr | 85ns |
Key Features
- The diode features a maximum continuous forward current rating of 8 amperes.
- It offers a peak reverse repetitive voltage of 1 kilovolt ensuring durability under high voltage conditions.
- The device uses a fast recovery rectifier type to minimize switching losses and improve efficiency.
- Peak non-repetitive surge current is rated at 60 amperes for handling transient overload conditions.
- The diode is housed in a TO-220AC package with 2 pins for surface mount applications.
- Operating temperature range extends from -40°C to 175°C, suitable for harsh thermal environments.
- Forward voltage drop is a maximum of 2 volts at rated current.
- Peak reverse recovery time is 85 nanoseconds, supporting high-speed switching.
Product Description
STMicroelectronics STTH810D is a high-performance fast recovery diode designed to operate at 1 kV voltage and 8 A current, packaged in a 2-pin TO-220AC format. This diode is intended for use in power electronics, industrial control systems, and power supply units where fast switching and low loss are critical.
Its robust electrical parameters include a maximum continuous forward current of 8 Amperes and a peak reverse repetitive voltage of 1000 Volts. The device efficiently handles surge currents up to 60 Amps, making it reliable for transient conditions.
The fast recovery rectifier construction ensures rapid switching with a reverse recovery time of 85 nanoseconds, reducing switching losses and improving efficiency in inverter and converter applications.
The physical TO-220AC package allows effective mounting and heat dissipation, with dimensions 10.4 mm length, 9.35 mm height, 4.6 mm width, and 3 mm pin diameter supporting surface mounting techniques. The operating temperature range from -40°C to 175°C provides excellent thermal endurance for industrial environments.
Compliance with RoHS directives affirms its environmental compatibility. This product originates from China and is new, making it a dependable choice for replacing or designing high voltage, high current rectification circuits.
The diode's peak reverse voltage tolerance is 1 kV. Maximum forward current is 8 A continuous. Fast recovery rectifier type ensures minimal switching losses. Peak non-repetitive surge current rated at 60 A. Peak reverse recovery time is 85 ns for efficiency.
Operating temperature range supports -40°C to 175°C. Compact TO-220AC package with 2 pins for mounting flexibility. Certified RoHS compliant for eco-friendly use.
Suitable for industrial power electronics, manufacturing equipment, and electronics design labs requiring efficient diode rectification solutions. Explore more semiconductor products from STMicroelectronics in EnvMart for comprehensive applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 8 amperes.
The peak reverse repetitive voltage of the STTH810D is 1 kilovolt (1 kV).
This diode is a fast recovery rectifier type, designed to minimize switching losses and improve efficiency.
The peak non-repetitive surge current rating is 60 amperes, allowing it to handle transient overload conditions.
The peak reverse recovery time is 85 nanoseconds, supporting high-speed switching applications.
The TO-220AC package dimensions are 10.4 mm in length, 9.35 mm in height, and 4.6 mm in width, with a pin diameter of 3 mm.
The operating temperature range extends from -40°C to 175°C, making it suitable for harsh thermal environments.
The maximum forward voltage drop at rated current is 2 volts.
The country of origin for the STTH810D diode is China.
This diode complies with RoHS directives, affirming its environmental compatibility.
This diode is suitable for use in power electronics, industrial control systems, and power supply units where fast switching and low loss are critical.
The TO-220AC package has 2 pins for mounting flexibility.
