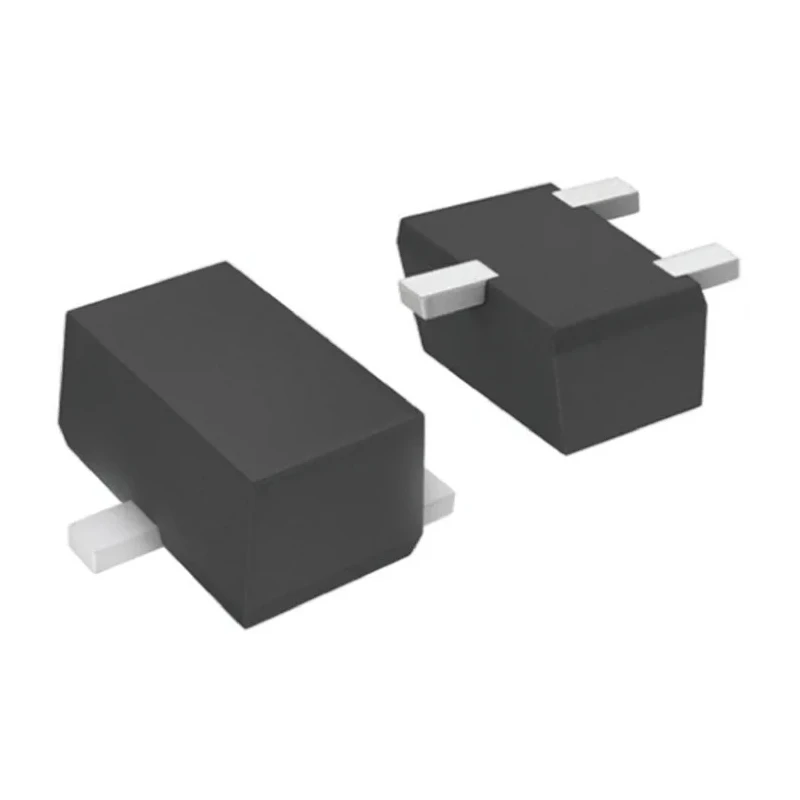

onsemi 2-Element Uni-Directional TVS Diode, 0.24 W, 3-Pin SOT-723 ESD7C3.3DT5G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.55mm |
| Length | 1.25mm |
| Model | ESD7C3.3DT5G |
| Width | 0.85mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-723 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Number of Elements per Chip | 2 |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Dual |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 5V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Peak Pulse Power Dissipation Pppm | 0.24W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 30A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- This diode features a peak pulse power dissipation of 0.24 W.
- It comes in a compact 3-pin SOT-723 surface-mount package.
- The device withstands a maximum peak pulse current of 30 A.
- Operating temperature ranges from -55°C to 150°C for robust performance.
- ESD protection is guaranteed with AEC-Q101 automotive standard compliance.
- The diode has a minimum breakdown voltage of 5 V and maximum reverse leakage current of 1 μA.
- Its dimensions measure 1.25 mm in length, 0.85 mm in width, and 0.55 mm in height.
Product Description
onsemi ESD7C3.3DT5G is a 2-element uni-directional transient voltage suppressor (TVS) diode designed for sensitive electronic components protection. With a peak pulse power dissipation of 0.24 W, it ensures effective suppression of voltage spikes and electrostatic discharge (ESD) events, safeguarding circuits in automotive and industrial applications.
This device is housed in a compact 3-pin SOT-723 surface-mount package, optimizing board space while providing reliable performance under demanding thermal conditions ranging from -55°C to 150°C.
The TVS diode features a minimum breakdown voltage of 5 V and a maximum reverse standoff voltage of 3.3 V. Its low reverse leakage current of 1 μA helps maintain circuit integrity in low power environments.
Registered under the automotive standard AEC-Q101, the diode guarantees quality and reliability essential for automotive system designs, offering robust ESD protection and transient voltage suppression.
Key mechanical dimensions include a length of 1.25 mm, width of 0.85 mm, and height of 0.55 mm, allowing integration into compact assemblies. It supports a peak pulse current of 30 A, ensuring capability to handle high-energy transient events.
This TVS diode is suitable for industrial, automotive, consumer electronics, and communication equipment applications. Its dual element configuration provides enhanced protection against voltage surges. Compact SOT-723 packaging assists in automated surface mounting operations to improve manufacturing efficiency.
Low capacitance design enables high-speed data line protection without signal distortion. Ideal for transient voltage suppression in power supply, signal line, and communication line circuits. Explore a wide selection of semiconductor components and TVS Diode arrays for your protection needs in electronics manufacturing and design on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The onsemi ESD7C3.3DT5G has a peak pulse power dissipation of 0.24 W.
It can withstand a maximum peak pulse current of 30 A.
The operating temperature range is from -55°C to 150°C.
The dimensions of the SOT-723 package are 1.25 mm in length, 0.85 mm in width, and 0.55 mm in height.
The minimum breakdown voltage is 5 V.
The maximum reverse stand-off voltage is 3.3 V.
The maximum reverse leakage current is 1 μA.
This diode features a dual element configuration.
Yes, it is compliant with the AEC-Q101 automotive standard.
The SOT-723 package has a pin count of 3.
This TVS diode is suitable for industrial, automotive, consumer electronics, and communication equipment applications.
The diode is designed for surface mounting.
