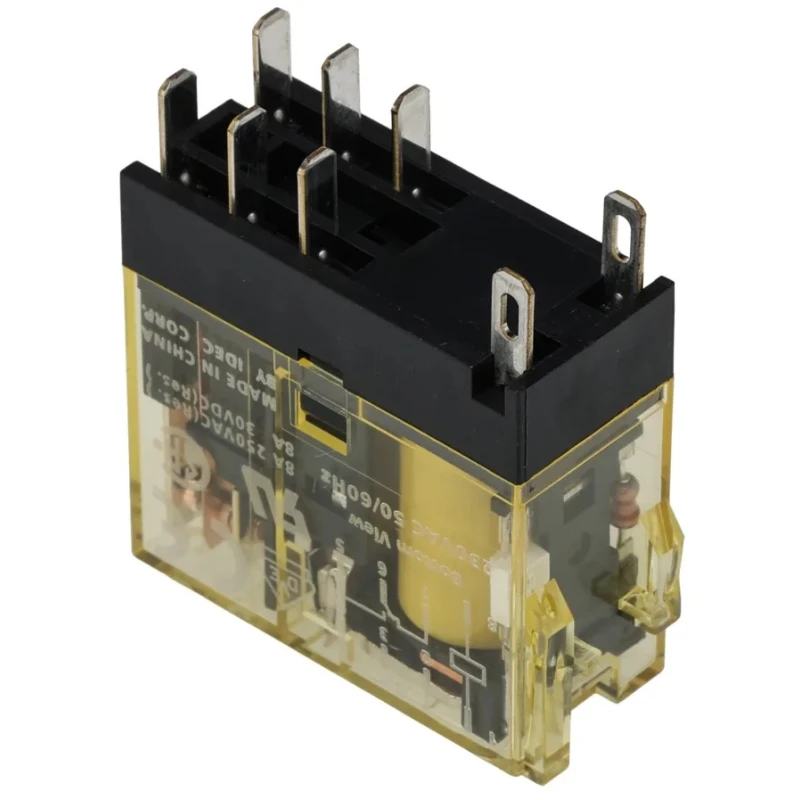

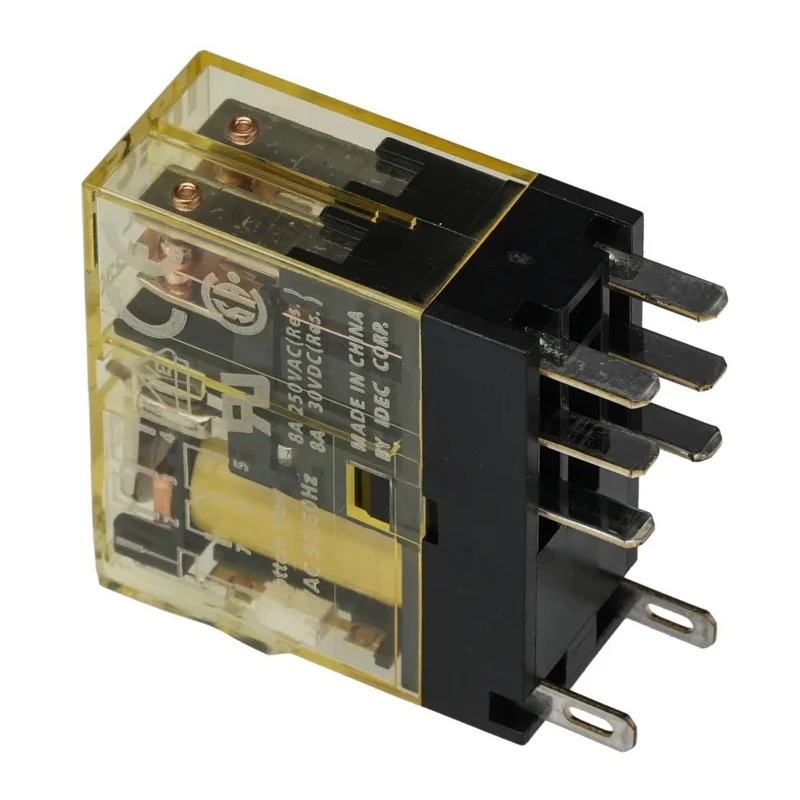

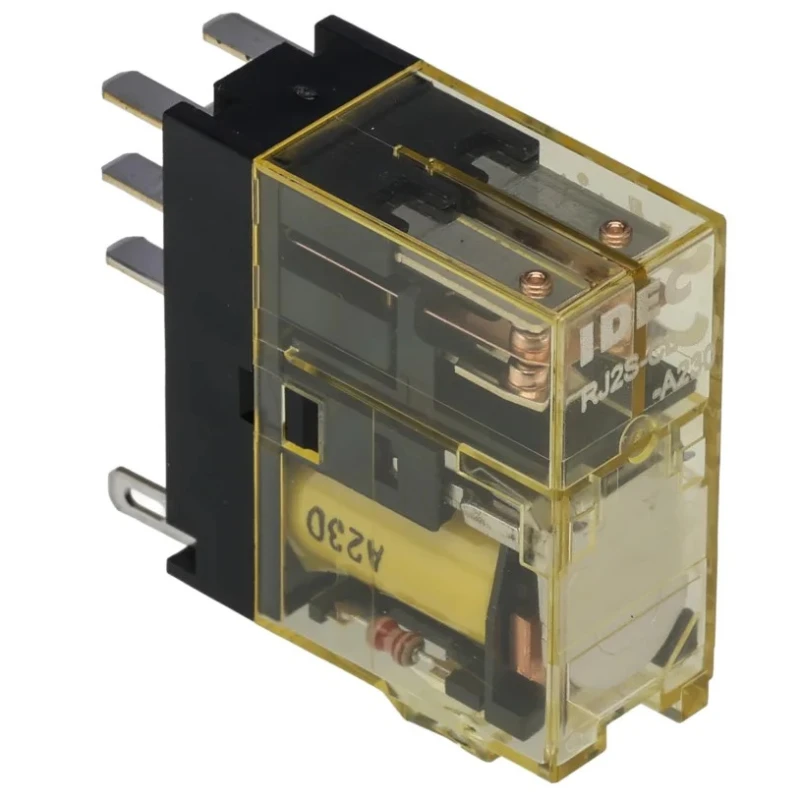

Idec Power Relay DPDT 230V AC Coil Voltage 8A Switching Current RJ2S-CL-A230
Specifications
| Country of Origin | India |
|---|---|
| Brand | Idec |
| Height | 33mm |
| Length | 28.8mm |
| Model | RJ2S-CL-A230 |
| Width | 12.7mm |
| Contact Material | Silver Nickel Alloy |
| Series | RJ2S |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Screw |
| Standards/Approvals | CE, RoHS |
| Coil Resistance | 24.1kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 230V ac |
| Coil Power | 900mW |
Key Features
- Equipped with double pole double throw (DPDT) contact configuration.
- Operates with a coil voltage of 230V AC and coil power of 900mW.
- Features screw terminal type for secure connections.
- Offers an 8 ampere switching current capacity.
- Designed to operate in temperatures from -40°C to 70°C.
- Constructed with silver nickel alloy contacts for durable performance.
- Incorporates a coil resistance of 24.1kΩ ensuring stable coil operation.
- Complies with CE and RoHS standards for safety and environmental compliance.
Product Description
The Idec RJ2S-CL-A230 power relay is a highly reliable DPDT relay featuring a 230V AC coil voltage and capable of handling an 8A switching current, ideal for industrial control panels and machine tool applications.
This compact relay measures just 28.8mm in length, 12.7mm in width, and 33mm in height, making it suitable for installations with limited space requirements. It features screw terminal connections that ensure firm and secure electrical connections while allowing for straightforward maintenance and replacement.
The coil power consumption is low at 900mW with a coil resistance of 24.1kΩ, providing efficient operation. The relay’s contact points are made of silver nickel alloy, offering excellent conductivity and durability under electrical load.
Operating temperature range is wide from -40°C to 70°C, allowing the relay to perform reliably in harsh industrial environments. Designed with high standards, the relay complies with CE and RoHS certifications, assuring safety and environmental responsibility.
The Idec RJ series relays are known for their compact size, vibration and shock resistance, and long-lasting durability, making them a dependable choice for industrial automation and electrical control systems.
Equipped with double pole double throw (DPDT) contact configuration. Operates with a coil voltage of 230V AC and coil power of 900mW. Features screw terminal type for secure connections. Offers an 8 ampere switching current capacity.
Designed to operate in temperatures from -40°C to 70°C. Compact dimensions: 28.8mm length, 12.7mm width, and 33mm height. Constructed with silver nickel alloy contacts for durable performance. Incorporates a coil resistance of 24.1kΩ ensuring stable coil operation.
Complies with CE and RoHS standards for safety and environmental compliance.
This power relay is suitable for use in electrical, automation, industrial control, and machine tool applications. It delivers reliable switching performance under demanding operating conditions. Explore more Idec products and Power Relays in the category for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this model is 230V AC.
This relay measures 28.8mm in length, 12.7mm in width, and 33mm in height.
It features a double pole double throw (DPDT) contact configuration.
The coil power consumption is 900mW.
It is designed to operate in temperatures ranging from -40°C to 70°C.
The contacts are constructed from silver nickel alloy.
It features screw terminal connections for secure and reliable electrical connections.
It complies with CE and RoHS standards for safety and environmental compliance.
The coil resistance is 24.1kΩ, ensuring stable coil operation.
This power relay is suitable for use in electrical, automation, industrial control, and machine tool applications.
