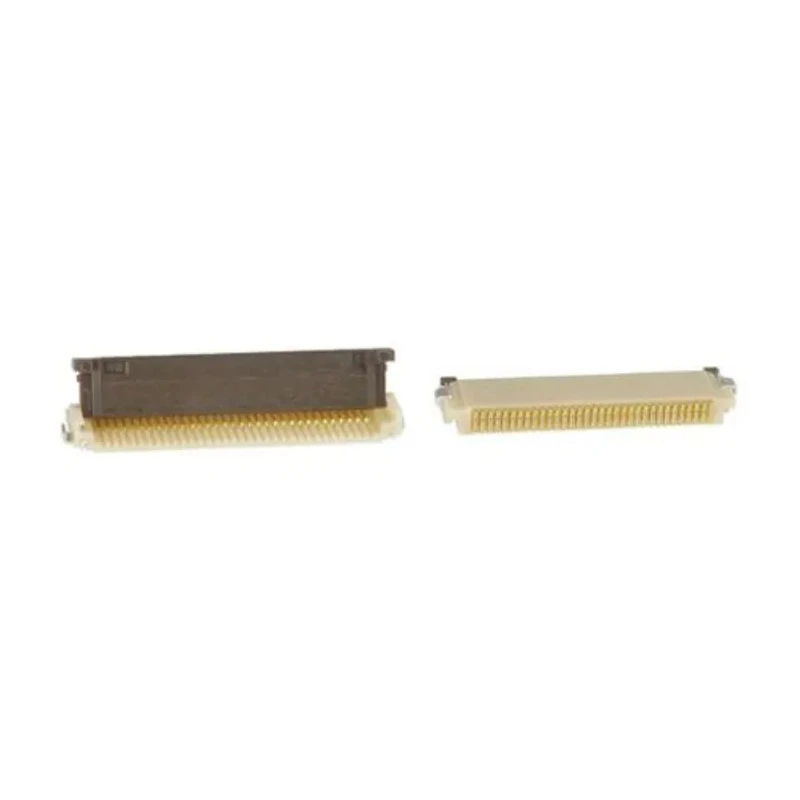

Hirose FPC Connector 0.5 mm Pitch 33 Way Right Angle Female Solder Termination FH12
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 500mA |
| Model | FH12 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | FH12 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 33 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features 33 contacts with 0.5 mm pitch for high density PCB mounting.
- Contact material is phosphor bronze with gold plating ensuring reliable conductivity.
- Supports a maximum current of 500 mA and voltage rating of 50 V AC.
- Equipped with one-touch rotating zero insertion force actuator for easy cable connection.
- Right angle orientation and bottom contact position for flexible board layouts.
- Constructed with polyamide housing for durability and temperature tolerance from -40°C to 85°C.
- Includes locking mechanism to secure mated connections.
- Suitable for mobile phones, GPS devices, notebooks, data terminals, LCD TVs, and cameras.
Product Description
Hirose FH12 FPC Connector 0.5 mm Pitch 33 Way Right Angle Female FH12 series ZIF connectors provide reliable, high-density surface mount FPC/FFC connections. This connector features 33 gold-plated phosphor bronze contacts arranged in a single row with a 0.5 mm pitch, enabling compact PCB designs and efficient signal transmission.
The one-touch rotating zero insertion force actuator ensures effortless cable insertion and a tactile click confirms secure mating, improving assembly efficiency and reducing damage risk. The right angle orientation and bottom contact position permit versatile board layouts in constrained spaces.
The polyamide housing material delivers robust mechanical performance and supports operating temperatures from -40°C to 85°C, making it suitable for a wide range of industrial and consumer electronics applications.
Locking mechanisms secure cables in place, preventing accidental disconnection. Rated for 500 mA current and 50 V AC voltage, this connector offers stable electrical performance for devices including mobile phones, GPS modules, notebook PCs, data terminals, LCD TVs, digital and video cameras, and other portable electronic devices.
33 contacts with 0.5 mm pitch for high-density PCB mounting. Gold-plated phosphor bronze contacts for excellent conductivity and corrosion resistance. Zero insertion force one-touch rotating actuator for easy connection.
Right angle, bottom contact configuration for versatile designs. Polyamide housing supports operating temperatures from -40°C to 85°C. Locking mechanism secures cable connections reliably. Supports 500 mA current and 50 V AC voltage ratings.
Ideal for telecommunication, consumer electronics, and industrial devices.
The Hirose FH12 series FPC Connectors combine compact design with reliable mechanical and electrical performance, making them essential components for modern electronics requiring flexible and durable flat cable connections.
Explore more connectors and electronic components in EnvMart’s extensive catalog to meet diverse industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a maximum current of 500 mA and a voltage rating of 50 V AC.
It features 33 contacts with a 0.5 mm pitch, designed for high-density PCB mounting.
The contacts are made of phosphor bronze with gold plating, and the housing is constructed from polyamide.
It supports operating temperatures from -40°C to 85°C, making it suitable for various environments.
The one-touch rotating zero insertion force actuator allows for effortless cable insertion, providing a tactile click to confirm secure mating.
This model has a right angle orientation and a bottom contact position, which allows for flexible board layouts.
Yes, it includes a locking mechanism to secure mated connections and prevent accidental disconnection.
It uses solder termination, suitable for surface mounting applications.
It is suitable for various devices including mobile phones, GPS modules, notebooks, data terminals, LCD TVs, and cameras.
This connector belongs to the FH12 series, which is designed for reliable FPC/FFC connections.
The connector has a single row configuration, which contributes to its compact design.
The contact gender for this model is female, making it compatible with corresponding male connectors.
