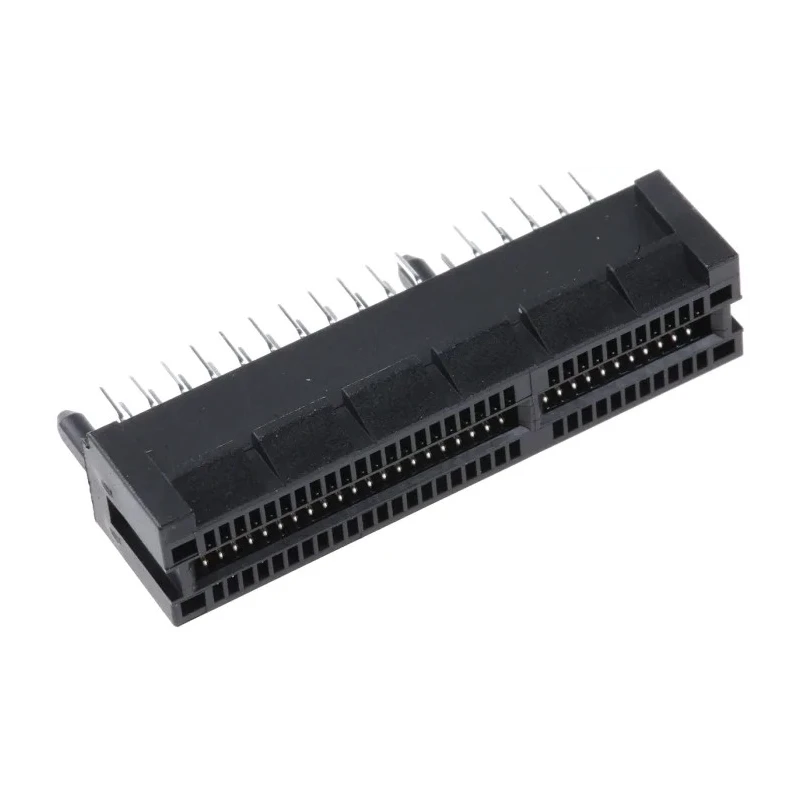

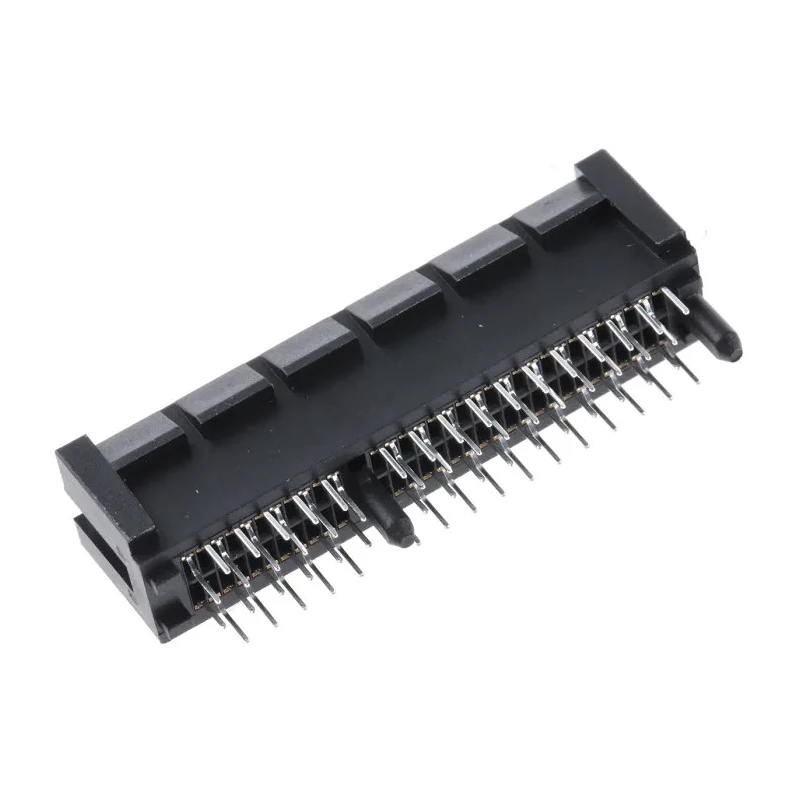

Samtec PCIe Series Straight Edge Connector Female, Through Hole, 64-Contacts, 1 mm Pitch, 2 Row, Solder PCIE-064-02-F-D-TH
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 215V ac |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.4A |
| Model | PCIE-064-02-F-D-TH |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | PCIe |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 64 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | PCI |
| Card Thickness | 1.6mm |
Key Features
- Supports a current rating of 2.4 A for reliable power delivery.
- Phosphor bronze contacts with gold over nickel plating ensure excellent conductivity and corrosion resistance.
- Housing made from durable black nylon provides wear and abrasion resistance.
- Operates reliably in temperature range from -55°C to 125°C for harsh environment use.
- Card insertion depth of 8 mm accommodates 1.6 mm thick PCI cards securely.
- Keying way is included to ensure proper mating and prevent misconnection.
- Termination via lead-free solder offers environmentally safe assembly method.
- Compact physical size of 39 mm length, 7.5 mm width, and 11 mm depth fits tight computer enclosures.
Product Description
Samtec PCIE-064-02-F-D-TH is a high-quality straight edge connector designed for PCI Express (PCIe) series applications requiring a female connector with 64 contacts arranged in 2 rows at a 1 mm pitch. It mounts through-hole on PCBs and terminates via solder for a robust and long-lasting installation.
The connector is ideal for enhancing computer hardware such as graphics, audio, and Ethernet cards. Its 8 mm card insertion depth supports 1.6 mm thick cards, providing a secure connection that prevents accidental disconnects. The housing is manufactured from black nylon material, offering strong resistance against wear and abrasion to maintain durability in industrial and electronics assembly environments.
Key technical characteristics include phosphor bronze contacts plated with gold over nickel, assuring high conductivity and corrosion resistance critical for stable signal and power transfer. The connector supports up to 2.4 amperes of current and withstands a substantial temperature range from -55°C to 125°C, enabling reliable operation in both extreme cold and high heat conditions.
This Edge Connector is well-suited for a wide range of professional and industrial electronics use cases including Wi-Fi card upgrades, storage control modules, and home computer builds, supporting PCIe standards with one, four, eight, or sixteen PCI Express links.
64 contacts with 2-row configuration and 1 mm pitch spacing. Phosphor bronze contact material with gold over nickel plating for enhanced conductivity and corrosion resistance. Through-hole mount type with solder termination ensuring durable mechanical and electrical connection.
Robust black nylon housing for abrasion and wear resistance. Wide operating temperature range from -55°C to +125°C for harsh environmental conditions. Keying way included to prevent misconnection and align cards properly.
Compact dimensions: 39 mm (L) x 7.5 mm (W) x 11 mm (D) suitable for compact electronic assemblies. Explore EnvMart for a wide range of electronics components and specialized connectors suitable for industrial, laboratory, and manufacturing environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 2.4 A, ensuring reliable power delivery for connected devices.
This connector operates reliably within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
It features a 1 mm pitch with 64 contacts arranged in 2 rows, designed for efficient connectivity.
The contacts are made from phosphor bronze and are plated with gold over nickel, while the housing is constructed from durable black nylon.
It is designed for through-hole mounting on PCBs and terminates via solder, ensuring a robust installation.
The card insertion depth is 8 mm, accommodating PCI cards that are 1.6 mm thick.
Yes, it includes a keying way to ensure proper mating and prevent misconnection during installation.
It is ideal for enhancing computer hardware applications such as graphics, audio, and Ethernet cards.
The compact dimensions are 39 mm in length, 7.5 mm in width, and 11 mm in depth, suitable for tight enclosures.
The contacts are plated with gold over nickel, which enhances conductivity and provides corrosion resistance.
The connector is manufactured in India.
This model is part of the PCIe series, designed specifically for PCI Express applications.
