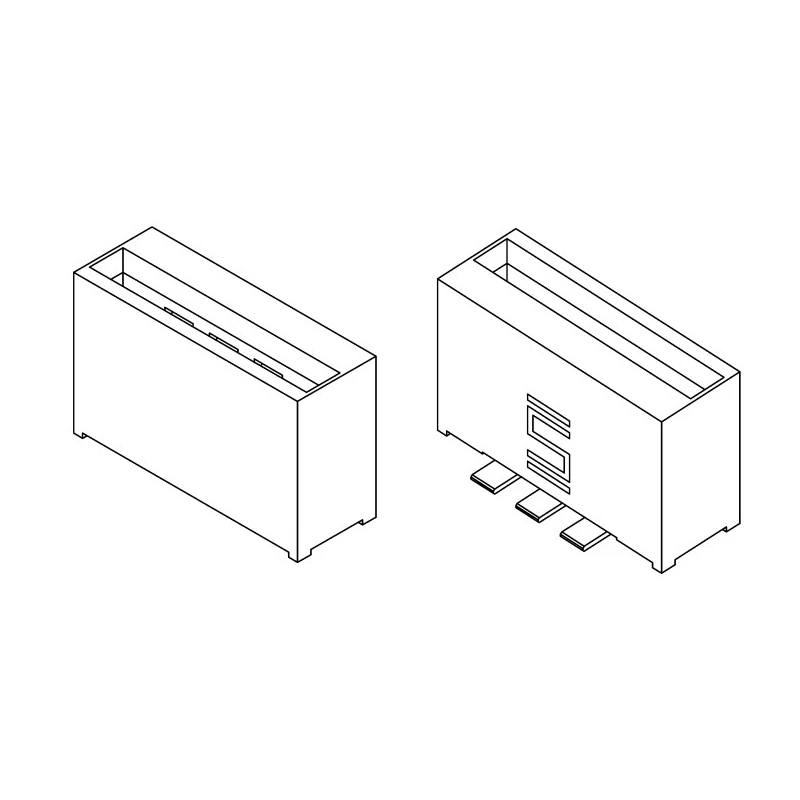

Samtec PEC Series Straight Edge Connector Female, Through Hole, 7-Contacts, 2.54 mm Pitch, 1 Row, Solder PEC-07-01-T-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | Samtec |
| Orientation | Straight |
| Current | 9.8A |
| Model | PEC-07-01-T-S |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | PEC |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Edge |
Key Features
- This connector supports a current rating of 9.8A for reliable electrical performance.
- It uses beryllium copper alloy contacts plated with tin over nickel to ensure durability and conductivity.
- The housing is made from liquid crystal polymer providing thermal stability from -55°C to 105°C operating temperatures.
- The 7-contact, 1-row design accommodates 0.8 mm thick edge cards for power or signal transmission.
- Mounting is through-hole with a post length of 1.86 mm to secure the connector on PCB assemblies.
- The connector is rated for 250V AC voltage and is intended for edge card applications requiring secure and stable connections.
- The series features polarization ribs for correct orientation during installation.
Product Description
Samtec PEC-07-01-T-S is a PEC Series Straight Edge Connector designed for female edge card interfaces that accommodate 0.8 mm thick cards. This through-hole connector has 7 contacts arranged in a single row with a 2.54 mm pitch, optimized for solder termination to printed circuit boards.
The contacts are crafted from beryllium copper alloy with a tin over nickel plating to provide excellent conductivity and resistance to wear. The housing material is a liquid crystal polymer, providing robust mechanical and thermal properties with a specified operating temperature range from -55°C to 105°C.
Rated for 9.8 amps of current and 250 volts AC, this connector is suitable for various industrial and electronic applications including power distribution and edge card interface projects in fields such as manufacturing, telecommunications, and control systems.
The through-hole mount with a post length of 1.86 mm ensures strong retention to circuit boards. The design also includes polarization ribs for connectors with 7 or 10 ways to prevent incorrect mating during assembly.
Female orientation with 7 contacts in a single row. Through-hole mount type with 1.86 mm post length. Contact plating of tin over nickel for enhanced durability. Beryllium copper alloy contacts for reliable electrical performance.
Housing made from liquid crystal polymer material. Operating temperature range from -55°C to 105°C. Voltage rating of 250V AC suitable for power edge card applications. Polarization rib design for correct connector seating.
This Edge Connector from Samtec's PEC Series is ideal for industrial electronics, manufacturing environments, telecommunications hardware, laboratory instruments, and any application requiring secure and reliable PCB edge card connections.
For more connectors and electronic components, explore the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current rating of 9.8A, ensuring reliable electrical performance.
The PEC-07-01-T-S is rated for 250V AC, making it suitable for power edge card applications.
The contacts are made from beryllium copper alloy with tin over nickel plating, while the housing is constructed from liquid crystal polymer.
It operates within a temperature range of -55°C to 105°C, suitable for various environments.
This model features 7 contacts arranged in a single row.
The PEC-07-01-T-S utilizes solder termination for connection to printed circuit boards.
The contact pitch for this connector is 2.54 mm.
It features a through-hole mount type with a post length of 1.86 mm for secure PCB assembly.
Yes, it includes polarization ribs to ensure correct orientation during installation.
This connector is suitable for various industrial and electronic applications, including power distribution and edge card interface projects.
The connector is manufactured in India.
The PEC-07-01-T-S features female contacts, designed for edge card applications.
