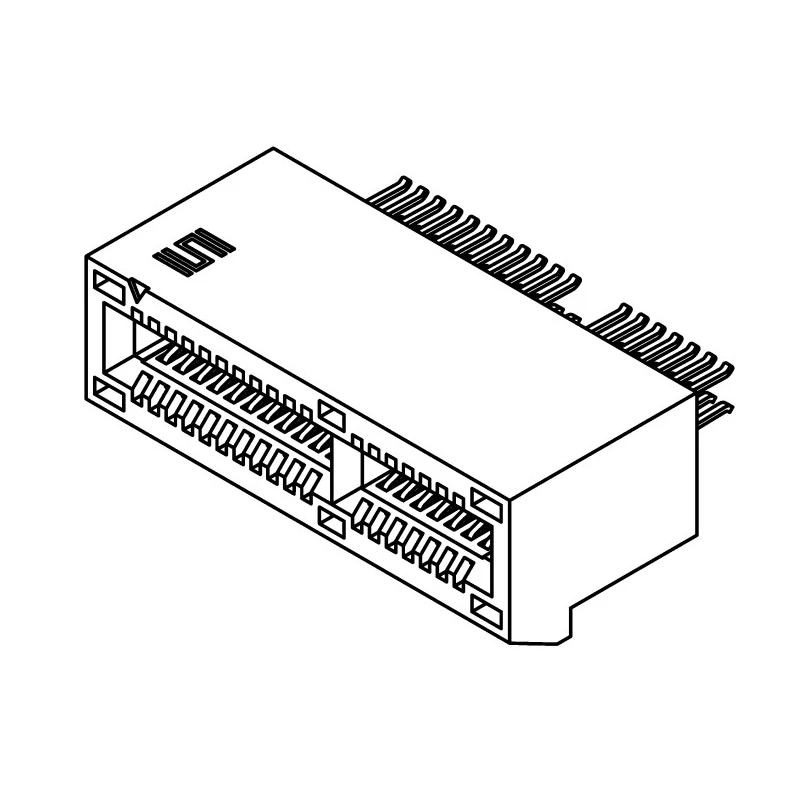

Samtec PCIe Series Straight Edge Connector Female 36-Contacts 1 mm Pitch 2 Row Solder PCIE-036-02-F-D-EMS2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 215V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.5A |
| Model | PCIE-036-02-F-D-EMS2 |
| Mount Type | Edge |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | PCIe |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 36 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | PCI EXPRESS CARD |
| Card Thickness | 1.6mm |
Key Features
- Designed for edge mounting with a straight orientation.
- Contacts feature gold over nickel plating for corrosion resistance.
- Constructed using phosphor bronze contact material and nylon housing.
- Rated for 2.5A current and 215V voltage operation.
- Suitable for PCI EXPRESS CARD type with 1.6mm card thickness compatibility.
- Operating temperature range from -55°C to 125°C ensuring durability.
- Includes a keying feature to ensure correct mating.
- Termination is done by solder for reliable electrical connection.
Product Description
Samtec PCIE-036-02-F-D-EMS2 PCIe Series Straight Edge Connector is a high-quality electronic component designed for edge mounting applications in PCI EXPRESS CARD interfaces. This connector features a female coupling with 36 contacts arranged in 2 rows at a 1 mm pitch, enabling reliable connectivity in electronic assemblies.
The contacts are made of phosphor bronze and plated with gold over nickel to deliver excellent corrosion resistance and stable electrical contact performance. The connector housing is manufactured from durable nylon, which provides mechanical robustness and electrical insulation.
With a current rating of 2.5A and voltage rating of 215V, this connector is suitable for demanding industrial and commercial electronic applications. It supports a card thickness of 1.6 mm and offers a broad operating temperature range from -55°C to 125°C, ensuring consistent functionality in harsh environments. The keying way facilitates proper alignment and prevents incorrect insertion.
Designed specifically for PCI EXPRESS card systems, it is ideal for use in industrial electronics, computing, telecommunications, and other electronic equipment manufacturing where reliable edge connector performance is required.
Designed for edge mounting with a straight orientation. Contacts feature gold over nickel plating for corrosion resistance. Constructed using phosphor bronze contact material and nylon housing. Rated for 2.5A current and 215V voltage operation.
Suitable for PCI EXPRESS CARD type with 1.6mm card thickness compatibility. Operating temperature range from -55°C to 125°C ensuring durability. Includes a keying feature to ensure correct mating. Termination is done by solder for reliable electrical connection.
Explore more PCIe Edge Connector products for your electronic component needs with confidence at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a current rating of 2.5A, making it suitable for various electronic applications.
The voltage rating for this connector is 215V, allowing it to handle a range of electrical applications safely.
The contacts in this edge connector are arranged at a 1 mm pitch, which is standard for many electronic applications.
This model features a total of 36 contacts, arranged in 2 rows for effective connectivity.
The contacts are made of phosphor bronze and are plated with gold over nickel, while the housing is constructed from nylon.
It operates within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
The termination for this connector is done by solder, ensuring a reliable electrical connection.
Yes, it is specifically designed for PCI EXPRESS CARD systems with a card thickness compatibility of 1.6 mm.
This connector is designed for edge mounting with a straight orientation, facilitating easy installation.
Yes, it includes a keying feature to ensure correct mating and prevent incorrect insertion.
The PCIe Series Straight Edge Connector is manufactured in India.
This connector features a female gender, making it compatible with corresponding male connectors in PCIe applications.
