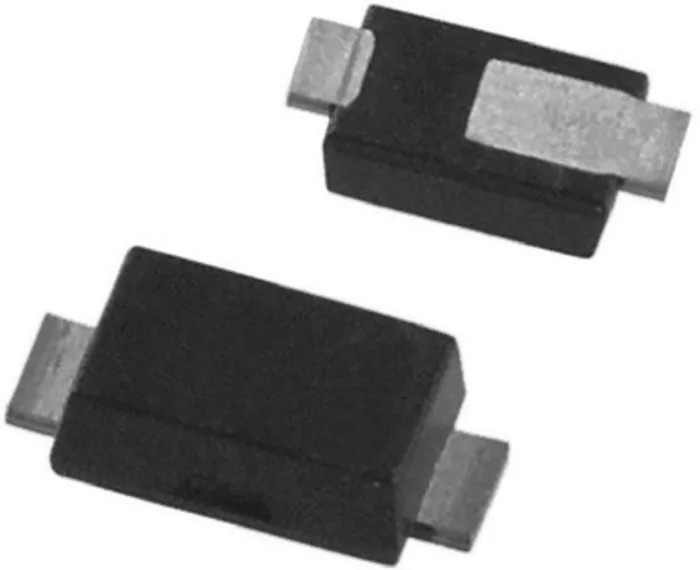

DiodesZetex 5.6 V Single 1 W 5% Zener Diode Surface Mount 2-Pin PowerDI DFLZ5V6-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 3mm |
| Model | DFLZ5V6-7 |
| Mount Type | Surface |
| Series | DFLZ5V6 |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerDI |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1W |
| Diode Configuration | Single |
| Test Current It | 100mA |
| Maximum Reverse Leakage Current | 10μA |
| Nominal Zener Voltage Vz | 5.6V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 4Ω |
| Surface Mount case | POWERDI®123 |
Key Features
- Surface mount Zener diode designed for voltage regulation applications.
- Features a nominal Zener voltage of 5.6 V with ±5% tolerance.
- Maximum power dissipation rating of 1 watt for reliable operation.
- Compact PowerDI package with 2 pins facilitates easy PCB mounting.
- Operates efficiently over a temperature range from -55°C to 150°C.
- Has a maximum Zener impedance of 4 ohms for stable voltage regulation.
- Maximum reverse leakage current is minimal at 10 microamperes.
- Meets automotive grade standard AEC-Q101 for quality assurance.
Product Description
DiodesZetex DFLZ5V6-7 is a single configuration Zener diode designed for voltage regulation in electronic circuits. This component features a nominal Zener voltage of 5.6 V with a tolerance of ±5% and supports a maximum power dissipation of 1 watt, making it suitable for precision voltage regulation tasks.
Housed in a PowerDI surface mount package with two pins, this diode offers compact mounting options optimized for PCB applications. It operates efficiently across a wide temperature range from -55°C to 150°C, ensuring reliability under harsh environmental conditions.
The DFLZ5V6-7 diode maintains a maximum Zener impedance of 4 ohms and a low maximum reverse leakage current of 10 microamperes, contributing to stable and efficient voltage regulation.
Designed according to automotive standard AEC-Q101, it meets quality and reliability benchmarks required in automotive and industrial electronics. This Zener diode has a small physical footprint with dimensions approximately 3 mm in length and 1 mm in height, ideal for compact electronic designs.
Surface mount design for efficient PCB integration. High reliability with automotive-grade certification. Accurate voltage regulation at nominal 5.6 V with tight tolerance. Low leakage current for energy-efficient circuitry.
Wide operating temperature range suitable for industrial environments. Compact PowerDI package minimizes board space usage. Single diode configuration ensures straightforward circuit integration. Stable Zener impedance for consistent performance.
Robust electrical properties for long-lasting operation.
This Zener diode is highly applicable in industrial electronics, power regulation circuits, automotive electronics, and other semiconductor applications requiring precise voltage stabilization and robustness. EnvMart supplies this DiodesZetex DFLZ5V6-7 diode suitable for manufacturers and engineers seeking dependable components for demanding applications.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 5.6 V with a tolerance of ±5%.
The maximum power dissipation rating for the DFLZ5V6-7 is 1 watt, ensuring reliable operation during use.
This model has dimensions of approximately 3 mm in length and 1 mm in height.
The maximum reverse leakage current for the DFLZ5V6-7 is minimal at 10 microamperes.
It operates efficiently over a temperature range from -55°C to 150°C.
The maximum Zener impedance for the DFLZ5V6-7 is 4 ohms, which contributes to stable voltage regulation.
This diode is housed in a compact PowerDI package, specifically designed for surface mounting.
Yes, it meets the automotive grade standard AEC-Q101 for quality assurance.
This model features a pin count of 2, suitable for surface mount applications.
It is applicable in industrial electronics, power regulation circuits, and automotive electronics requiring precise voltage stabilization.
The test current for the DFLZ5V6-7 is 100 mA, which is used for performance evaluation.
This diode has a single configuration with one element per chip.
