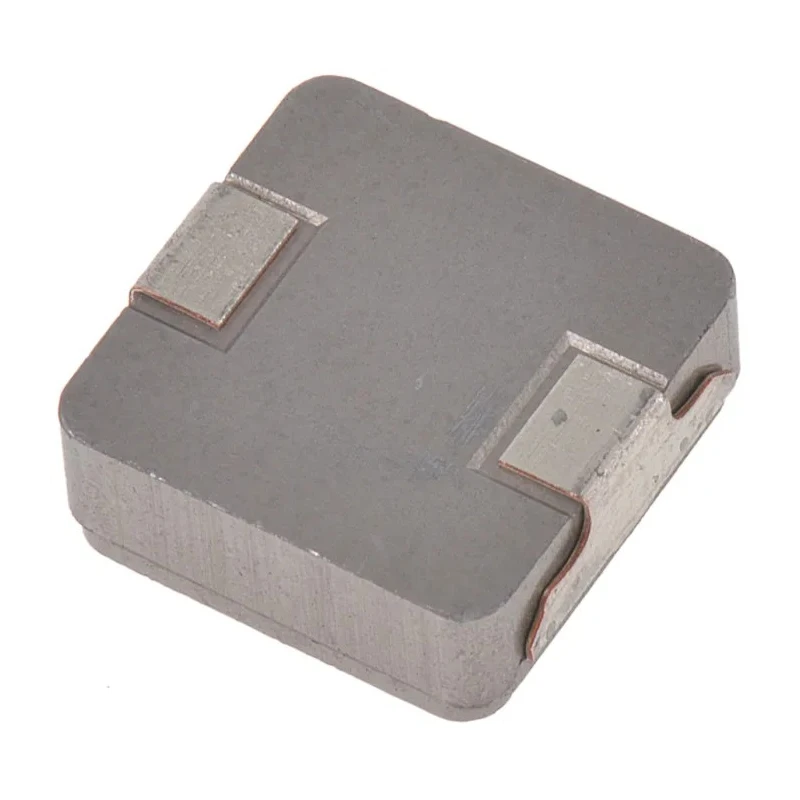

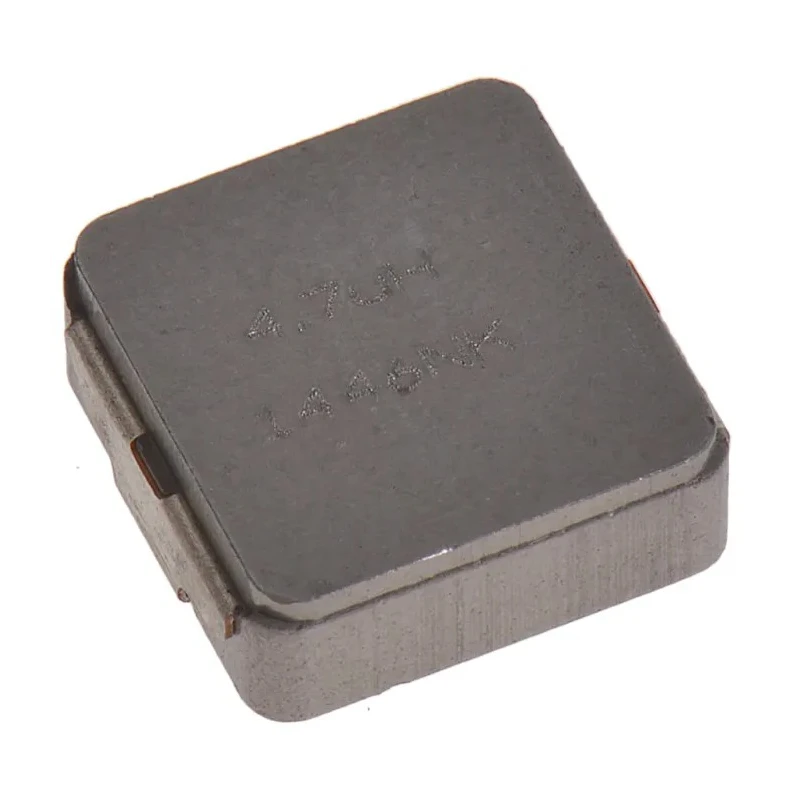

Vishay 4040 Shielded Surface Mount Inductor with Metal Composite Core 4.7 μH ±20% 9.5 A Idc IHLP4040DZER4R7M01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 4mm |
| Length | 10.8mm |
| Model | IHLP4040DZER4R7M01 |
| Depth | 10.16mm |
| Series | IHLP-4040DZ-01 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 4.7μH |
| Standards/Approvals | JEDEC, RoHS |
| Package/Case | 4040 |
| Maximum DC Current | 9.5A |
| Maximum DC Resistance | 16.5mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 5MHz |
| Inductor Construction | Shielded |
Key Features
- Features a compact 4040 package size with length 10.8mm, depth 10.16mm, and height 4mm.
- Constructed using a metal composite core providing low DC resistance and high saturation current.
- Inductance tolerance is ±20%, ensuring performance stability in varying circuit conditions.
- Designed for surface mount termination style with magnetically shielded wire wound construction reducing electromagnetic interference.
- Operational temperature range from -55°C to 125°C for reliable performance in harsh environments.
- Maximum DC resistance of 16.5mΩ with a self-resonant frequency up to 5 MHz, supporting high-frequency circuits.
- Certified to JEDEC and RoHS standards ensuring compliance and environmental safety.
- Ideal for PDA, notebook, desktop, server devices, high current POL converters, low profile power supplies, battery powered devices, and FPGA DC/DC converters.
Product Description
Vishay IHLP4040DZER4R7M01 is a high-performance 4040 shielded surface mount inductor featuring a metal composite core designed for industrial and electronics applications requiring compact size and high current capabilities. The inductor provides 4.7 μH inductance with ±20% tolerance and can handle a maximum DC current of 9.5 A. With a length of 10.8mm, depth of 10.16mm, and height of 4mm, it fits efficiently into tight PCB layouts.
Its magnetically shielded wire wound construction minimizes electromagnetic interference and buzz noise, making it suitable for precision power supply circuits. The metal composite core offers ultra-low DC resistance (16.5mΩ) ensuring energy efficiency and reduced heat dissipation. It operates reliably across a temperature range of -55°C to 125°C.
This inductor has a maximum self-resonant frequency of 5 MHz, supporting high-frequency switching power supplies and DC/DC converters commonly found in PDA, notebook, desktop, and server devices. Certified to JEDEC and RoHS standards, it complies with environmental and industrial safety requirements.
Applications include high current POL converters, low profile power supplies, battery powered devices, and field programmable gate array (FPGA) power management. The surface mount termination style facilitates automated PCB assembly, enhancing manufacturing efficiency.
Compact 4040 package ensuring space-saving electronics design. Metal composite core for high saturation current and low DC resistance. Shielded construction reduces EMI and noise interference. Wide operating temperature range from -55°C to 125°C.
Complies with JEDEC and RoHS standards for quality and safety. Supports frequencies up to 5 MHz in switching power supplies. Suitable for diverse applications including notebooks, servers, and FPGA converters. Surface mount design enables efficient PCB assembly and integration.
Explore Vishay Inductors and related components at EnvMart for robust and reliable electronics manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 4.7 μH with a tolerance of ±20%.
It can handle a maximum DC current of 9.5 A.
The dimensions are 10.8 mm in length, 10.16 mm in depth, and 4 mm in height.
The maximum DC resistance is 16.5 mΩ.
It operates within a temperature range of -55°C to 125°C.
The maximum self-resonant frequency is up to 5 MHz.
It features a surface mount termination style.
This inductor has a shielded construction, which helps reduce electromagnetic interference.
Yes, it is certified to JEDEC and RoHS standards for compliance and environmental safety.
It is suitable for applications such as high current POL converters, low profile power supplies, and battery powered devices.
The core material is metal composite, providing low DC resistance and high saturation current.
The inductor comes in a compact 4040 package size.
