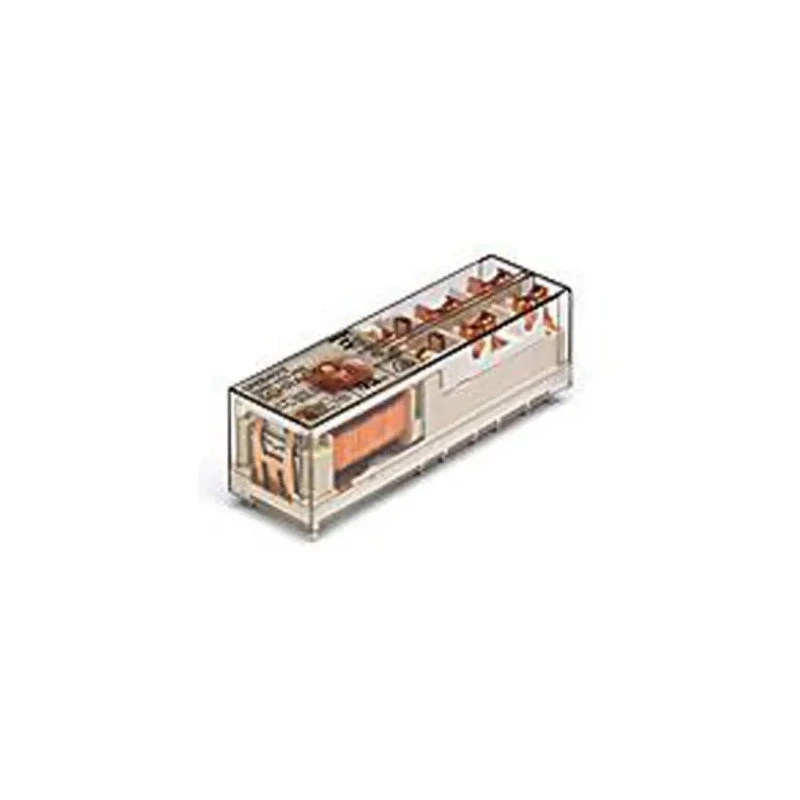

TE Connectivity PCB Force Guided Relay 6-Pole 4 NO/2 NC Silver Alloy Contacts 12V DC Coil V23050A1012A542
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 16.5mm |
| Operating Temperature Range | -25 to +70°C |
| Length | 55mm |
| Model | V23050A1012A542 |
| Depth | 16.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SR6 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4 NO/2 NC |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Number of Poles | 6 |
| Coil Resistance | 120Ω |
| Coil Power | 1.2W |
| Isolation Coil To Contact | 4kVrms |
Key Features
- Coil resistance is 120 ohms supporting 1.2W coil power.
- Operating temperature range from -25°C to 70°C ensures reliability in varied conditions.
- Provides 4 kVrms isolation between coil and contact for enhanced safety.
- Compact dimensions with 55mm length, 16.5mm height, and 16.5mm depth.
- Fully sealed design meets industrial usage requirements.
- Safety relay SR2M series compatibility with forced guided contacts.
- Switching voltage up to 440 Vac and switching current of 6 A.
- Terminal type designed for PCB mounting ease.
Product Description
TE Connectivity model V23050A1012A542 is a high-quality PCB force guided relay designed for industrial, automation, and electrical control applications. This relay features a 12V DC coil with a coil resistance of 120 ohms and a coil power consumption of 1.2 W. It has a robust 6-pole configuration with 4 normally open (NO) and 2 normally closed (NC) contacts made of silver alloy, ensuring durable and reliable operation.
The relay is mounted on a PCB using PCB terminals, with compact dimensions of 55 mm length, 16.5 mm height, and 16.5 mm depth. It provides excellent isolation between coil and contacts rated at 4 kVrms, enhancing electrical safety and maintaining signal integrity. The safe operating temperature range of -25°C to 70°C makes it suitable for diverse environments and industrial conditions.
As part of the SR6 series and compatible with the SR2M safety relay series, this relay incorporates forced guided contacts for safety-critical applications. It supports switching voltages up to 440 Vac and currents up to 6 A, making it ideal for control and monitoring circuits in automation, manufacturing, and HVAC systems.
Coil resistance of 120Ω with 1.2W coil power for efficient operation. Fully sealed design to protect internal components from contamination. Silver alloy contact material for long-lasting performance. Six-pole design with mixed 4 NO and 2 NC contacts for versatile switching.
Coil to contact isolation of 4 kVrms enhances operational safety. Operating temperatures from -25°C to 70°C for versatile environment use. Compact PCB mounting with defined dimensions and standard terminals.
This TE Connectivity PCB Force Guided Relay is sourced from the Czech Republic and meets industrial standards for reliability and safety. It is ideal for use in electrical control panels, automation equipment, and safety relay applications within industrial and commercial environments.
Browse the extensive EnvMart range of high-quality Force Guided Relays and contactors for your specialized industrial and electronic requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil resistance of this model is 120 ohms.
It supports a maximum switching voltage of up to 440 Vac.
This relay features a contact configuration of 4 normally open (NO) and 2 normally closed (NC) contacts.
The operating temperature range is from -25°C to +70°C.
It is designed for PCB mounting with PCB terminals.
The relay provides 4 kVrms isolation between the coil and the contacts.
The dimensions are 55 mm in length, 16.5 mm in height, and 16.5 mm in depth.
The coil power consumption is 1.2 watts.
The contacts are made of silver alloy.
This relay is part of the SR6 series and is compatible with the SR2M safety relay series.
The maximum switching current is 6 A.
It is manufactured in the Czech Republic.
