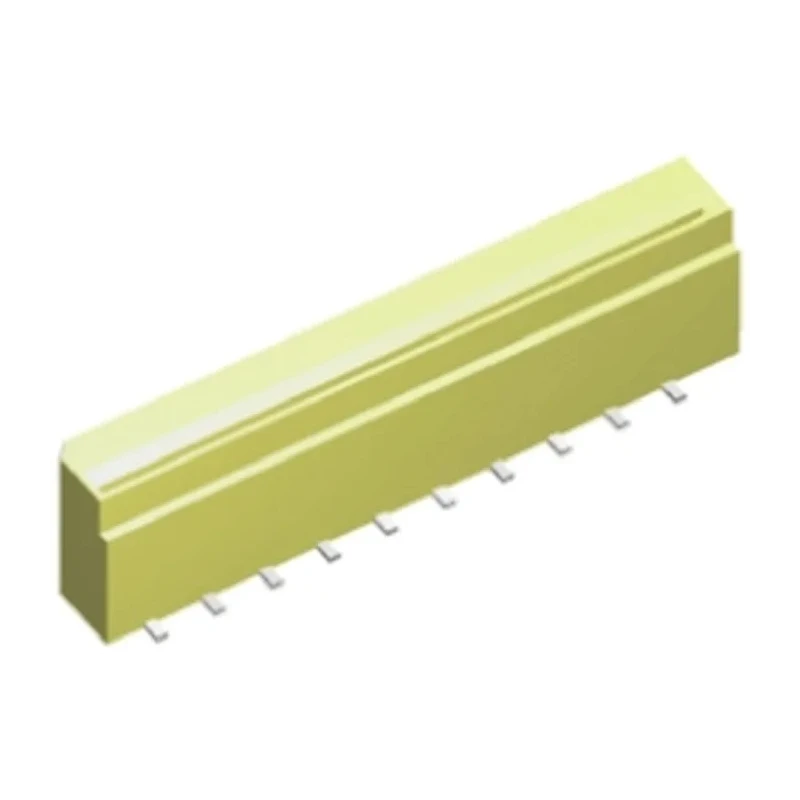

TE Connectivity FFC 1 mm Pitch 20 Way Straight Female FPC Connector, Solder 2-84982-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V ac |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | FFC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Vertical |
Key Features
- Features phosphor bronze contacts with tin over nickel plating for durability.
- Connector features a vertical orientation with 1.0mm pitch and 20 contacts.
- Equipped with Zero Insertion Force (ZIF) slide lock actuator for easy and secure cable insertion.
- Supports up to 1 Amp current and 125V AC voltage rating.
- Housing constructed from nylon material ensuring robustness and insulation.
- Suitable for industrial, medical, business equipment, set-top boxes, and PC peripherals applications.
- Operates reliably within temperature range -20°C to 85°C.
- Solder termination type with solder tabs for enhanced PCB retention and vibration resistance.
Product Description
TE Connectivity 2-84982-0 FFC 1 mm pitch 20 way straight female FPC connector offers a compact, reliable connection solution for flexible printed circuit cables requiring solder termination. The connector is designed with phosphor bronze contacts plated with tin over nickel for long-life performance and corrosion resistance. Its vertical orientation and 1.0 mm pitch make it ideal for high-density PCB applications.
This connector includes a slide lock Zero Insertion Force (ZIF) actuator, which significantly reduces contact wear and increases mating cycles by securing the FPC cable without force. The nylon housing material provides robust electrical insulation and mechanical stability, suited for harsh operating environments from -20°C to 85°C. The connector supports a current rating of 1 Amp and voltage rating of 125V AC, making it applicable for industrial equipment, medical devices, business electronics, handheld scanners, and consumer peripherals.
Solder tabs on the connector enhance PCB retention, improving resistance to vibration and mechanical stress. The connector features one row of female contacts and offers locking mechanism to ensure stable and secure connections. The product design requires no additional application tooling for installation. Available as part of a range with top or bottom contact configurations, this FPC connector balances compact size, performance, and ease of use for multiple electronic applications.
Phosphor bronze contacts with tin over nickel plating for durability. Vertical 1 mm pitch, 20 contacts, 1-row female FPC design. ZIF slide lock mechanism reduces wear and increases mating cycles. Supports 1A current, 125V AC voltage rating, and operating range -20°C to 85°C.
Nylon housing material for insulation and durability under harsh conditions. Solder termination with solder tabs for increased PCB retention. Suitable for industrial, medical, business, and consumer electronics use. No additional installation tooling required.
Explore EnvMart for more electronic connectors and FPC Connector solutions from trusted brands like TE Connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a voltage rating of 125V AC.
This model has a current rating of 1 Amp.
The pitch size is 1 mm.
It features 20 contacts arranged in a single row.
The housing is constructed from nylon, providing insulation and mechanical stability.
It uses a solder termination type with solder tabs for enhanced PCB retention.
It operates reliably within a temperature range of -20°C to 85°C.
This connector has a straight orientation.
It features a Zero Insertion Force (ZIF) slide lock actuator for easy and secure cable insertion.
It is suitable for industrial, medical, business equipment, set-top boxes, and PC peripherals applications.
The contacts are made of phosphor bronze and are plated with tin over nickel for durability.
No additional application tooling is required for installation of this connector.
