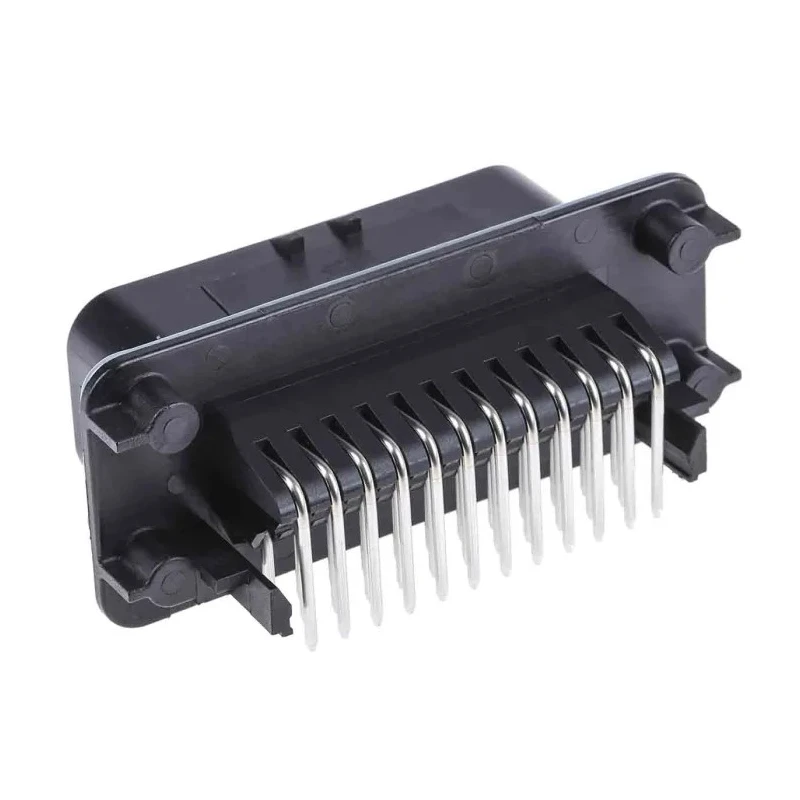

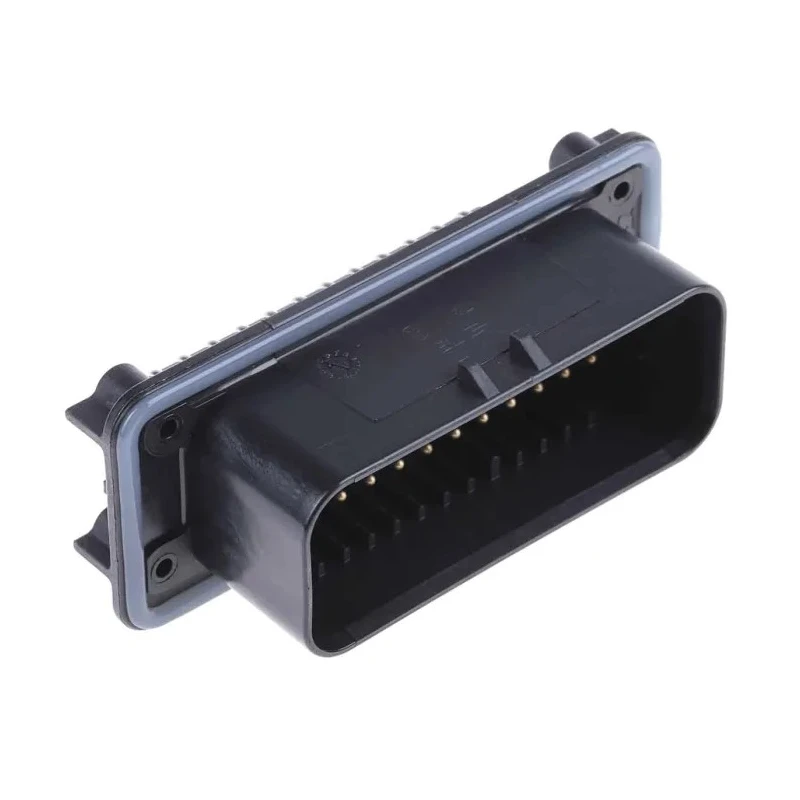

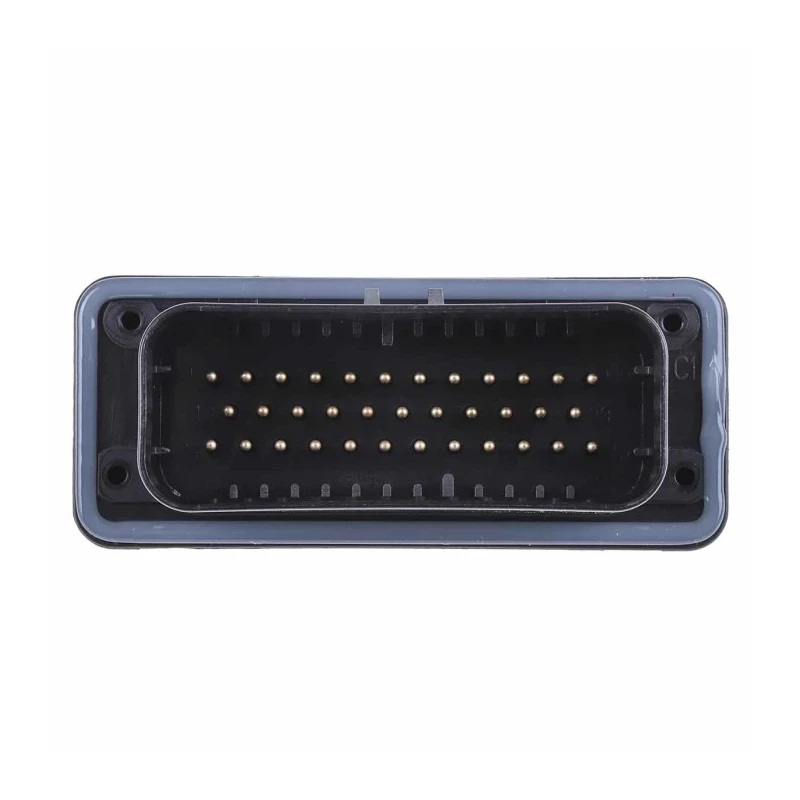

TE Connectivity Ampseal Automotive Connector Male 35 Way Black Through Hole Solder Termination 17A 125°C 1-776163-1
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 1.3mm |
| Brand | TE Connectivity |
| Colour | Black |
| Current | 17A |
| Height | 32.1mm |
| Depth | 37.9mm |
| IP Rating | IP6K9K |
| Width | 76.9mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Ampseal |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Power Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Contact Plating | Gold |
| Number of Contacts | 35 |
Key Features
- The connector uses a solder termination type ensuring reliable electrical connection.
- It comes in a black color with a through-hole mount suitable for PCB assembly.
- The housing is made from polybutylene terephthalate, providing durability and high performance.
- It is rated IP6K9K, offering superior protection against dust and high-pressure water jets.
- Operating temperature ranges from -40°C to 125°C, suitable for harsh automotive and industrial environments.
- Contact material is brass plated with gold for enhanced conductivity and corrosion resistance.
- Designed with three rows of contacts, each 1.3 mm in diameter for efficient power transmission.
- Ideal for use in trucks, buses, construction, agricultural, marine, and emergency service vehicles.
Product Description
TE Connectivity 1-776163-1 Ampseal automotive connector male is a high reliability power connector designed for demanding automotive and industrial applications with operating temperatures from -40°C to 125°C. It features 35 contacts arranged in three rows with solder terminations, mounted through hole on PCBs.
The connector is constructed with a durable polybutylene terephthalate housing and brass contacts plated with gold for optimal conductivity and corrosion resistance. With an IP6K9K rating, it offers excellent protection against dust ingress and high-pressure, high-temperature water jets, making it suitable for rugged environments with exposure to vibration, shock, and harsh conditions.
This connector supports a current rating of 17A at 250 VAC, making it ideal for power distribution in automotive sectors including trucks, buses, construction machinery, agricultural vehicles, marine vessels, and emergency service vehicles. The sealing with silicone rubber also provides superior insulation resistance and environmental protection.
The compact dimensions of 76.9 mm width, 37.9 mm depth, and 32.1 mm height make integration into various assemblies straightforward. The connector features solder terminations ensuring reliable and secure electrical connections.
Its rugged design ensures superior performance under harsh vibration and shock conditions. Offers exceptional operating temperature range from -40°C to 125°C for versatile usage scenarios. IP6K9K certified for highest degree of dust and water ingress protection.
Brass contacts with gold plating provide excellent electrical performance over long service life. Through-hole mounting enables sturdy PCB attachment for industrial usage. Widely used in automotive and industrial sectors including off-road and emergency applications.
TE Connectivity AMPSEAL series connectors are built for durability and reliability in challenging environments and are well suited for industrial, automotive, and commercial assembly needs.
Discover more Automotive Connectors and electronics components available through EnvMart for your industrial and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 17A at 250 VAC, making it suitable for power distribution in automotive applications.
It operates effectively within a temperature range of -40°C to 125°C, allowing for use in harsh automotive and industrial environments.
The connector is rated IP6K9K, providing excellent protection against dust ingress and high-pressure water jets.
This model features a total of 35 contacts arranged in three rows, each with a diameter of 1.3 mm.
It utilizes a solder termination type, ensuring reliable and secure electrical connections.
The housing is made from polybutylene terephthalate, and the contacts are brass plated with gold for enhanced conductivity and corrosion resistance.
The connector has dimensions of 76.9 mm in width, 37.9 mm in depth, and 32.1 mm in height.
It features a through-hole mount, making it suitable for PCB assembly.
It is designed for use in trucks, buses, construction machinery, agricultural vehicles, marine vessels, and emergency service vehicles.
The connector includes sealing with silicone rubber, offering superior insulation resistance and environmental protection.
Gold plating on the brass contacts enhances electrical performance and provides resistance to corrosion, ensuring a longer service life.
The connector is manufactured in India.
