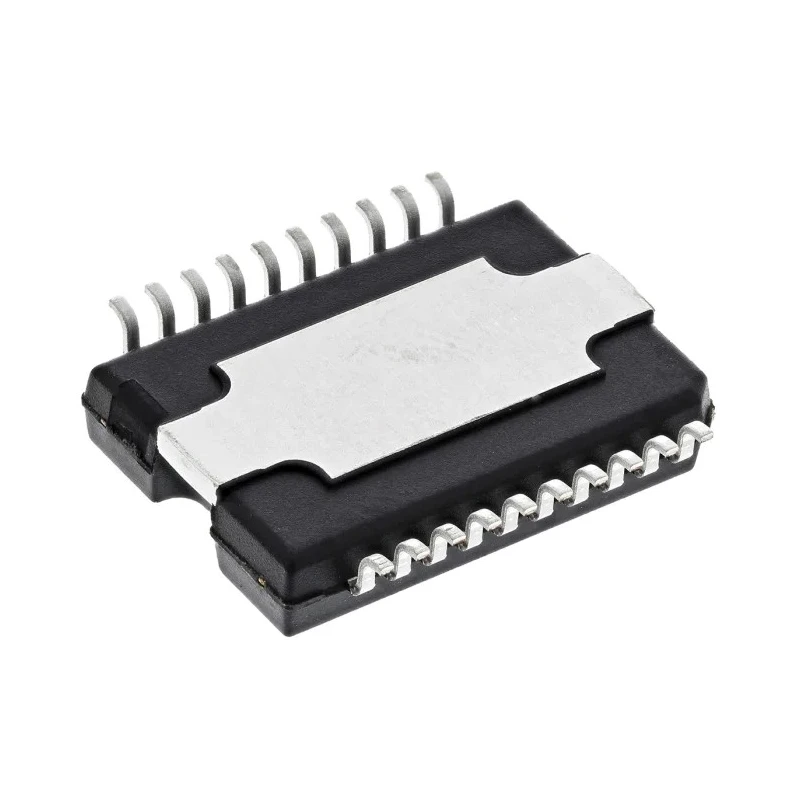

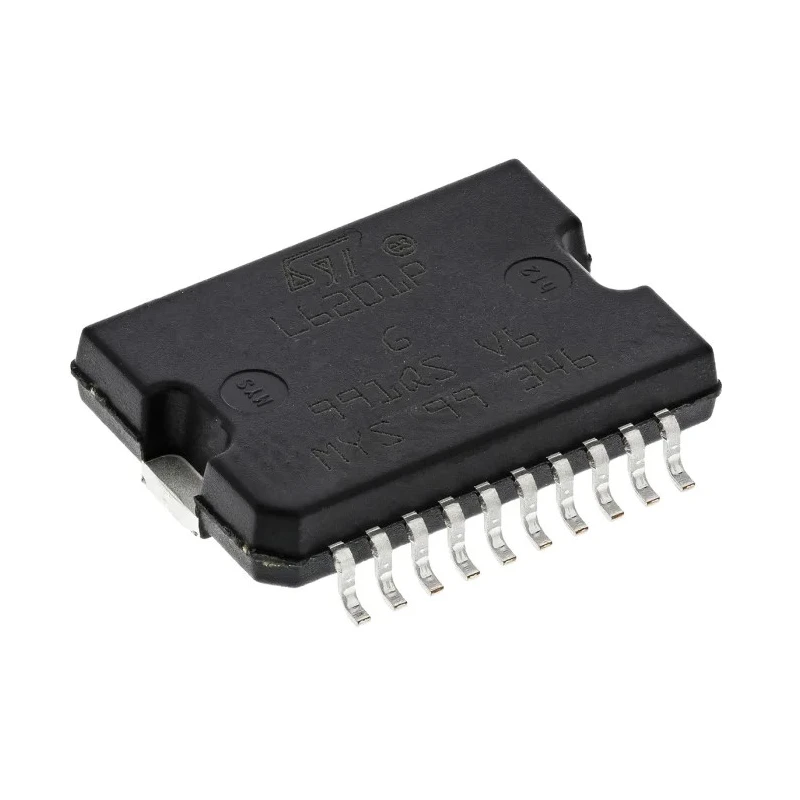

STMicroelectronics Brushed DC Motor Driver IC Full Bridge 48 V 4 A PowerSO 20-Pin L6201PSTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 3.3mm |
| Length | 16mm |
| Model | L6201PSTR |
| Width | 11.1mm |
| Motor Type | Brushed DC Motor |
| Mount Type | Surface |
| Series | L6201 |
| Configuration | Full Bridge |
| Output Current | 4A |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerSO |
| Minimum Operating Temperature | -40°C |
| Pin Count | 20 |
| Maximum Collector Emitter Voltage Vceo | 48V |
| Maximum Supply Voltage | 48V |
| Minimum Supply Voltage | 12V |
| Supply Current | 30μA |
| Maximum IGBT Collector Current | 4A |
| Typical Switching Frequency | 100kHz |
| Inverter Power Rating | 20W |
Key Features
- Supports brushed DC motors with full bridge motor control configuration.
- Maximum collector emitter voltage of 48 V ensures high voltage tolerance.
- Output current up to 4 A supports moderate power motor applications.
- Surface mount PowerSO package with 20 pins for easy PCB integration.
- Operating temperature range from -40°C to 150°C supports harsh environments.
- Typical switching frequency of 100 kHz for efficient motor control.
- Supply voltage range from 12 V to 48 V for flexible power supply options.
- Low supply current of 30 μA minimizes power consumption at idle.
Product Description
STMicroelectronics L6201PSTR is a high-performance brushed DC motor driver IC optimized for controlling motors in industrial, robotics, HVAC, and automation systems. It features a full bridge configuration allowing bidirectional control and operation under supply voltages from 12 V to 48 V. The device supports output currents up to 4 A, making it well suited for moderate-power motors in various applications.
Its PowerSO 20-pin surface mount package ensures compact footprint and ease of integration on printed circuit boards, meeting modern electronic design constraints. The integrated device operates efficiently at a typical switching frequency of 100 kHz, enhancing motor control precision and reducing electromagnetic interference.
The wide operating temperature range from -40°C to 150°C ensures robust operation even in demanding and harsh industrial environments. With a low supply current of only 30 μA in standby, the L6201PSTR provides energy-efficient operation, suitable for battery-powered and energy-conscious designs.
Its capability to interface with microcontrollers, digital signal processors, or FPGA units for logic command input makes it versatile for a wide range of motor control applications, including automation, robotics, and manufacturing systems.
Supports brushed DC motors with full bridge motor control configuration. Maximum collector emitter voltage of 48 V ensures high voltage tolerance. Output current up to 4 A supports moderate power motor applications. Surface mount PowerSO package with 20 pins for easy PCB integration.
Operating temperature range from -40°C to 150°C supports harsh environments. Typical switching frequency of 100 kHz for efficient motor control. Supply voltage range from 12 V to 48 V for flexible power supply options. Low supply current of 30 μA minimizes power consumption at idle.
Compact dimensions: 16 mm length, 11.1 mm width, and 3.3 mm height. Designed for motor and motion control with microcontrollers, DSPs, or FPGAs.
This motor driver IC is ideal for use in industrial electronics, laboratory equipment, robotics, automation, HVAC motor systems, and manufacturing equipment that require precise motor handling and control.
Explore more Motor Driver ICs at EnvMart for diverse applications across industries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum collector emitter voltage for this model is 48 V, ensuring high voltage tolerance for various applications.
It supports an output current of up to 4 A, making it suitable for moderate power motor applications.
This unit operates within a temperature range of -40°C to 150°C, allowing it to function in harsh environments.
The typical switching frequency is 100 kHz, which contributes to efficient motor control.
The dimensions are 16 mm in length, 11.1 mm in width, and 3.3 mm in height, making it compact for PCB integration.
It is designed to support brushed DC motors with a full bridge motor control configuration.
The supply voltage range is from 12 V to 48 V, providing flexibility in power supply options.
It comes in a PowerSO package type with 20 pins, facilitating easy surface mount integration.
The supply current at idle is 30 μA, which helps minimize power consumption.
This model is suitable for applications in industrial electronics, robotics, HVAC systems, and automation.
It can interface with microcontrollers, digital signal processors, or FPGA units for logic command input, enhancing its versatility.
The maximum IGBT collector current is also 4 A, aligning with its output current capacity.
