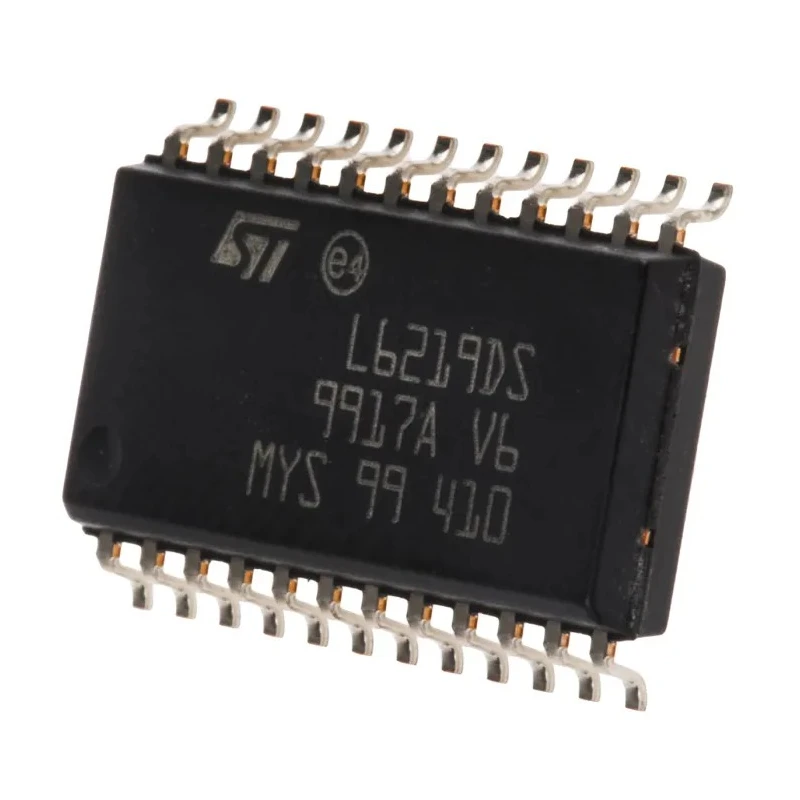

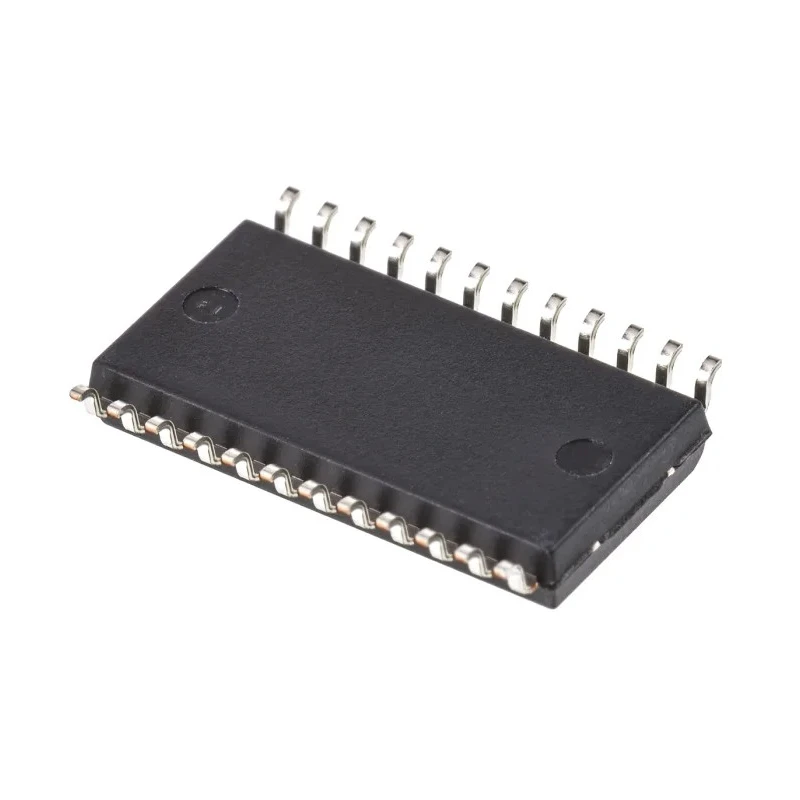

STMicroelectronics Stepper Motor Driver IC 46 V 750 mA 24-Pin SOIC E-L6219DS
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.35mm |
| Length | 15.6mm |
| Model | E-L6219DS |
| Width | 7.6mm |
| Motor Type | Stepper |
| Mount Type | Surface |
| Series | L6219DS |
| Configuration | Bipolar |
| Output Current | 750mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -20°C |
| Pin Count | 24 |
| Maximum Collector Emitter Voltage Vceo | 46V |
| Maximum Supply Voltage | 46V |
| Minimum Supply Voltage | 10V |
| Supply Current | 17mA |
| Maximum IGBT Collector Current | 750mA |
Key Features
- Supports bipolar configuration for precise stepper motor control.
- Maximum IGBT collector current of 750mA ensures efficient motor driving.
- Operates within a supply voltage range of 10V to 46V.
- Compact SOIC 24-pin surface mount package with dimensions 15.6mm x 7.6mm x 2.35mm.
- Operating temperature range from -20°C to 85°C for reliable industrial use.
- Low supply current consumption of 17mA reduces overall power usage.
- Designed without automotive standards, suited for general electronic applications.
Product Description
STMicroelectronics E-L6219DS is a high-performance Stepper Motor Driver IC tailored for bipolar stepper motor applications. Housed in a compact 24-pin SOIC surface mount package with dimensions of 15.6mm length, 7.6mm width, and 2.35mm height, this device offers robust motor control capabilities suitable for industrial and electronic manufacturing environments.
The device supports a maximum collector emitter voltage of 46V and a collector current of up to 750mA, making it ideal for moderately powered stepper motors. It operates efficiently over a broad supply voltage range from 10V to 46V and maintains low supply current consumption of 17mA, contributing to energy-efficient solutions.
With an operating temperature range from -20°C to 85°C, the E-L6219DS is designed to withstand demanding conditions found in laboratory, industrial, and commercial equipment. Its bipolar configuration supports precise motor control, enabling improved production efficiency and reliable operation.
This motor driver IC is ideal for use in applications requiring accurate control of stepper motors such as robotic automation, CNC machines, and other precision motion control systems.
Supports bipolar stepper motor configuration for enhanced performance. Output current rating of 750mA accommodates a wide range of motors. Robust voltage handling up to 46V ensures versatile power supply options. Compact SOIC package suitable for surface mount PCB assembly.
Wide ambient operating temperatures for diverse industrial environments. Low power consumption optimizes system efficiency. Reliable operation in laboratory, industrial automation, and commercial motor control systems.
Choose the STMicroelectronics E-L6219DS Stepper Motor Driver IC for efficient and reliable stepper motor control solutions. Explore more products in the Motor Driver IC category at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for the E-L6219DS is 46V.
This model has an output current rating of 750mA, accommodating a wide range of stepper motors.
It operates within a supply voltage range of 10V to 46V.
The dimensions of this stepper motor driver IC are 15.6mm in length, 7.6mm in width, and 2.35mm in height.
This driver supports bipolar configuration for precise control of stepper motors.
The supply current consumption is 17mA, which helps to reduce overall power usage.
It has an operating temperature range from -20°C to 85°C, suitable for various industrial applications.
The E-L6219DS comes in a compact SOIC 24-pin surface mount package.
No, this model is designed without automotive standards and is suited for general electronic applications.
This stepper motor driver IC is ideal for applications such as robotic automation, CNC machines, and precision motion control systems.
The maximum collector emitter voltage for the E-L6219DS is 46V.
This model has a pin count of 24.
